Music is a piece of
art that goes in the ears straight to the heart, and the audio is designed to
bring music from art palace to our daily life by means of reproduction of
original sound. The KECES, founded in 2002, has been striving to remove
theambient noise from audio, and to make you enjoy the pure and crystal-clear
sound quality, just like live performance. We hope the KECES audio, through its
exquisite tunes and moving rhythm, can feast your ears, relax your mind, and
soothe your soul. KECES stands for our ultimate achievement in our pursuit of
perfection. Over a decade, KECES tirelessly innovates the mostcutting-edge
technology; has crucial know-how to produce key components to ensure the superb
quality of product.In our philosophy, KECES not only strives for excellent
acoustics, but also elegant design. We hope the KECES product is not only an
audio equipment pleasing to your ears, but also an artwork for your living space.
Our vision is to continually develop a full product line of audio equipment that
will meet the needs and taste of audiophiles nowadays. In addition, we will make
the high end Hi-Fi KECES audio as accessible as possible to every audiophile at
a reasonable and affordable price, as we want the Hi-Fi music to be an art
enjoyable and friendly at the same time.Life is a journey to be explored and
experienced, and we hope the music always accompany you on your journey.
.gif)

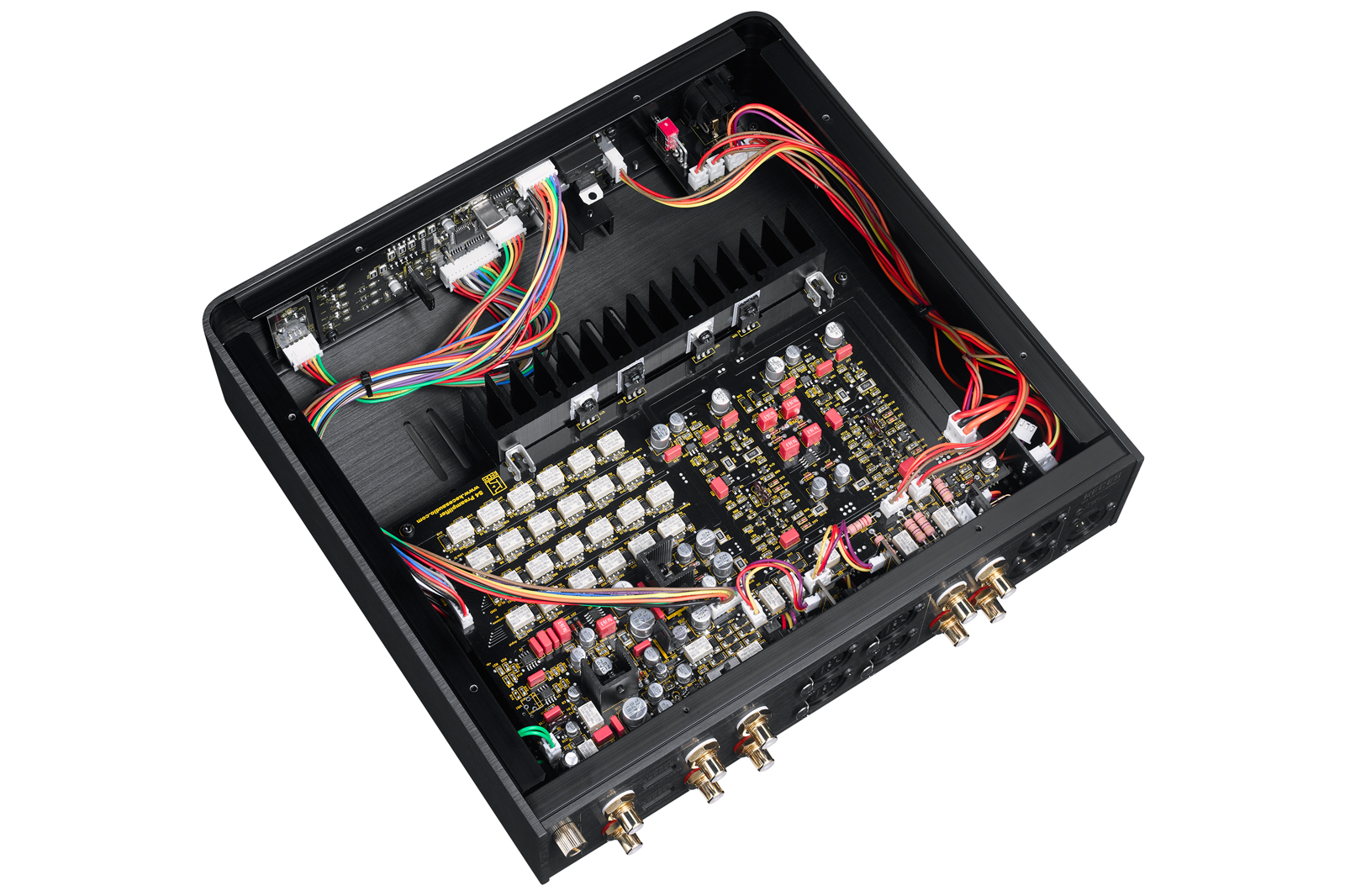

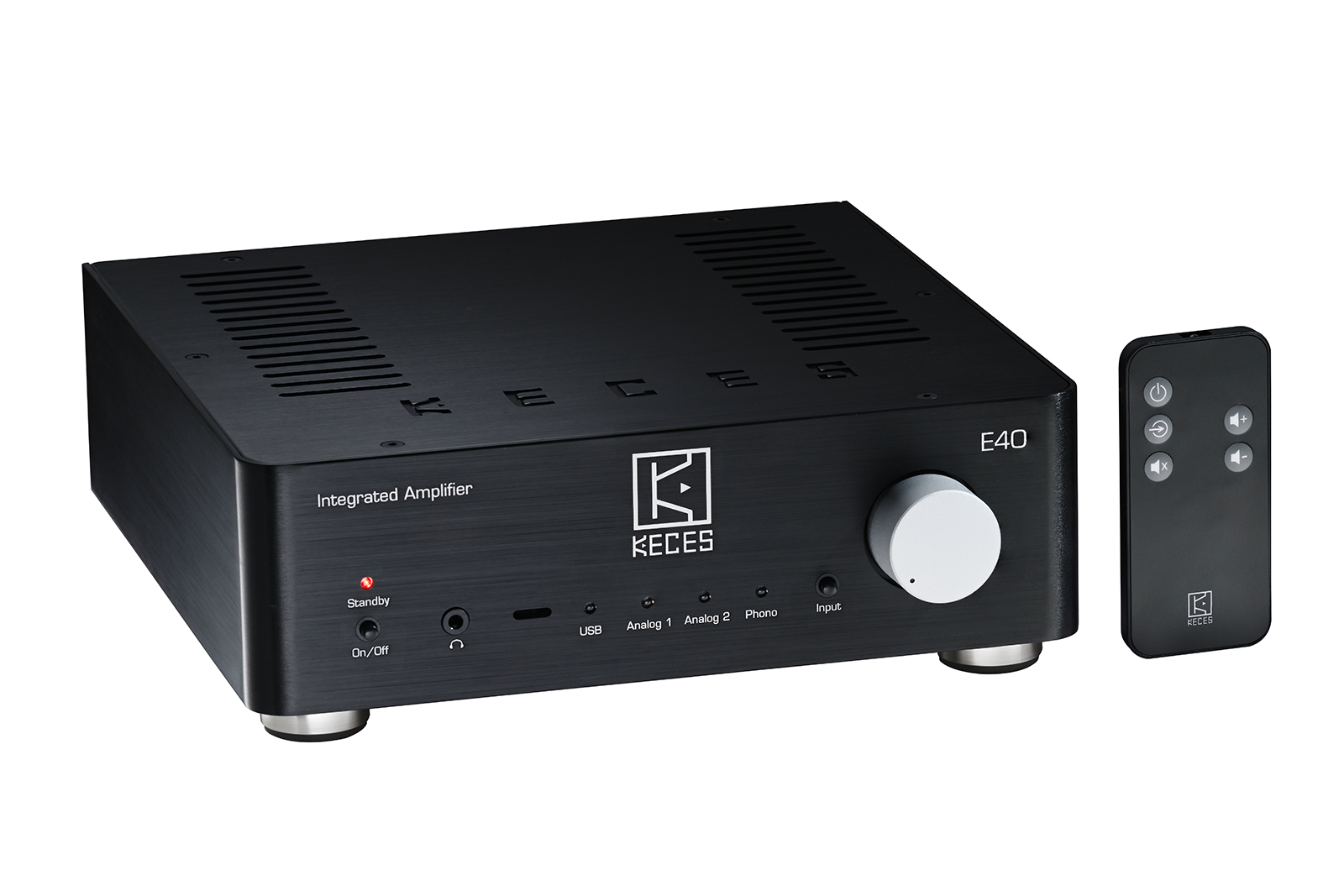

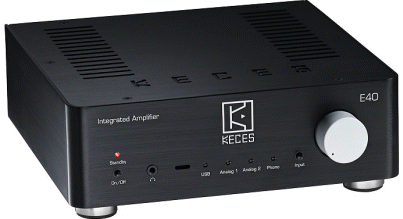

KECES

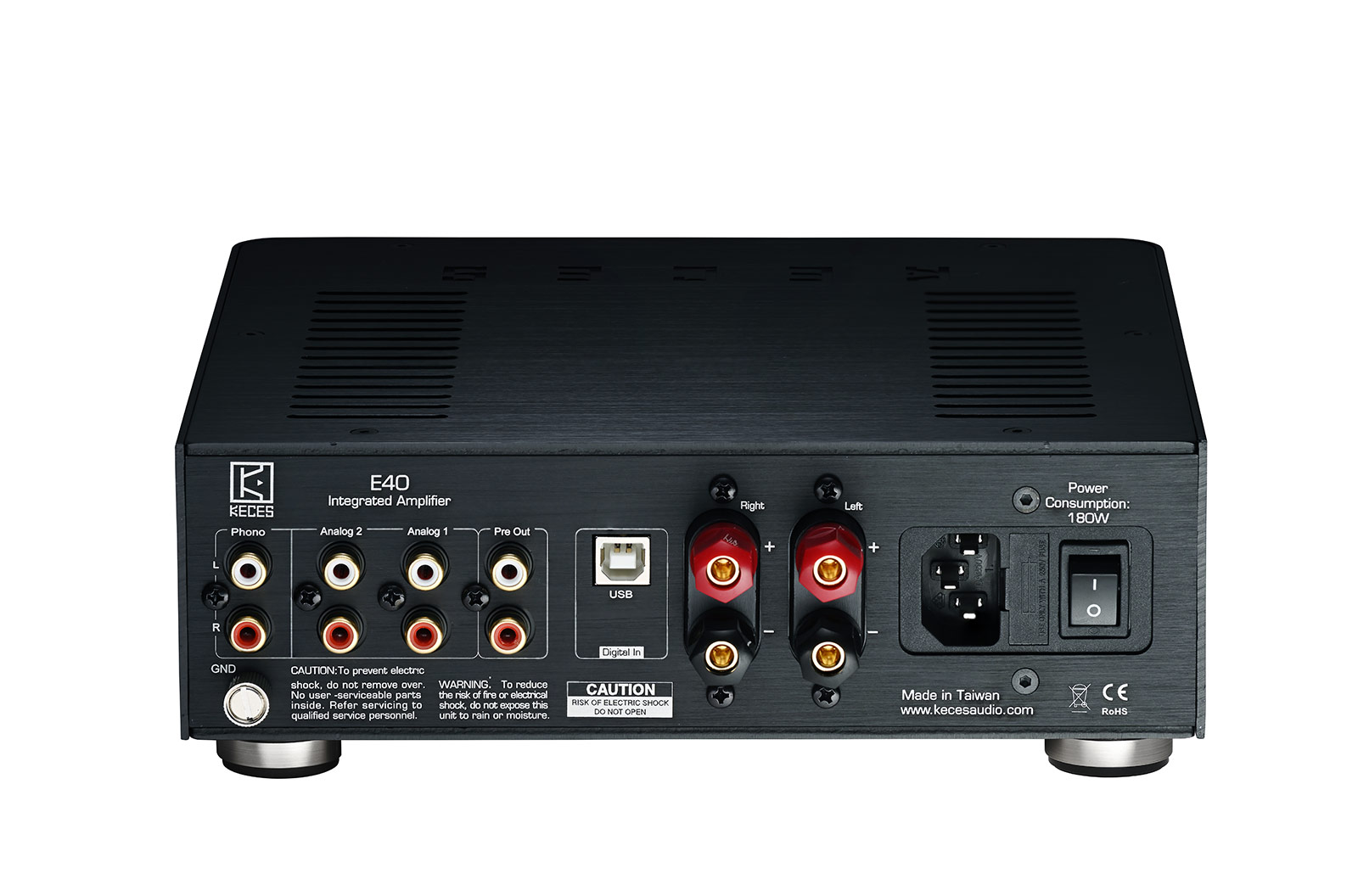

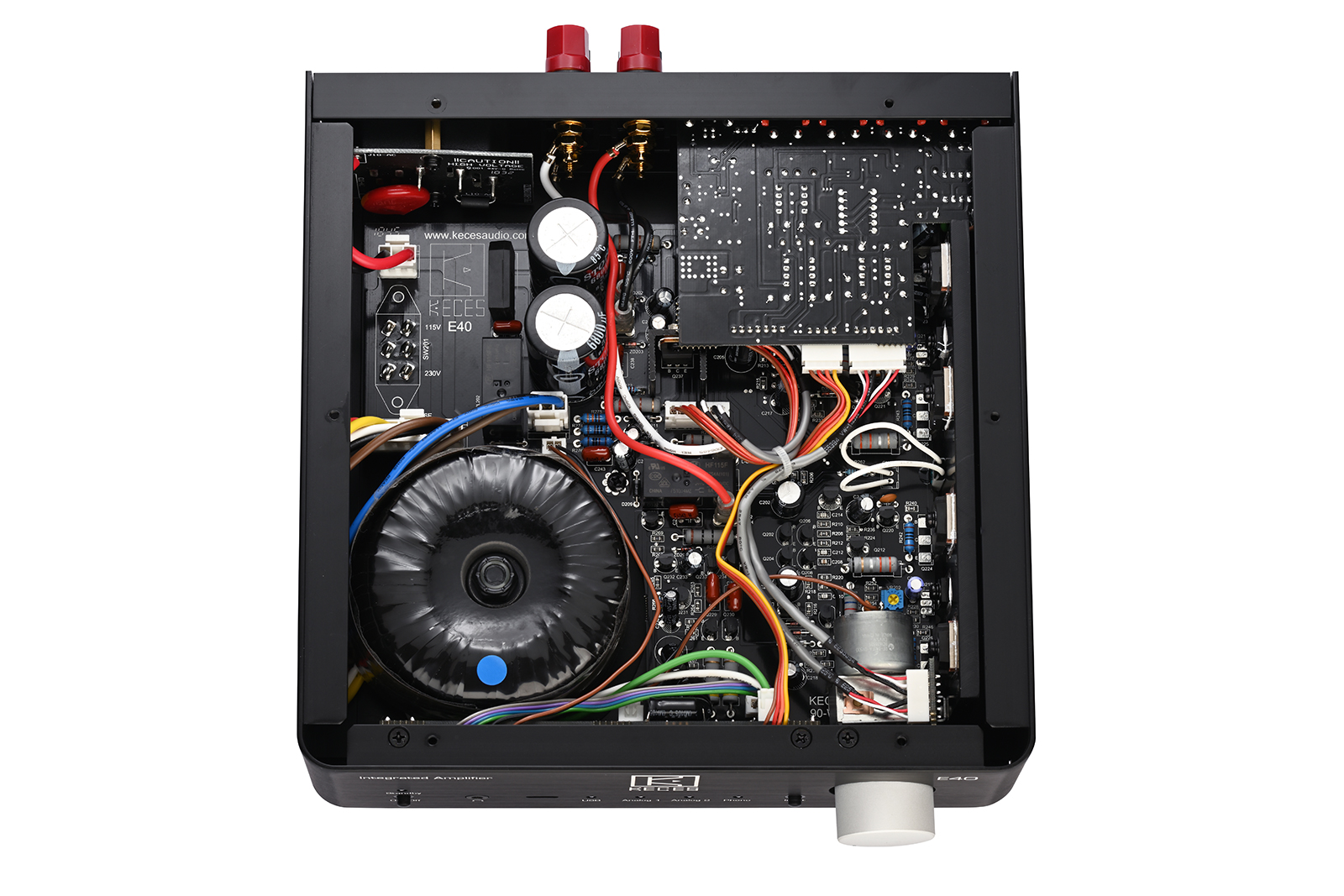

E40 Listino
ufficiale
€. 699,00
 50
watts per channel @ 8 Ohm. Asynchronous USB 2.0 supports PCM up to 48kHz/16-bit.
Phono input for MM with 47k ohm. 2 pairs RCA line level Analog inputs. Preamp
output for adding a subwoofer. Favorite volume memory with remote control button.
Superb sounding headphone jack. The 3mm thickness of the aluminum chassis to
effective to blocks EMI/RFI interference. The full-metal body realizes both
vibration control and elegant style in an half-size body that enables placement
on a desktop to be a PC HIFI system or to be a small stereo system.Power
Output 50W x2 @ 8ohm. 65W x2 @ 4ohm. Power Bandwidth 5Hz – 100kHz.
Total Harmonic Distortion (THD+N) <0.008% at 1kHz A-Weighting. Total
Harmonic Distortion (THD+N) for Phono MM <0.02% at 1kHz A-Weighting. S/N R
110dB A-Weighting. S/N R for Phono MM 82dB A-Weighting. Digital to Analog
Converter Supports PCM up to 48kHz/16-bit. AC Input Voltage 110V-120V,
60Hz / 220V-240V, 50Hz (Switchable). Power Consumption 180 Watts. Casing
3mm Aluminum. Dimension (WxDxH) 220x220x66mm. Weight 4KG.

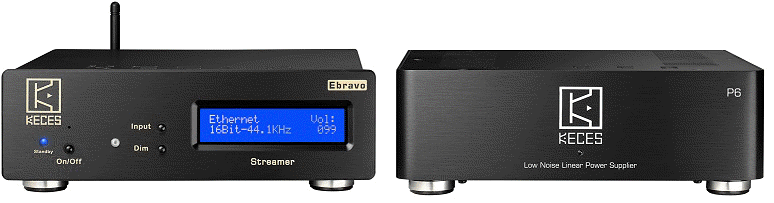

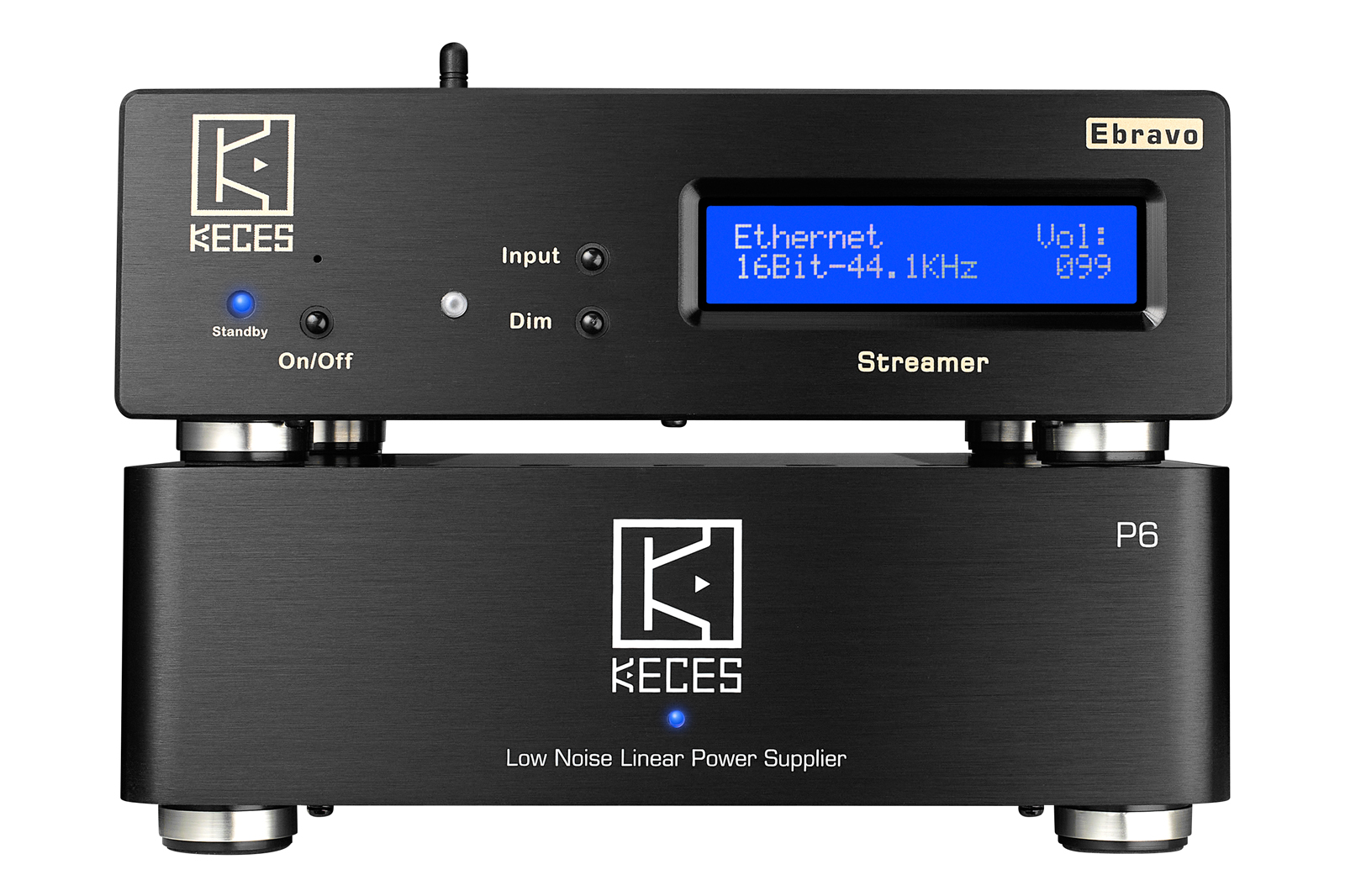

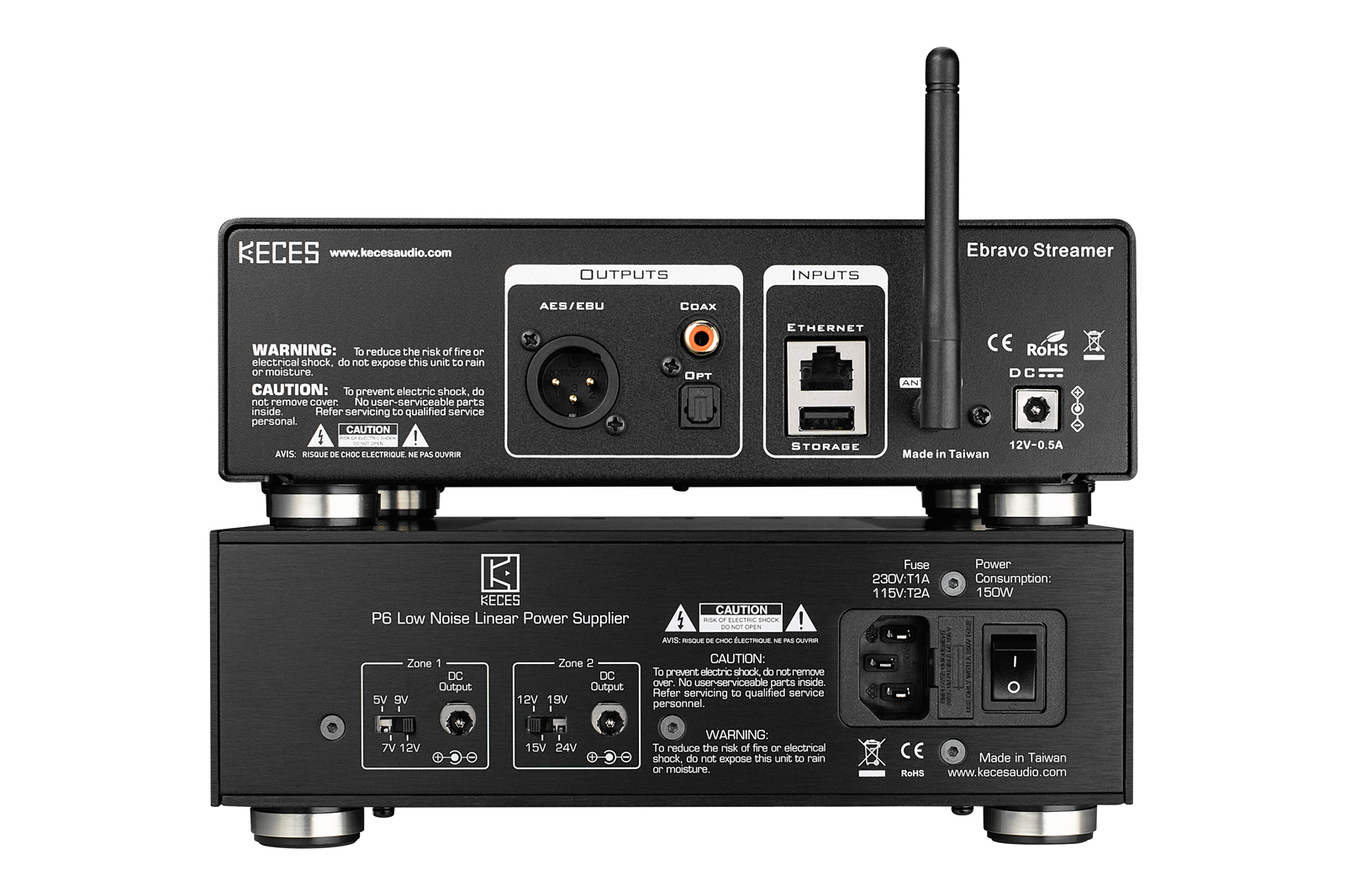

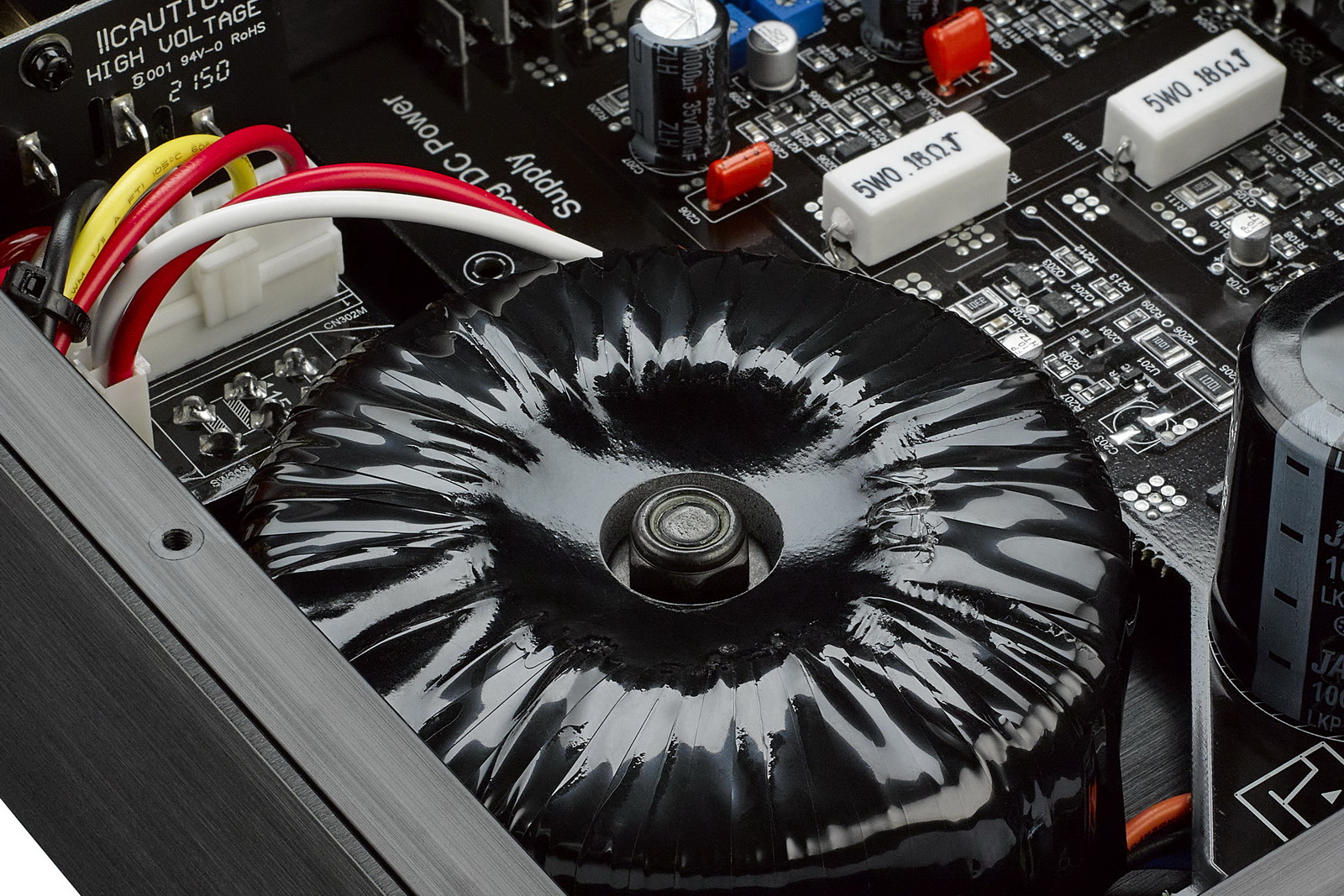

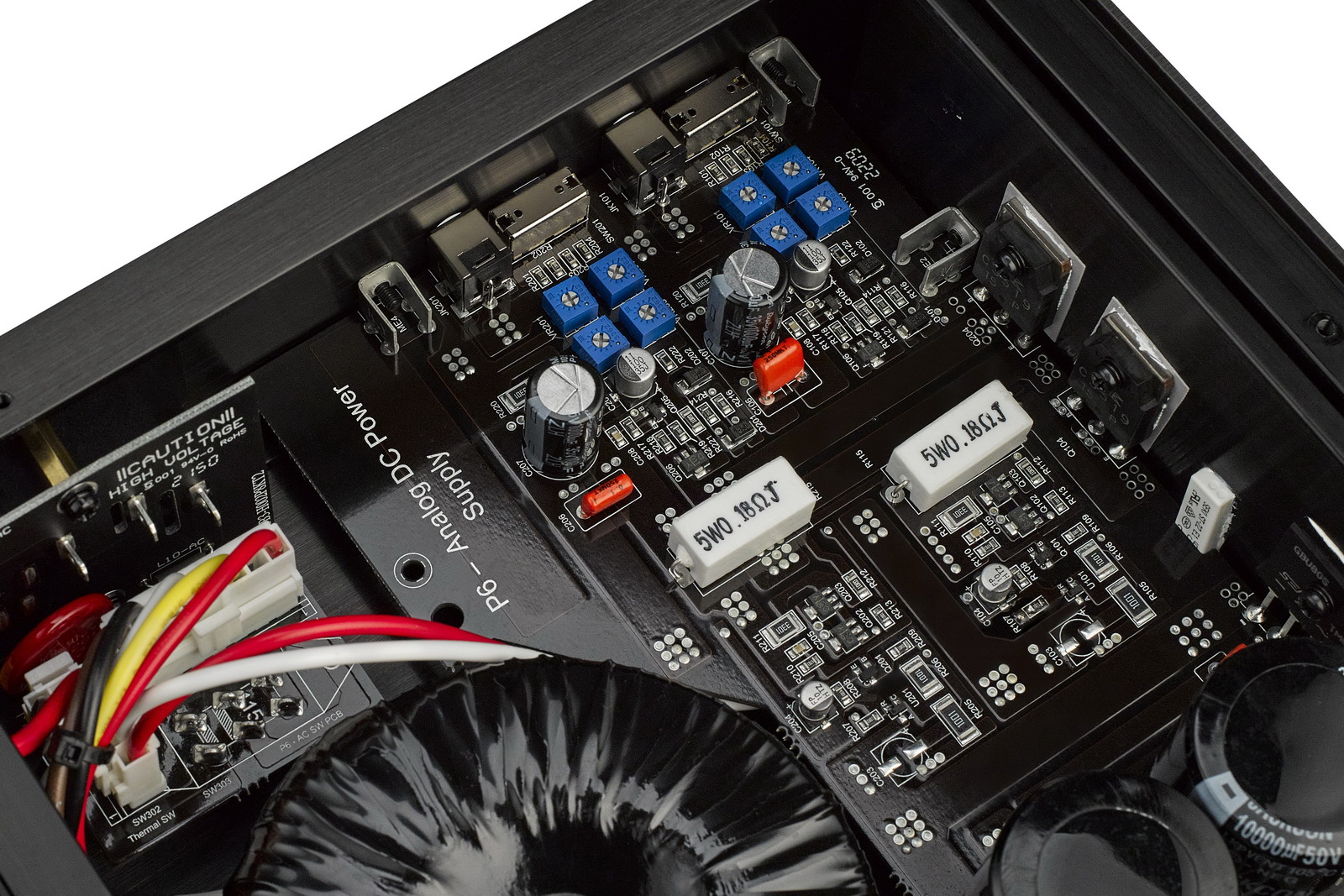

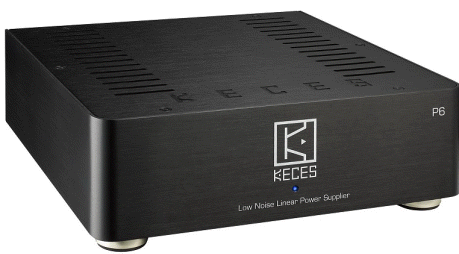

KECES

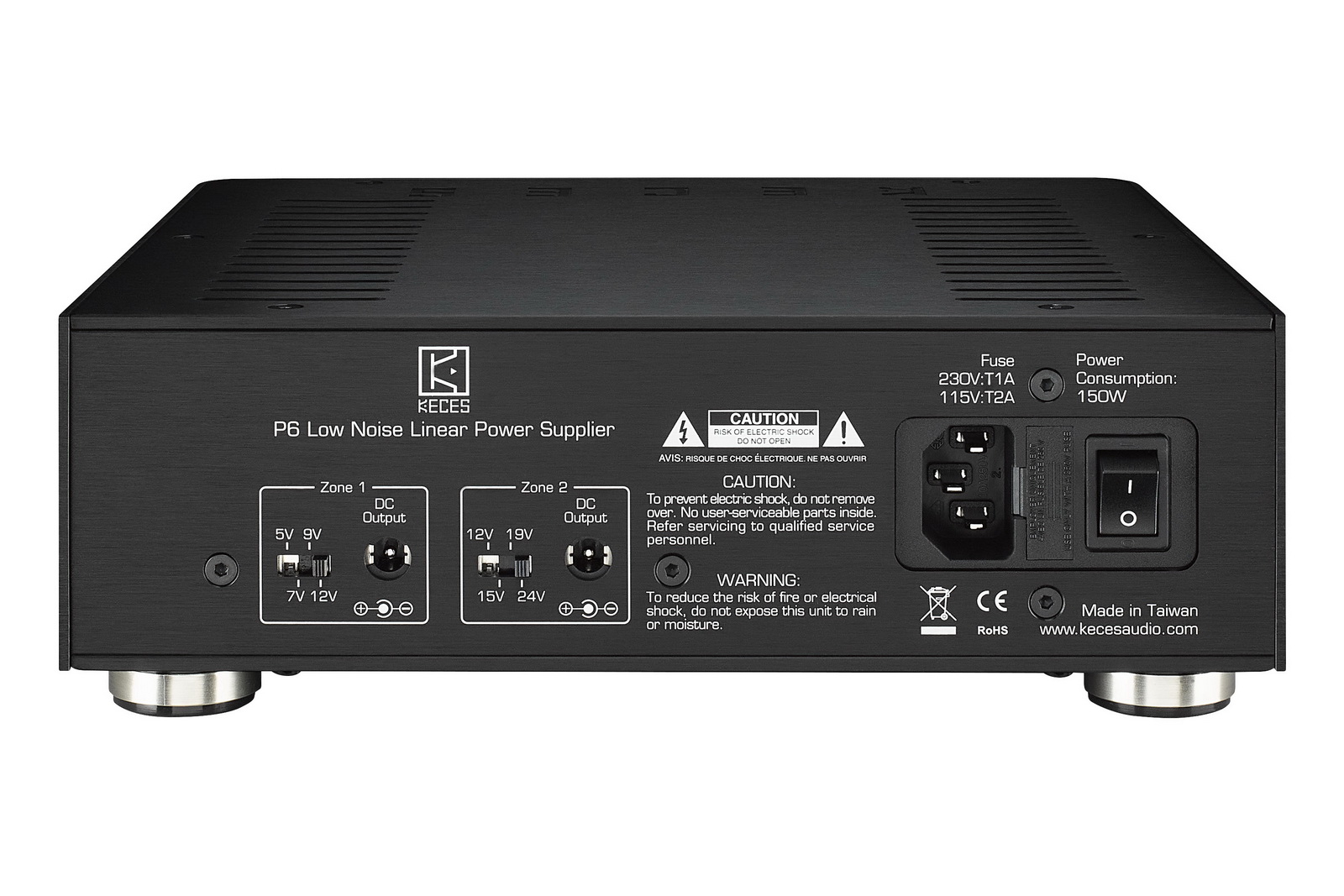

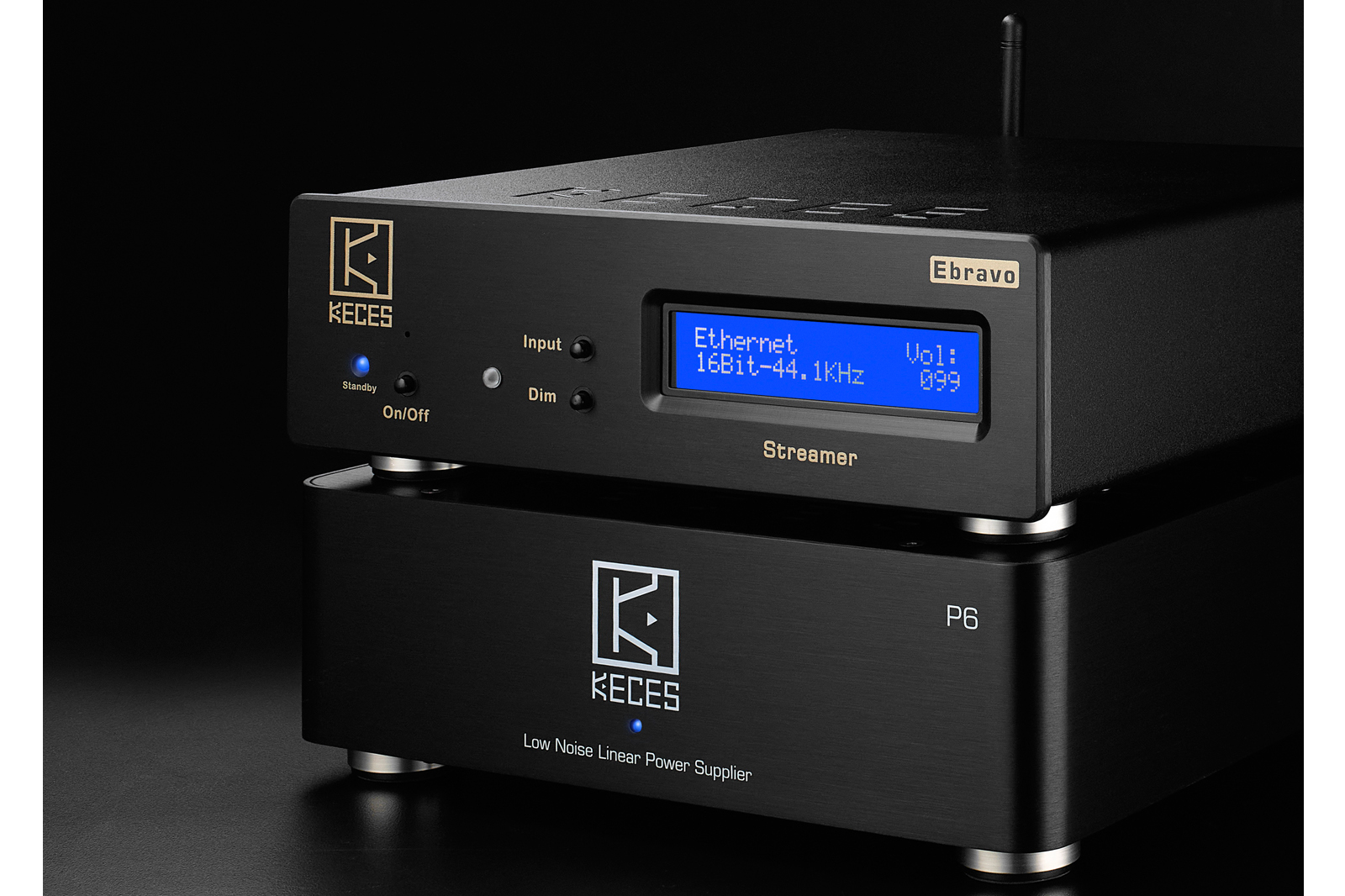

P6 Listino
ufficiale
€. 600,00
Il trasformatore toroidale di alta qualità fornisce
energia "pulita" Terreno separato per le 2 uscite Nessun ronzio a 50 Hz o carico
di picco nIndicatore LED Le uscite della doppia versione erogano ciascuna 3A
Protezione da surriscaldamento (OTP) L'alloggiamento interamente in alluminio di
3 mm di spessore garantisce la sicurezza dell'irraggiamento (HF / RF)
Doppia uscita 5V/7V/9V/12V+12V/15V/19V/24V
Spina cava DC 2,5 mm / 5,5 mm Tensione di ingresso 220V-240V, 50 MHz Max.
consumo energetico 120Watt (uscita a pieno carico) Case Alluminio massiccio da 3
mm Dimensioni (LxPxA) 220 x 220 x 66 millimetri Peso 3,5 kg
.gif)

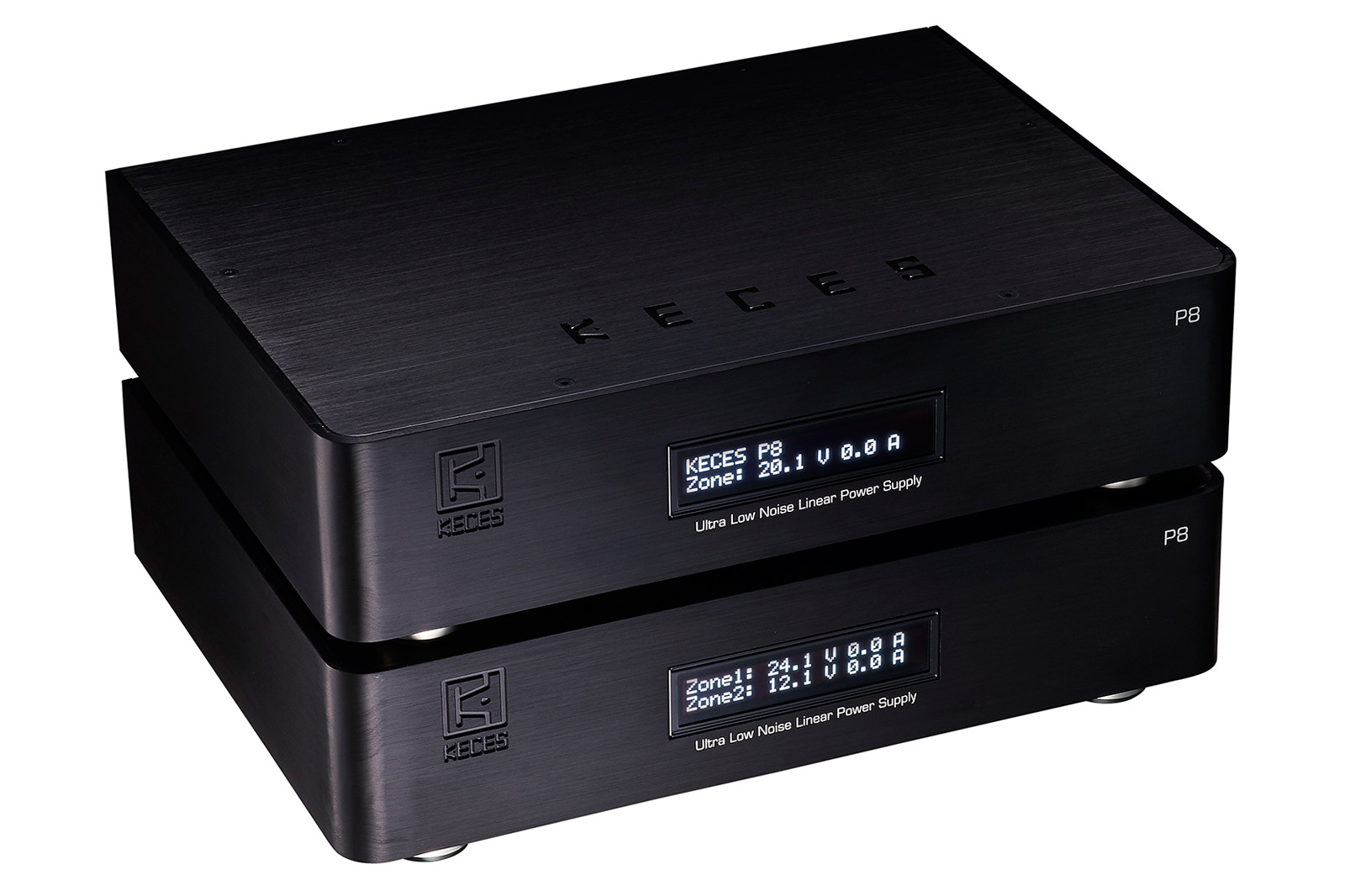

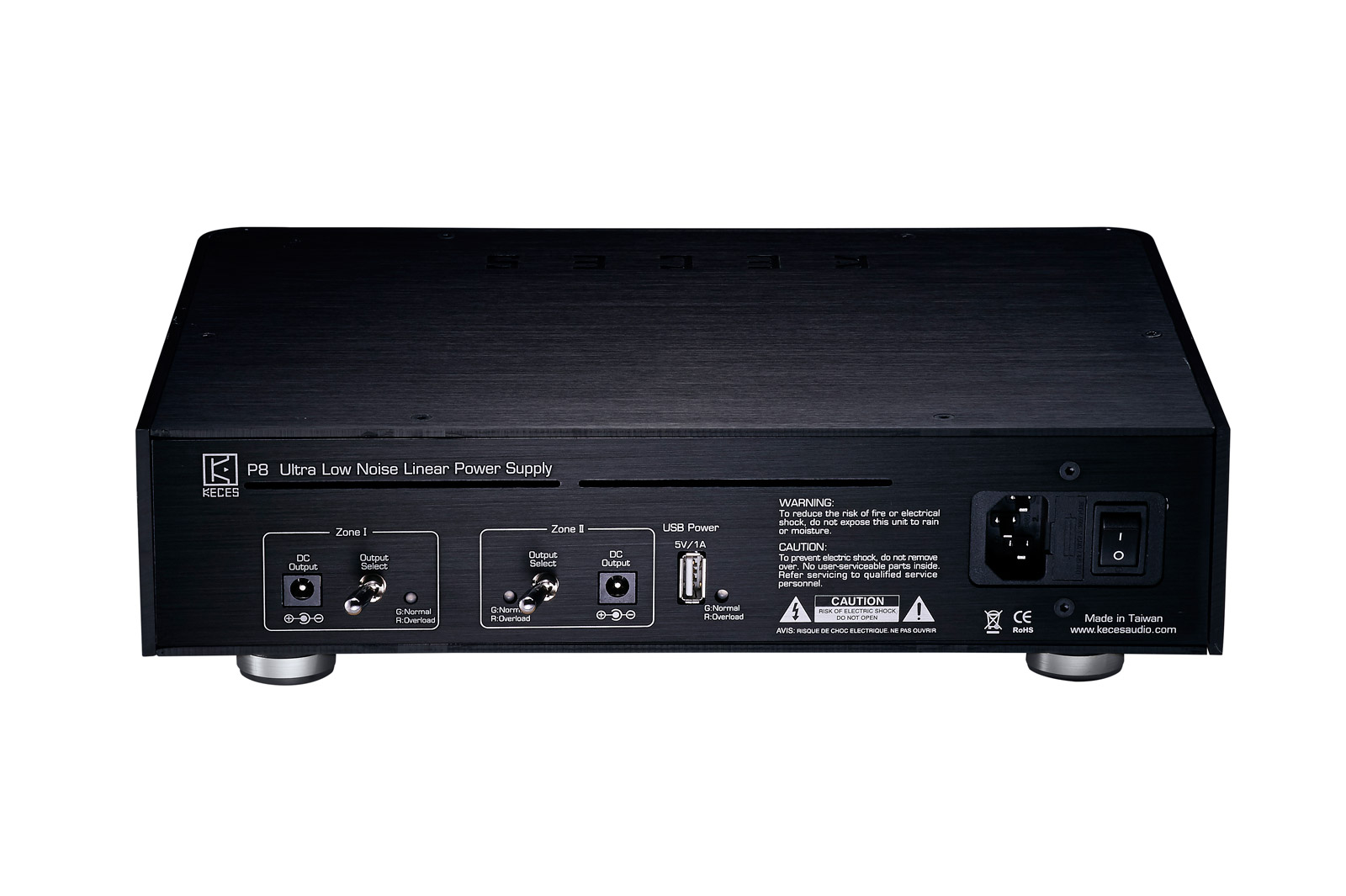

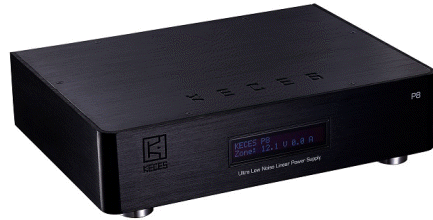

KECES

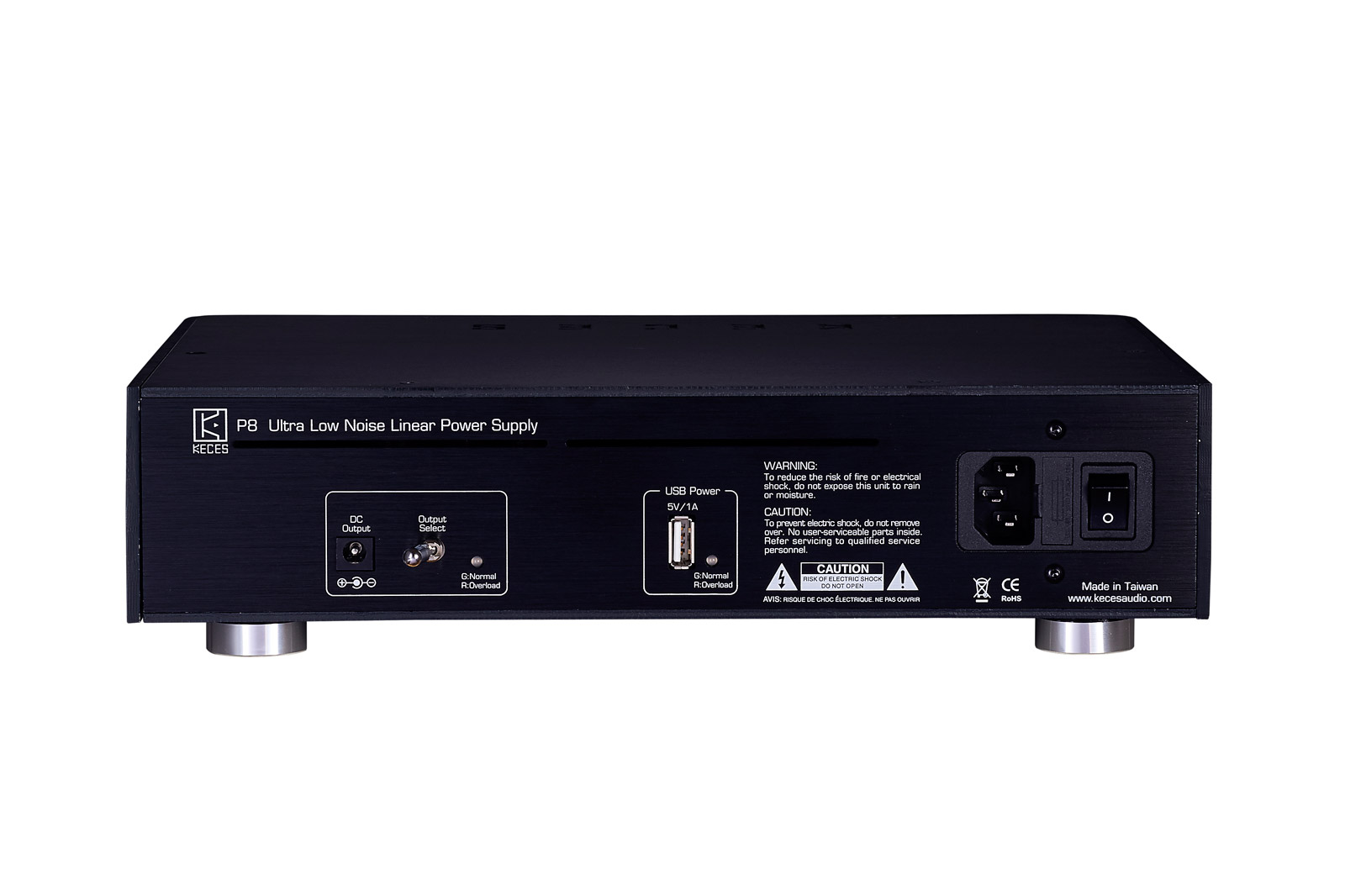

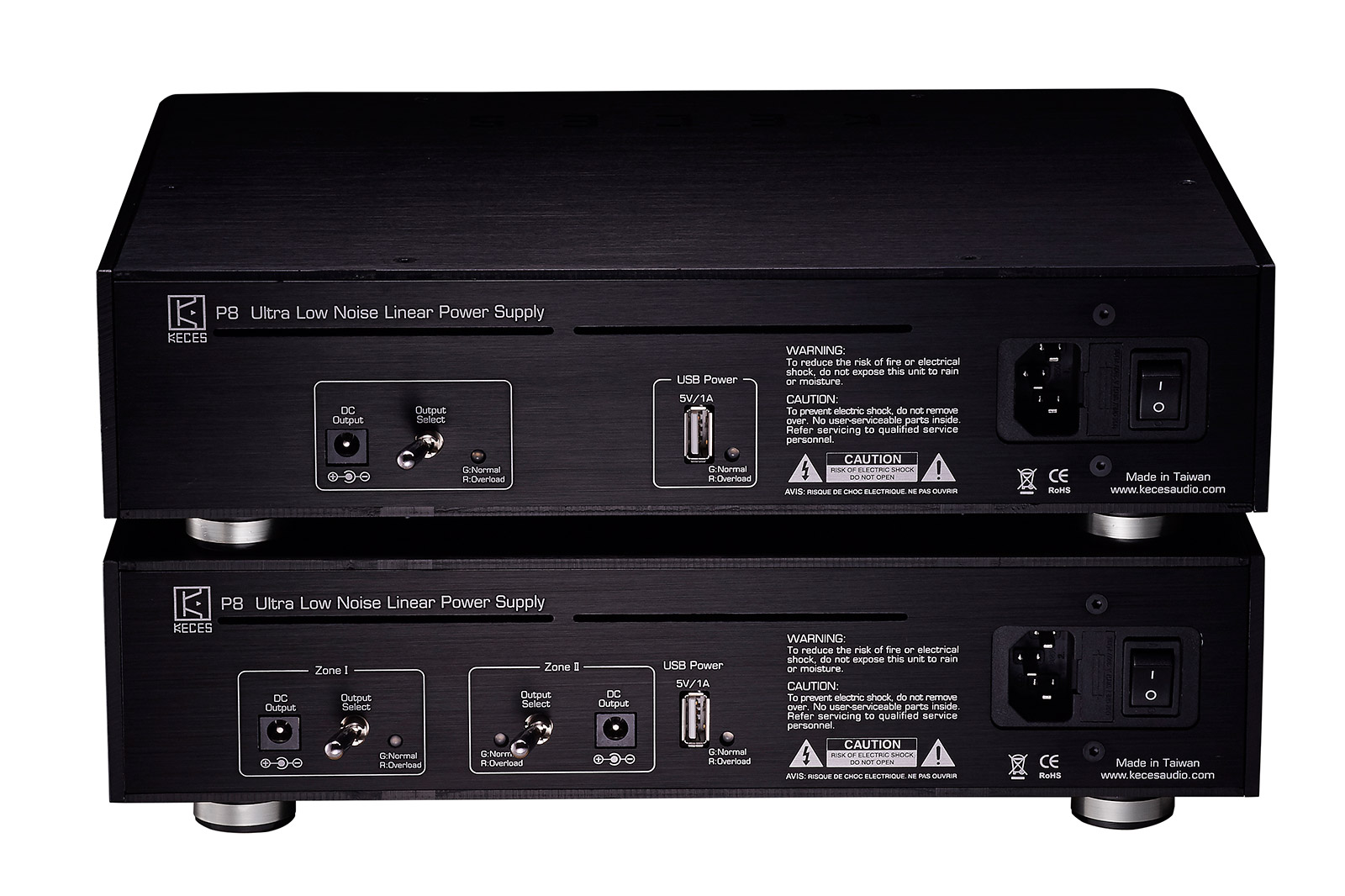

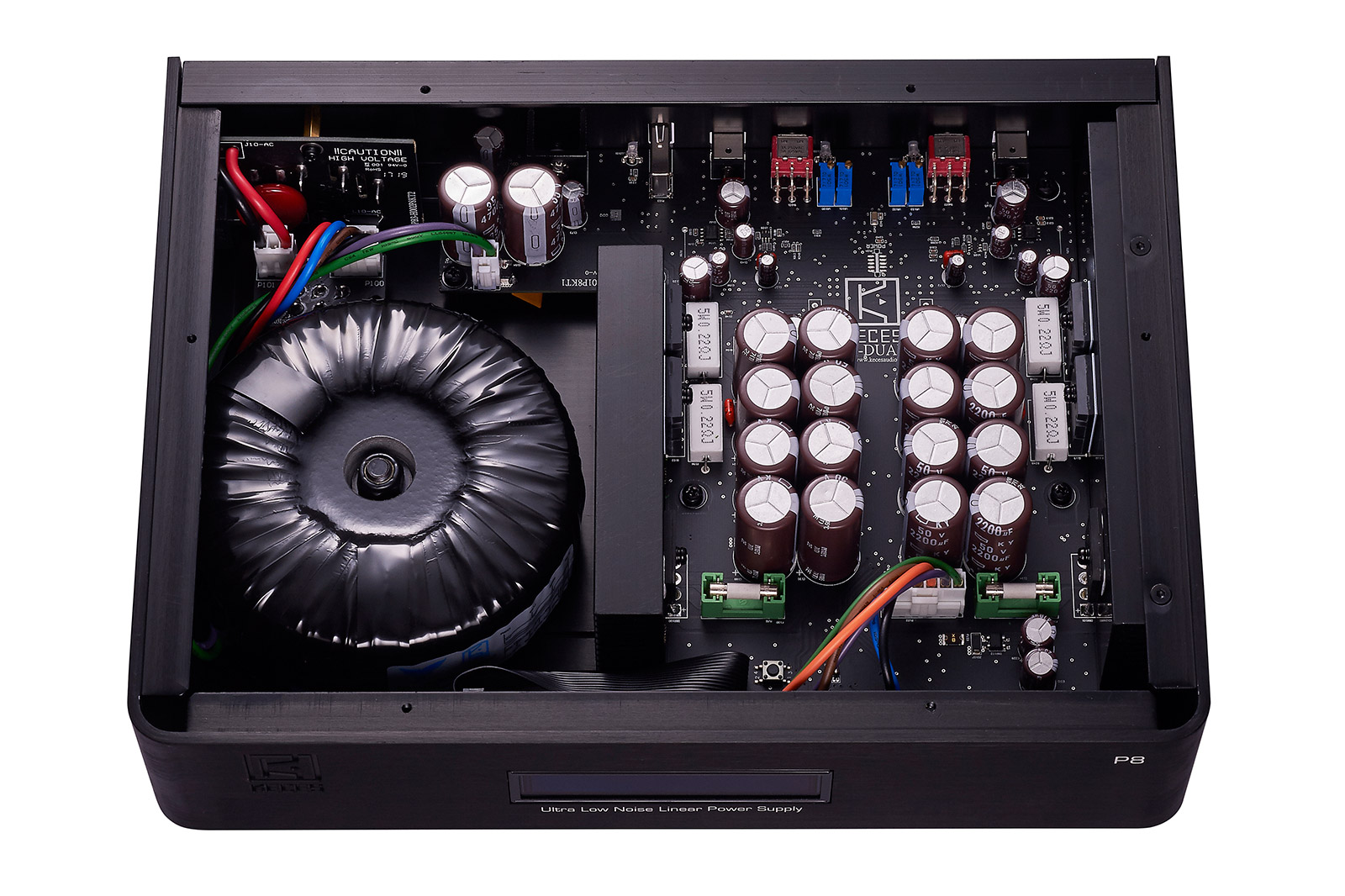

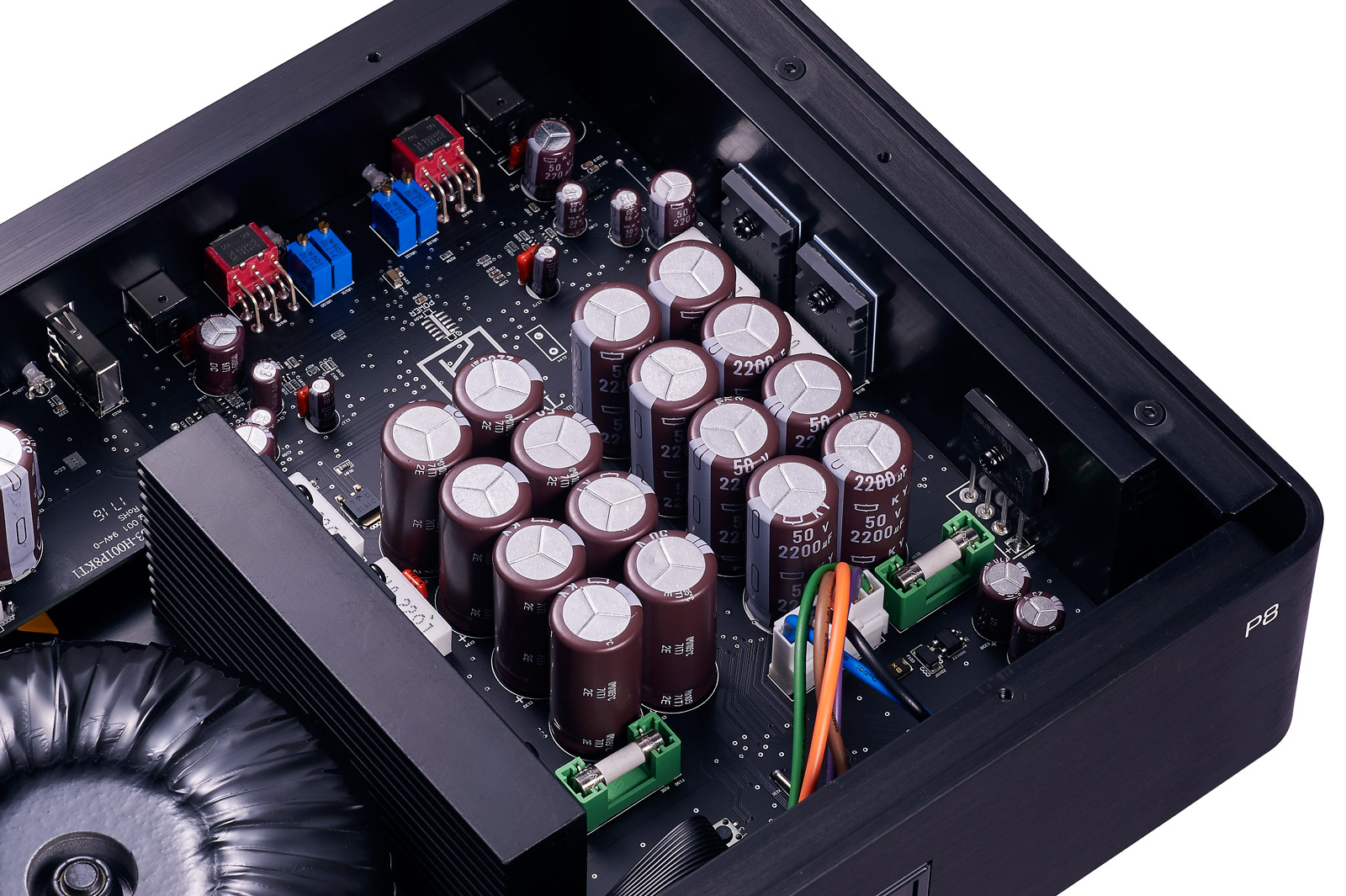

P8 MONO
DC /DUAL Listino
ufficiale
€. 800,00

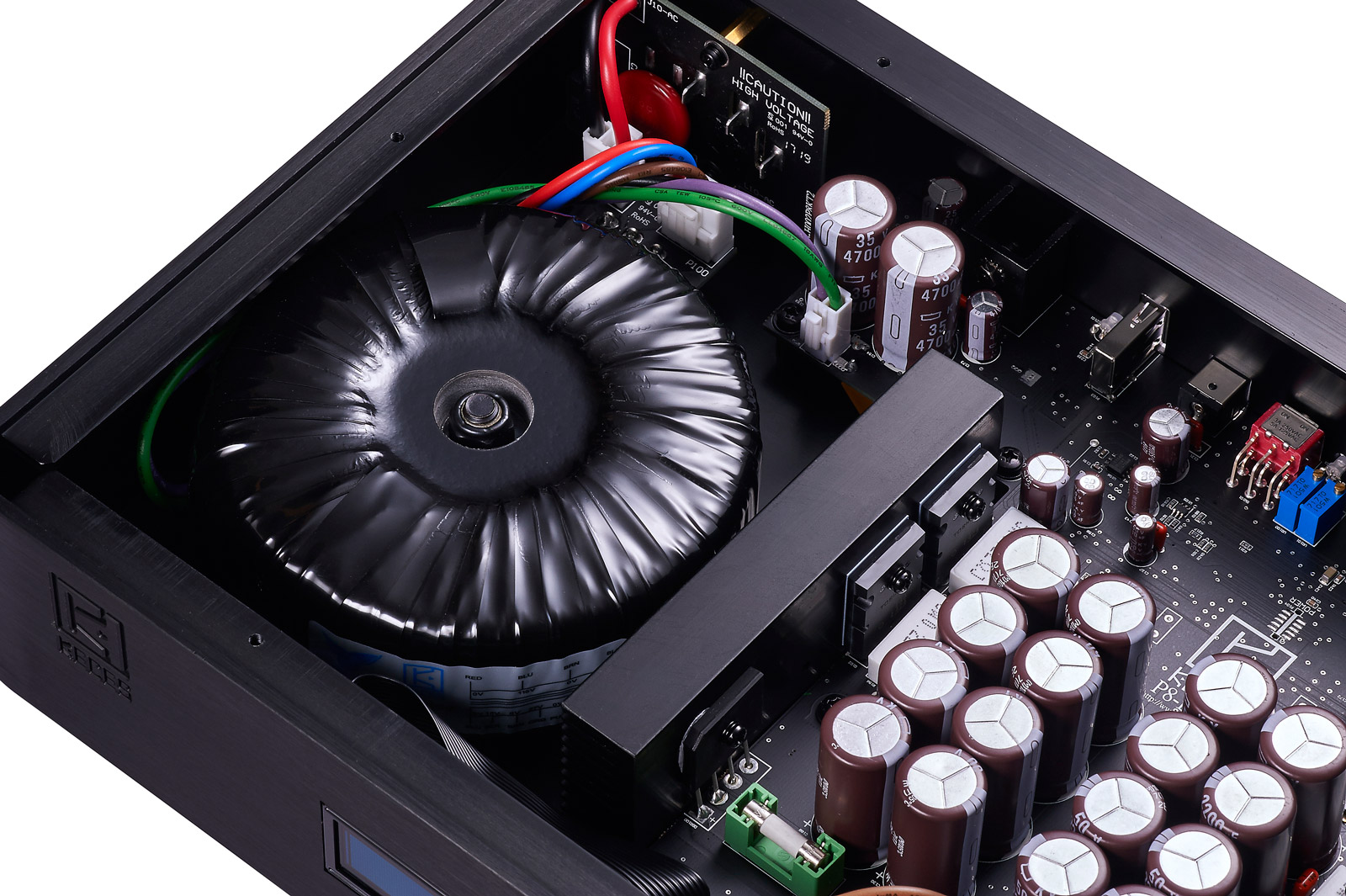

Il trasformatore toroidale di alta qualità fornisce
energia "pulita"
Messa a terra separata per tutte le 2 o 3 uscite
Nessun ronzio a 50 Hz o carico di picco
Il display OLED mostra contemporaneamente la tensione di uscita e la corrente di
uscita
Le uscite della doppia versione forniscono ciascuna 4A e un ulteriore 5V / 1A
all'uscita USB
L'uscita della versione mono fornisce 8A e un ulteriore 5V / 1A all'uscita USB
Protezione contro le sovratensioni (OVP)Protezione da sovraccarico (OCP)
Protezione da sottotensione (UVP)
Circuito di protezione della temperatura (OTP)
L'alloggiamento interamente in alluminio di 4 mm di spessore garantisce
la sicurezza dell'irradiazione (HF / RF)
High Quality Toroidal Transformer provide pure
power. Separate ground for each output rail. Ultra low ripple noise.No humming
or buzz noise for 50Hz and peak load. OLED display currently output voltage and
currently output ampere.USB Type A 5V output Dual output with USB output provide
4A for each with 1A USB output.Single output with USB output provide 8A with 1A
USB output. Over Voltage Protection (OVP). Over Current Protection (OCP). Under
Voltage Protection (UVP). Over Temperature Protection (OTP). The 4mm thickness
of the aluminum chassis to effective to blocks EMI/RFI
interference.Compatibility & DC output version Directly power DC 24V based phono
stage or for all audio device that run on DC 24V. Directly power DC 20V based
Laptop or for all audio device that run on DC 20V. Directly power DC 19V based
NUC, Thin ITX system and Laptop or for all audio device that run on DC 19V.
Directly power DC 18V based Pro-Ject products or for all audio device that run
on DC 18V. Directly power DC 15V based Alpha Design Labs products or for all
audio device that run on DC 15V. Directly power DC 12V based Mac Mini or for all
audio device that run on DC 12V. Directly power DC 9V based SOtM products or for
all audio device that run on DC 9V. Directly power DC 7V based SOtM products or
for all audio device that run on DC 7V. Directly power DC 5V based Squeezebox or
for audio device that run on DC 5V. USB Output provide DC 5V @1A. Directly power
DC5V based USB DAC.Dual Output with USB
Output 5V/7V + 9V/12V with USB Output. 9V/12V + 12V/15V with USB Output. 9V/12V
+ 18V/19V with USB Output. 9V/12V + 20V/24V with USB Output. Single Output with
USB Output 9V/12V with USB Output. 19V/20V with USB Output. DC Connector
2.5mm Barrel AC Input Voltage 110V-120V, 60Hz / 220V-240V, 50Hz (Switchable)
Power Consumption 200Watts (Full Load Output) Casing 4mm Aluminum
Dimension (WxDxH) 300x220x66mm Weight 6KG
.gif)

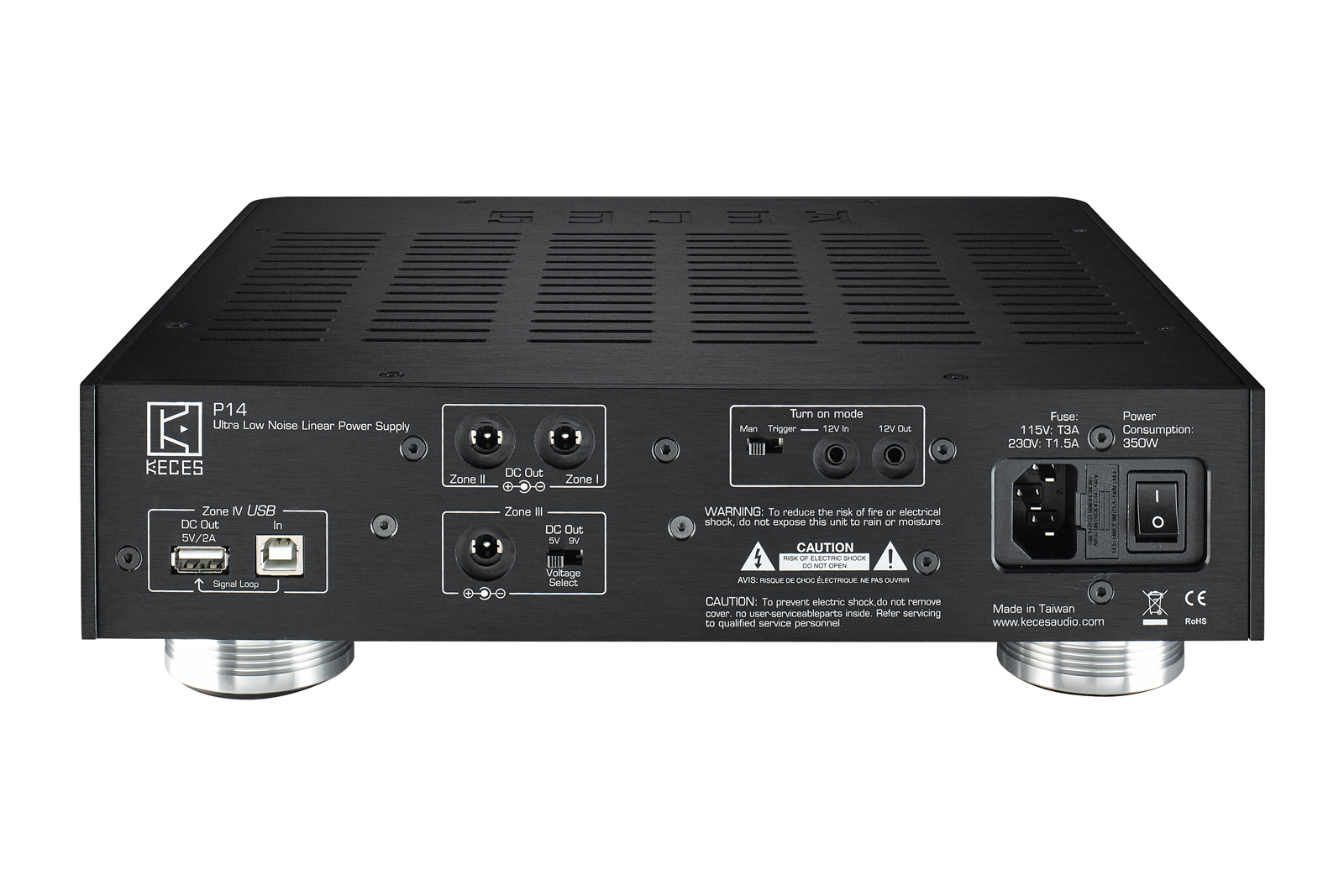

KECES

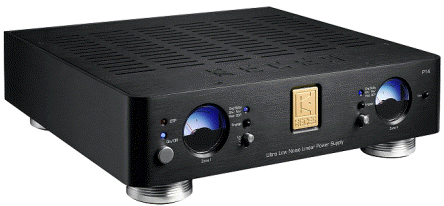

P14 Listino
ufficiale
€. 1.750,00
High Quality Toroidal Transformer
provide pure power.
Separate ground for each output rail.
Ultra low ripple noise.
No humming or buzz noise for 50Hz and peak load.
Newly designed the Circuit that do not use any ICs. It is truly Analog design.
Quantum Resonance technology "that provides a subtle field that makes all
electromechanical components resonate in unison to improve
coherence and timing."
There are 4 zone and each zone are separated.
USB Isolator for audiophile grade systems. PCM support up to 24Bit/96kHz. DSD
support to DSD64.
New in-house Audio Grade foot cone.
.gif)
KECES

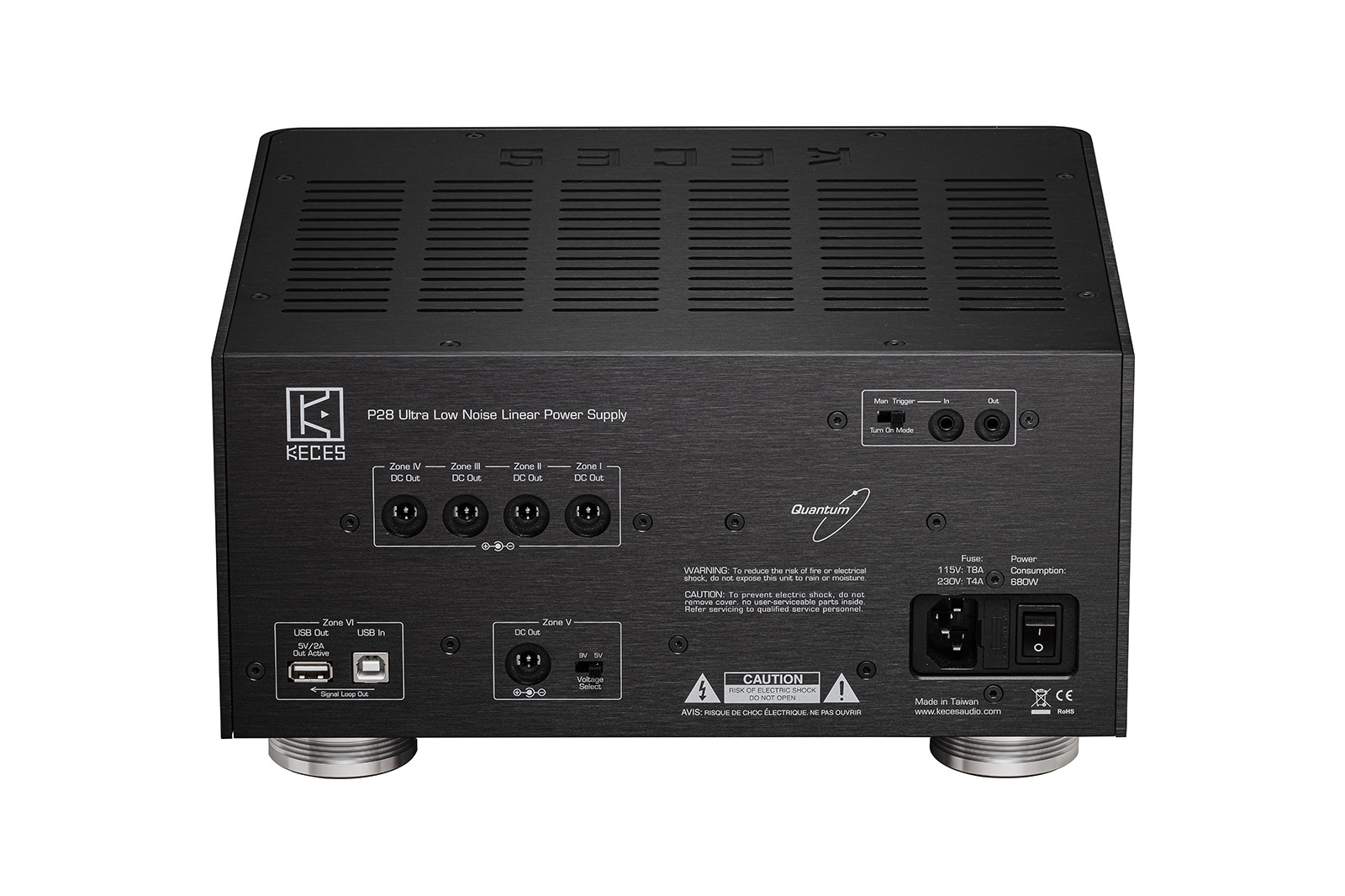

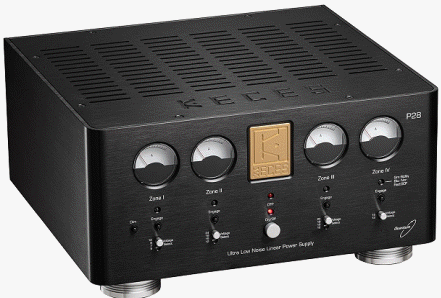

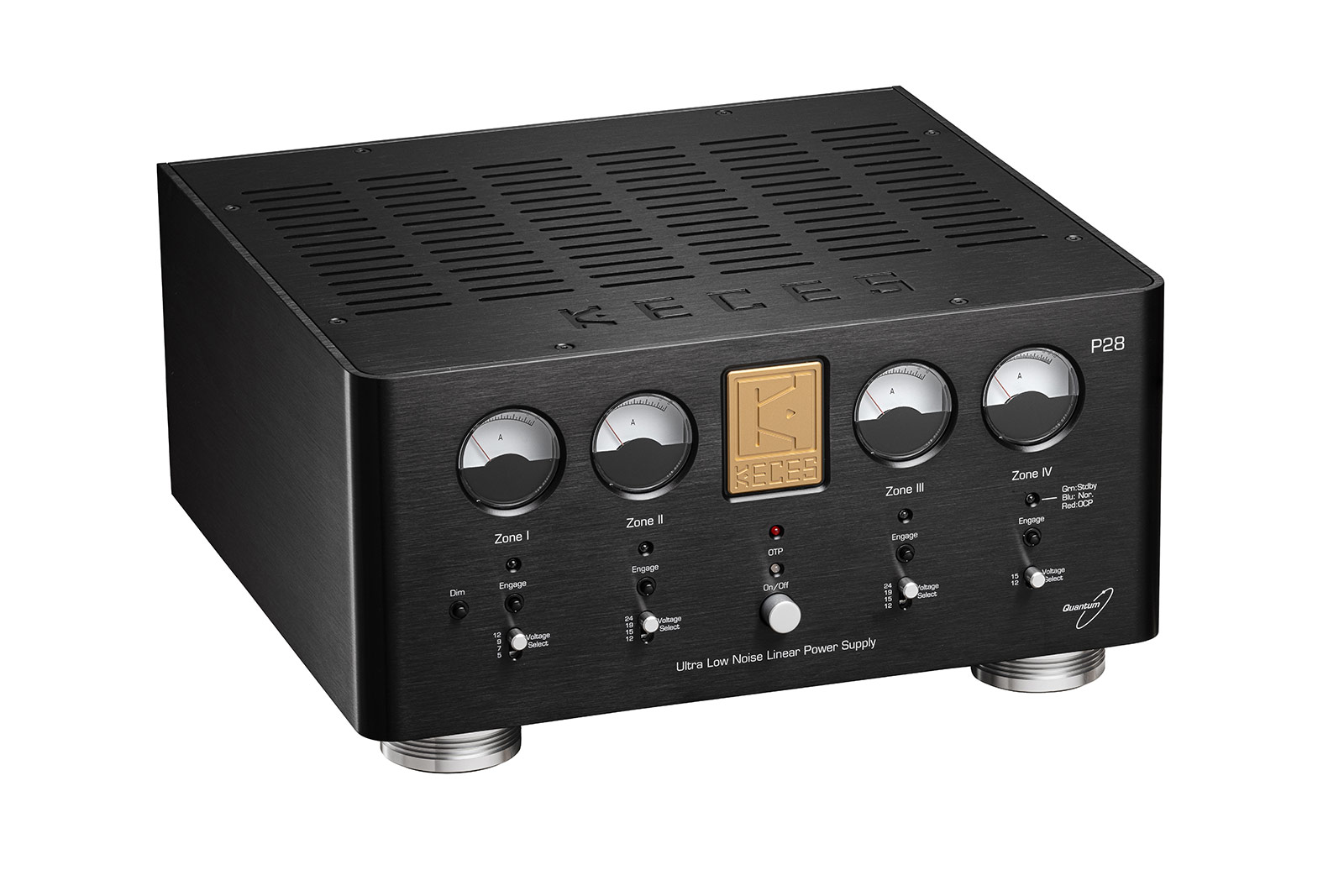

P28 Listino
ufficiale
€. 2.800,00
High Quality Toroidal Transformer
provide pure power.
Separate ground for each output rail.
Ultra low ripple noise.
No humming or buzz noise for 50Hz and peak load.
Newly designed the Circuit that do not use any ICs. It is truly Analog design.
Quantum Resonance technology "that provides a subtle field that makes all
electromechanical components resonate in unison to improve
coherence and timing."
There are 6 zone and each zone are separated.
USB Isolator for audiophile grade systems. PCM support up to 24Bit/96kHz. DSD
support to DSD64.
New in-house Audio Grade foot cone.
.gif)

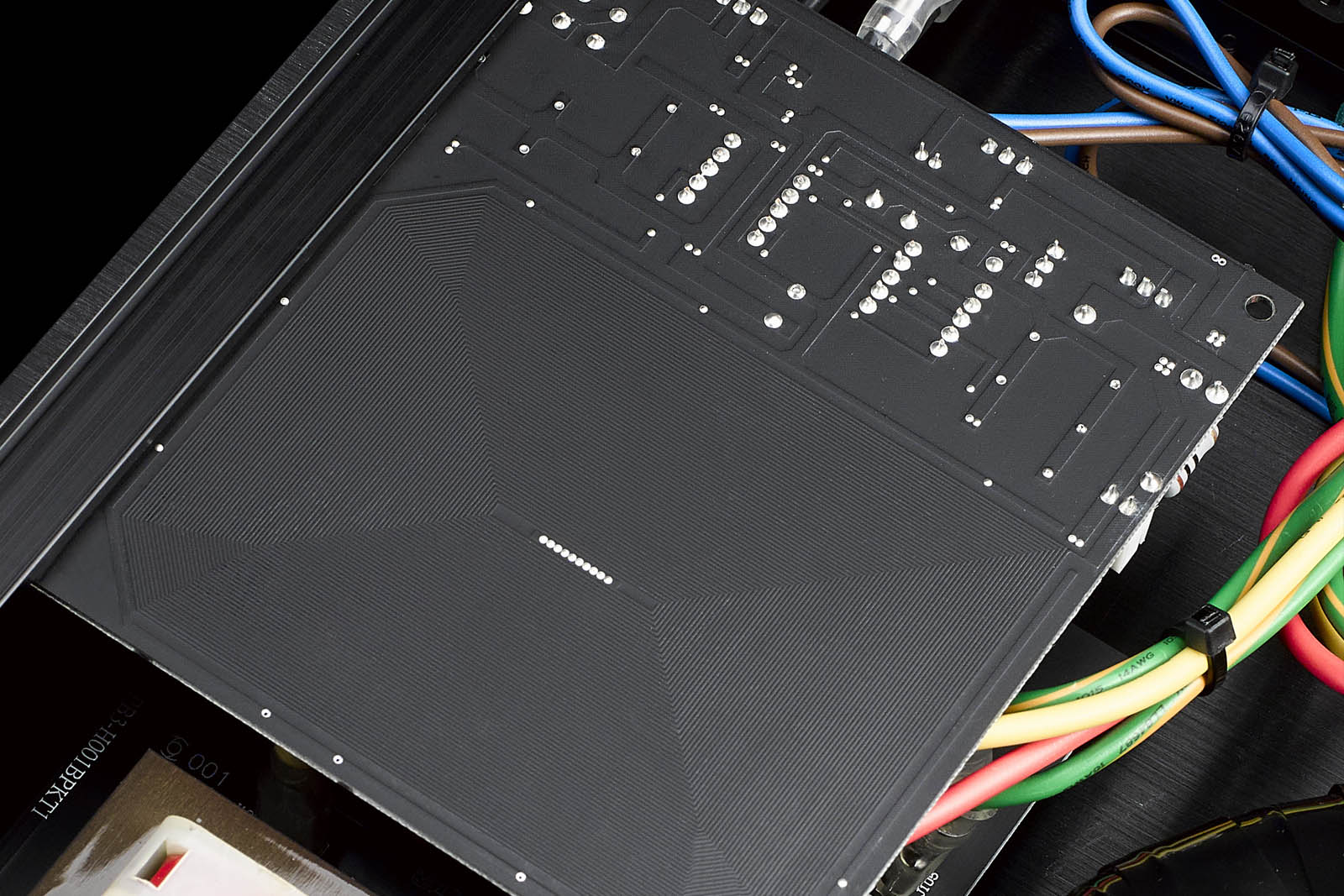

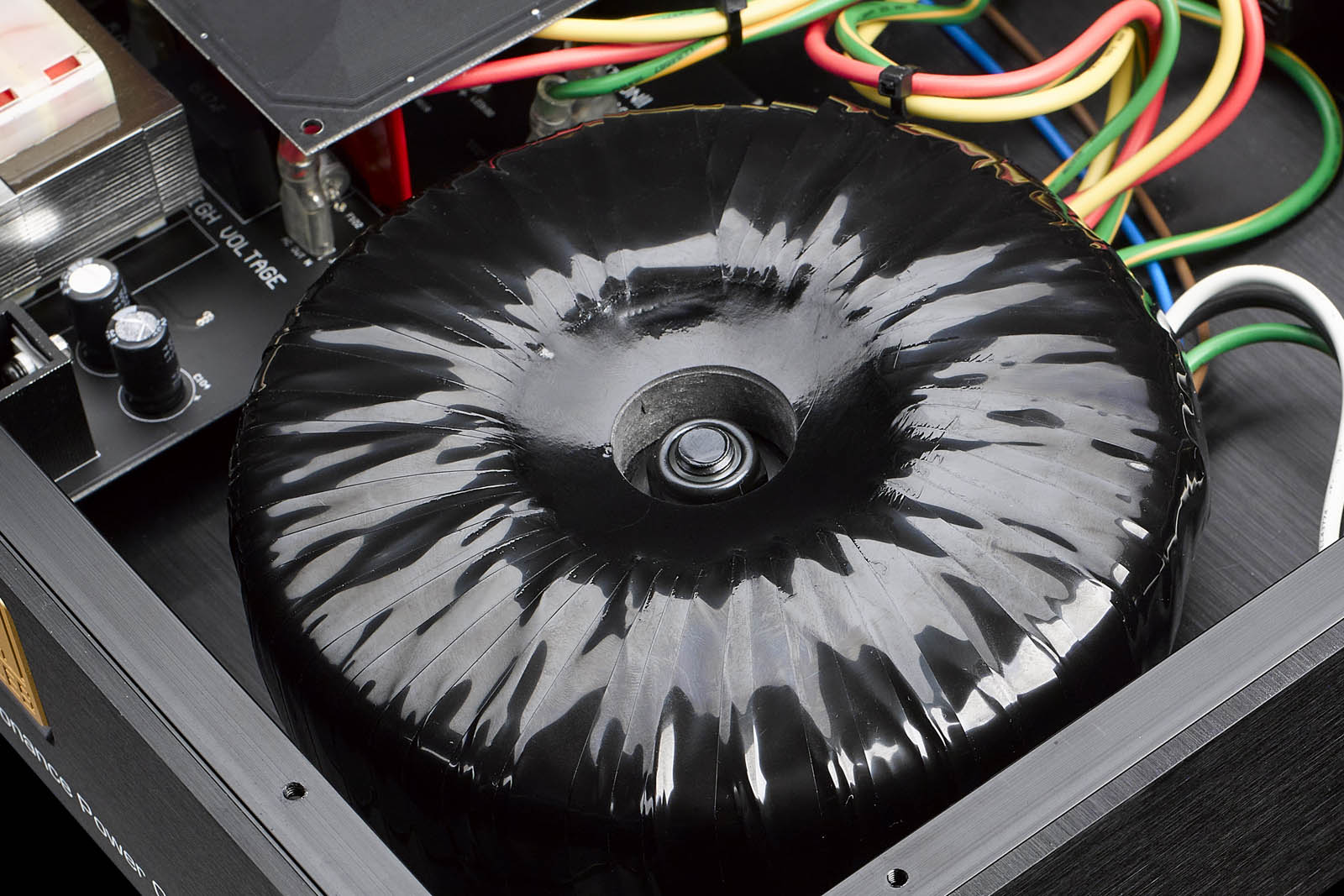

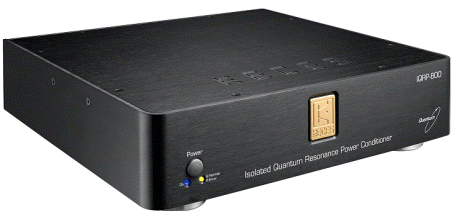

KECES

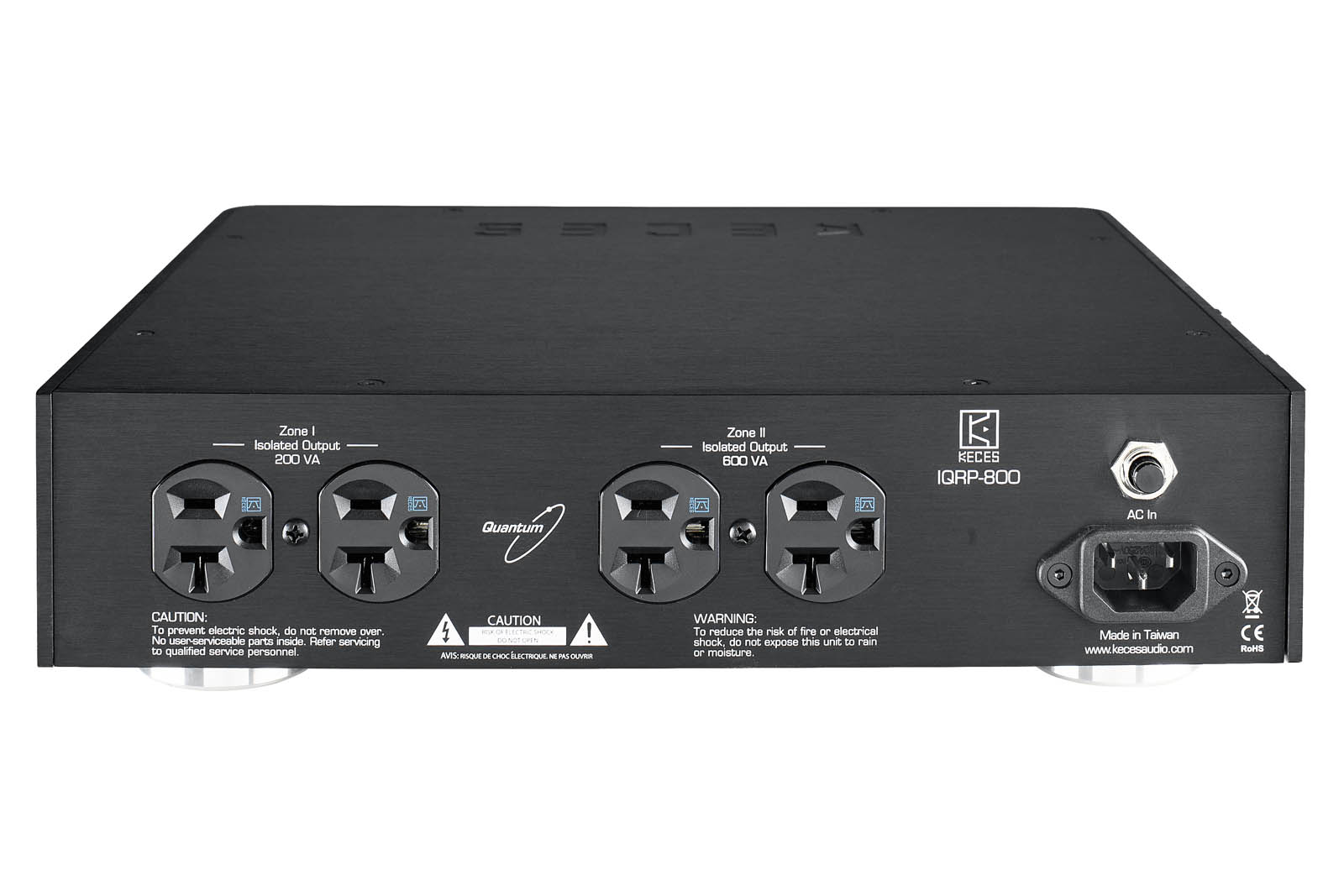

IQRP-800
Listino
ufficiale
€. 1.200,00
Newly designed the Isolated Power Transformer
that separate each output channel for the different power products.
Quantum Resonance technology "that provides a subtle field that makes all
electromechanical components resonate in unison to improve
coherence and timing."
New in-house Audio Grade sockets.
New in-house Audio Grade foot cone.
.gif)

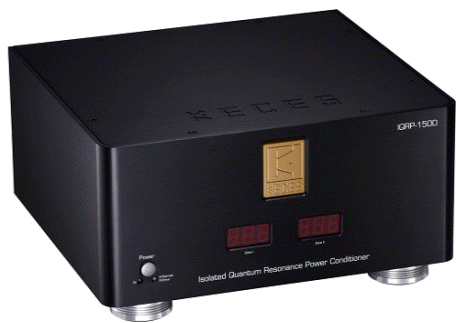

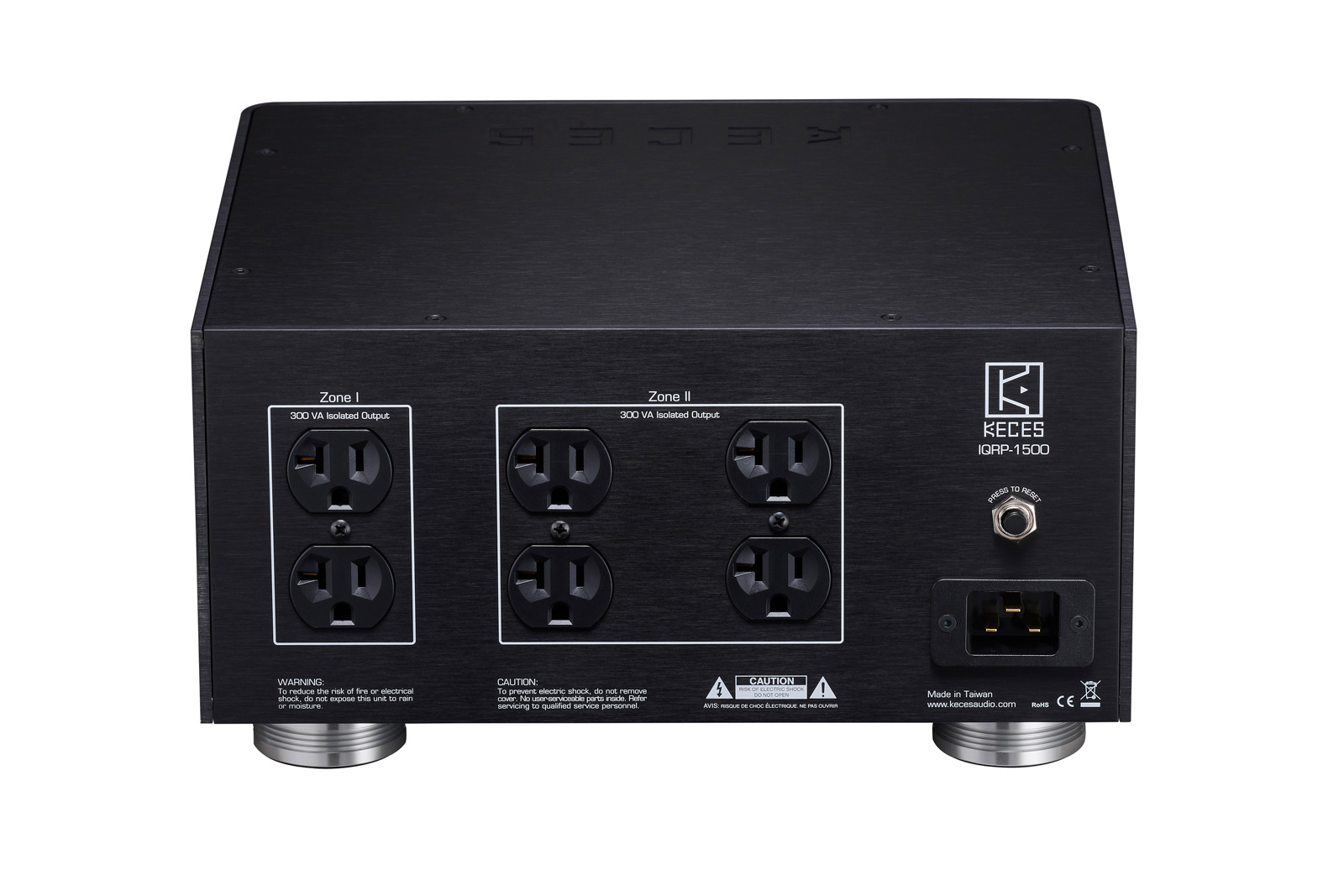

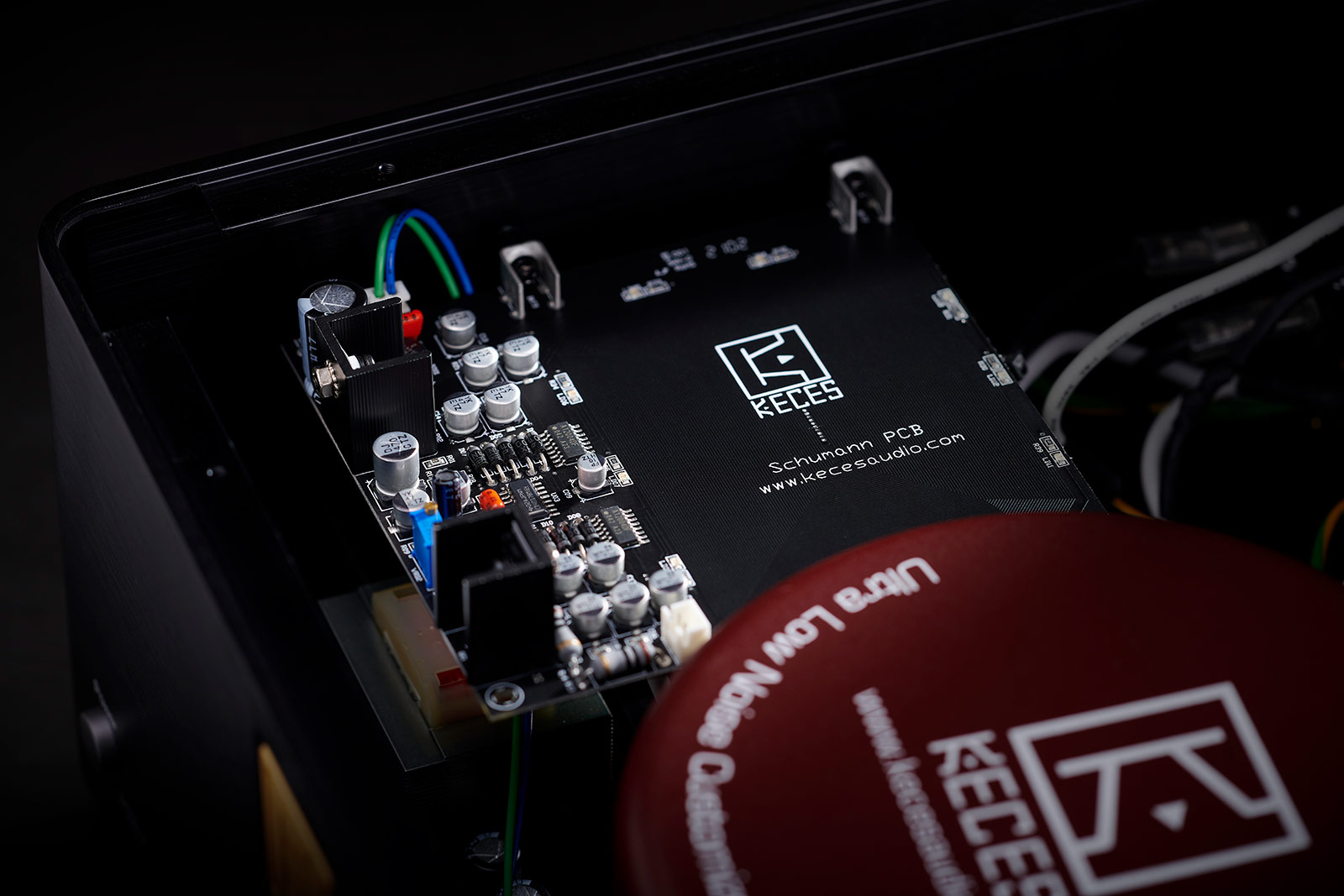

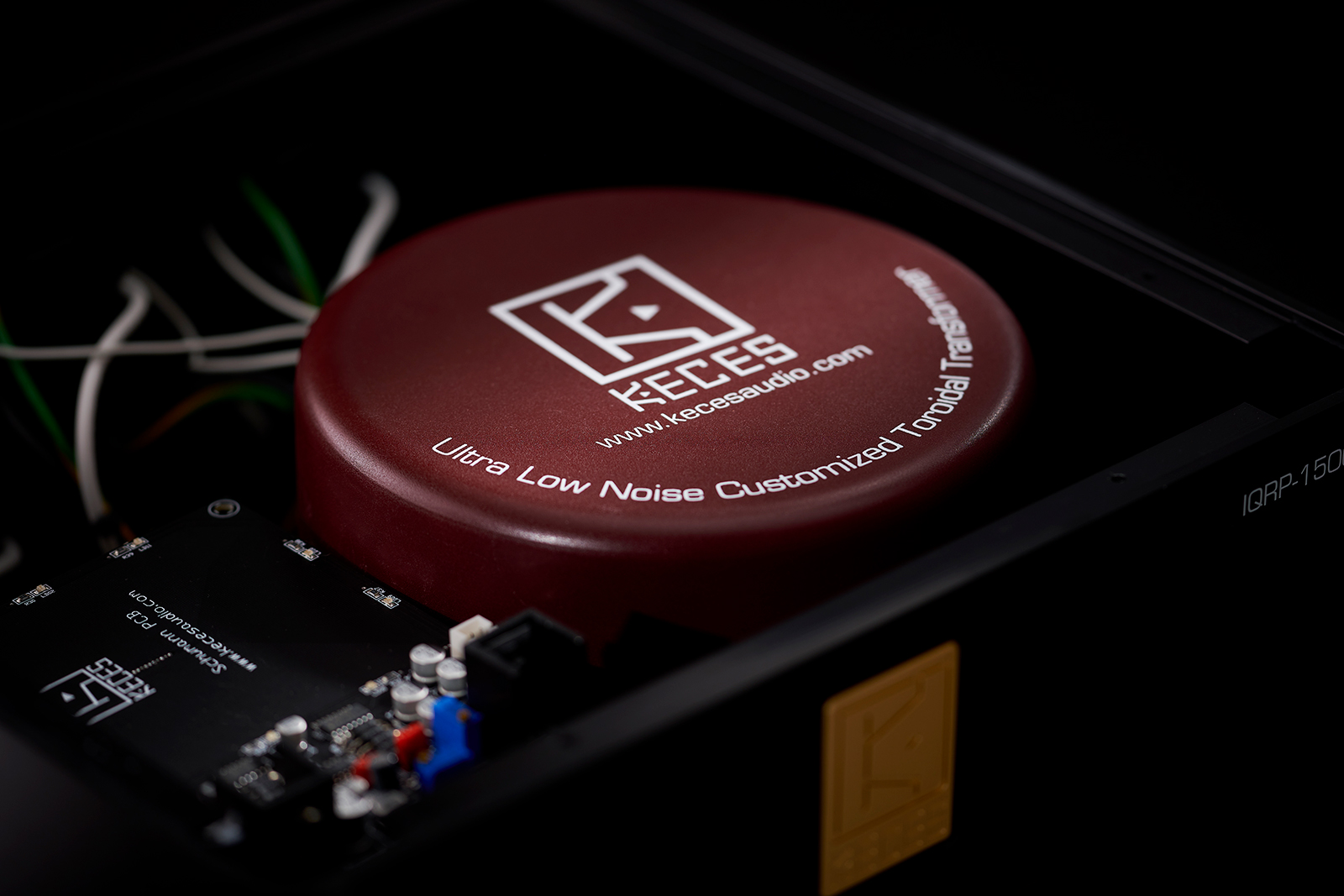

KECES
IQRP-1500
Listino
ufficiale
€. 2.400,00
Newly designed the Isolated Power
Transformer that separate each output channel for the different power products.
Quantum Resonance technology "that provides a subtle field that makes all
electromechanical components resonate in unison to improve
coherence and timing."
New in-house Audio Grade sockets.
New in-house Audio Grade foot con
.gif)
KECES

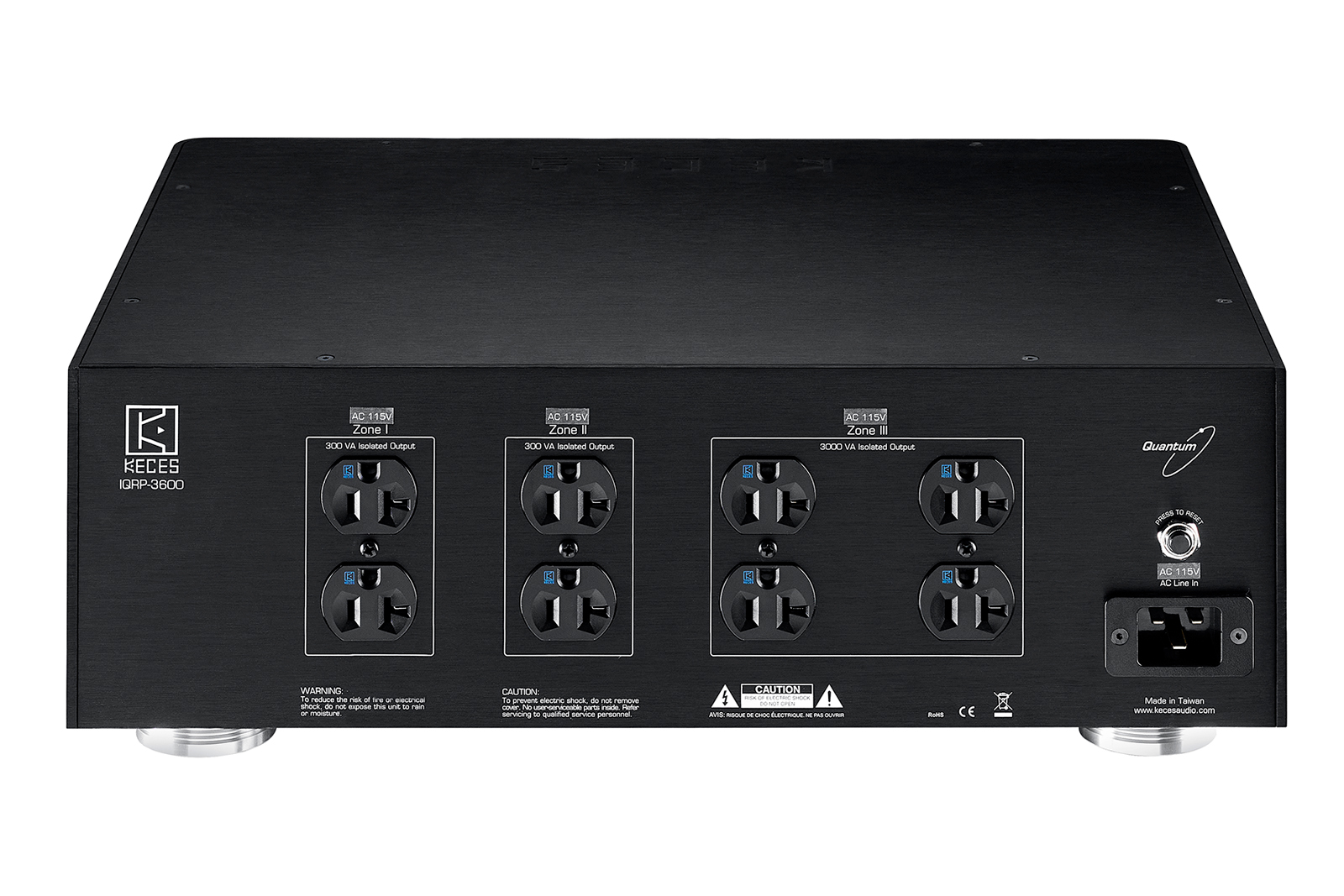

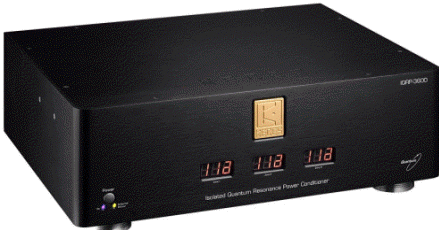

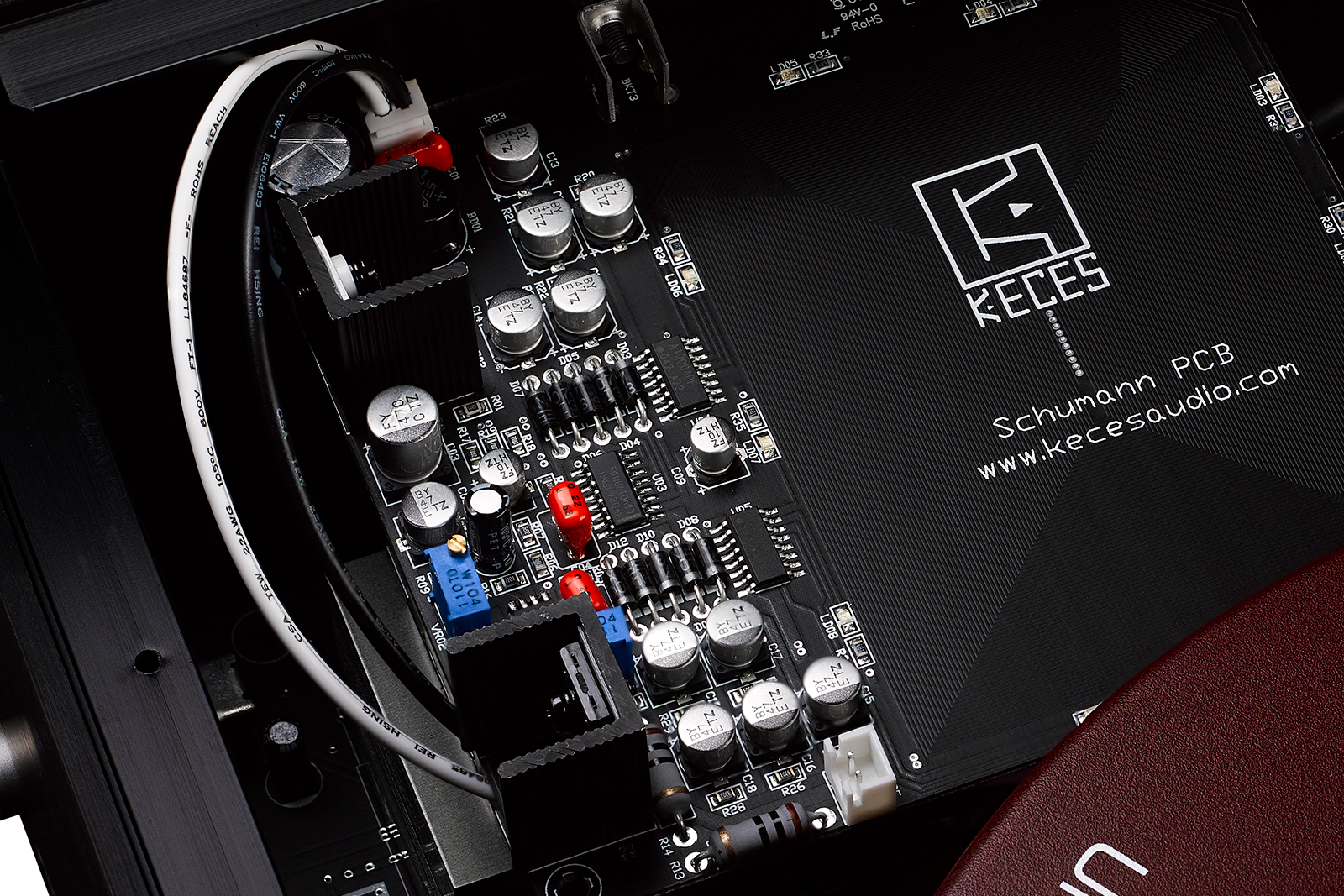

IQRP-3600
Listino
ufficiale
€. 3.600,00

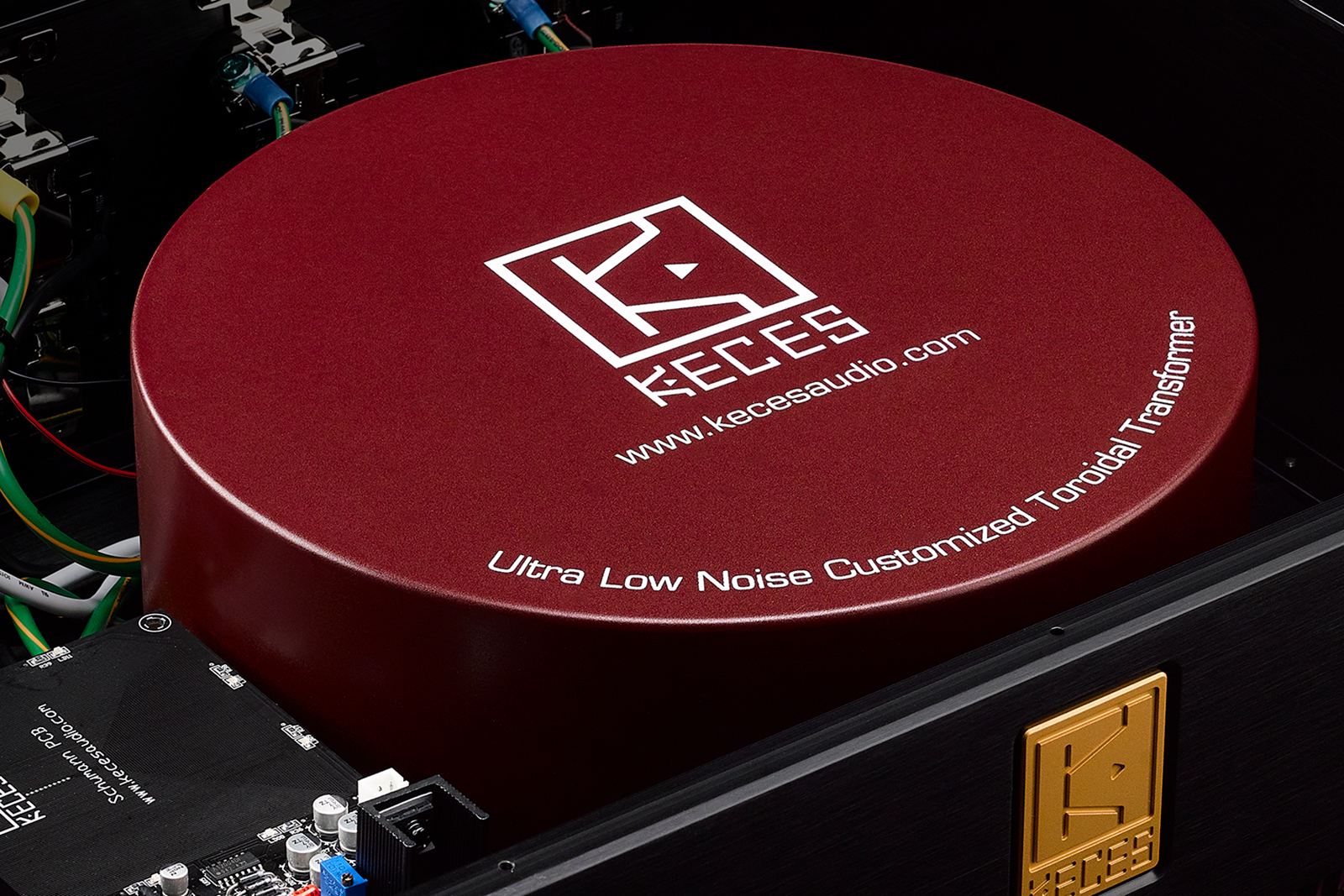

Newly designed the Isolated Power
Transformer that separate each output channel for the different power products.
Quantum Resonance technology "that provides a subtle field that makes all
electromechanical components resonate in unison to improve
coherence and timing."
New in-house Audio Grade sockets.
New in-house Audio Grade foot cone.
.gif)

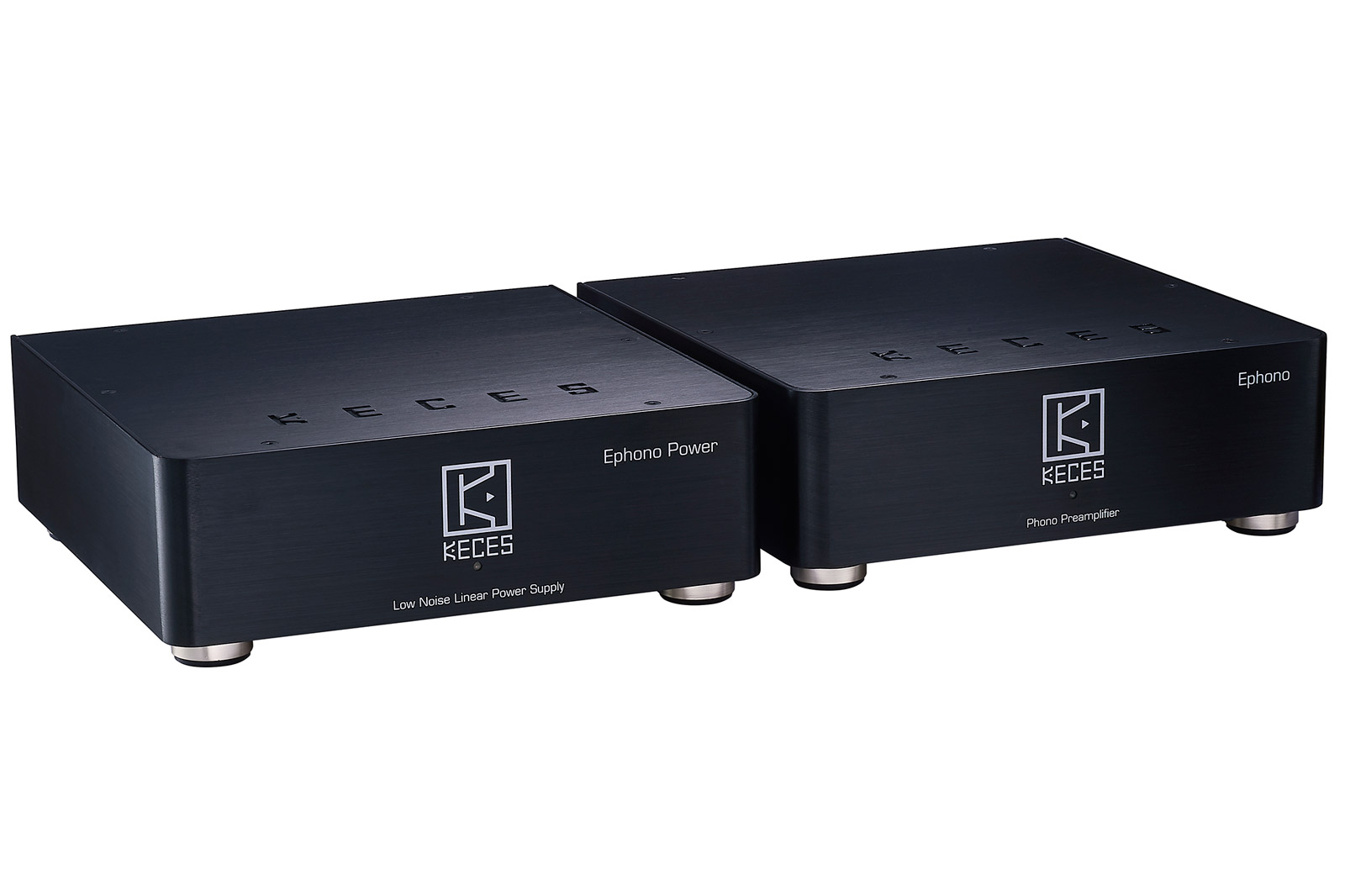

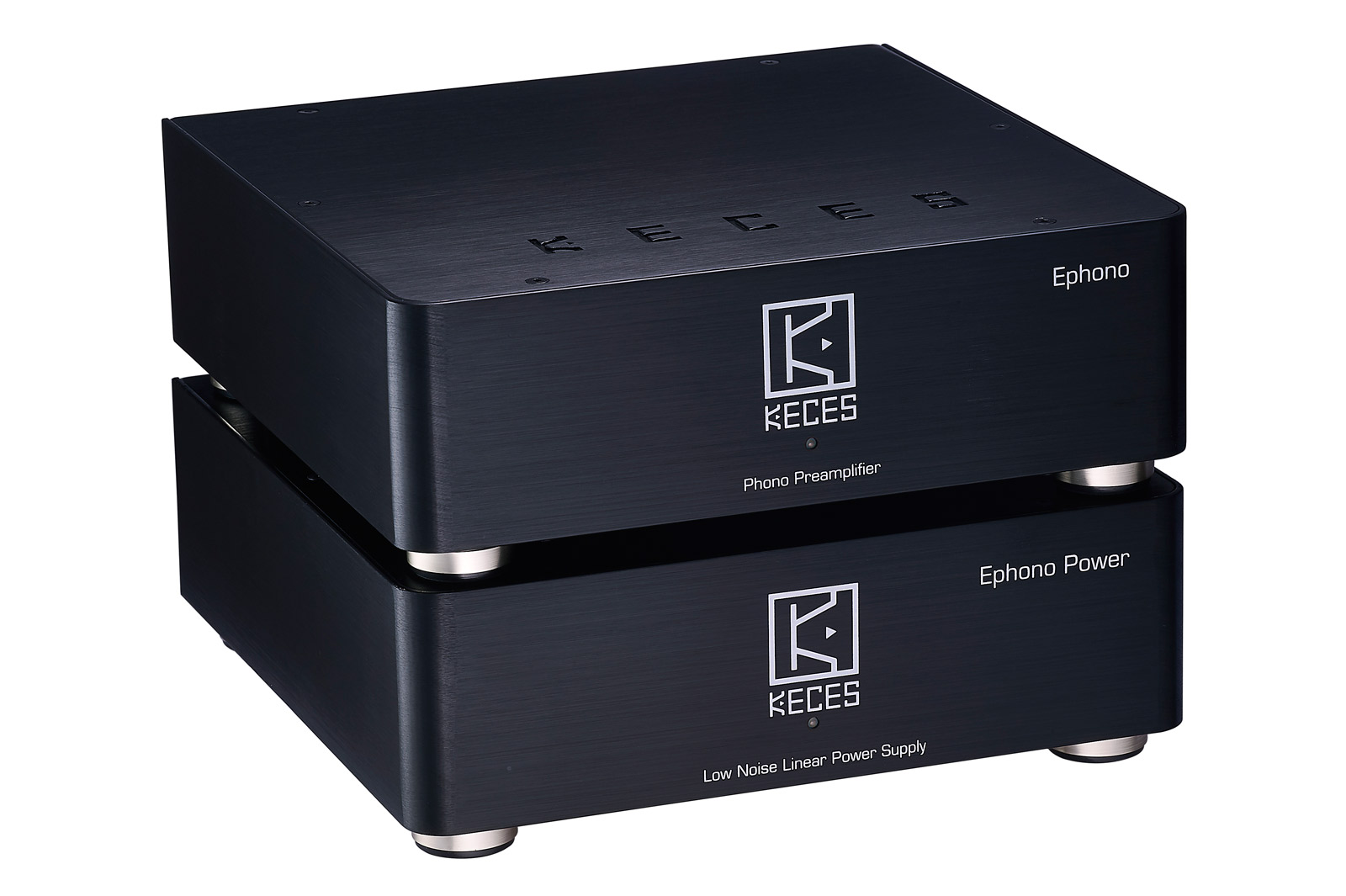

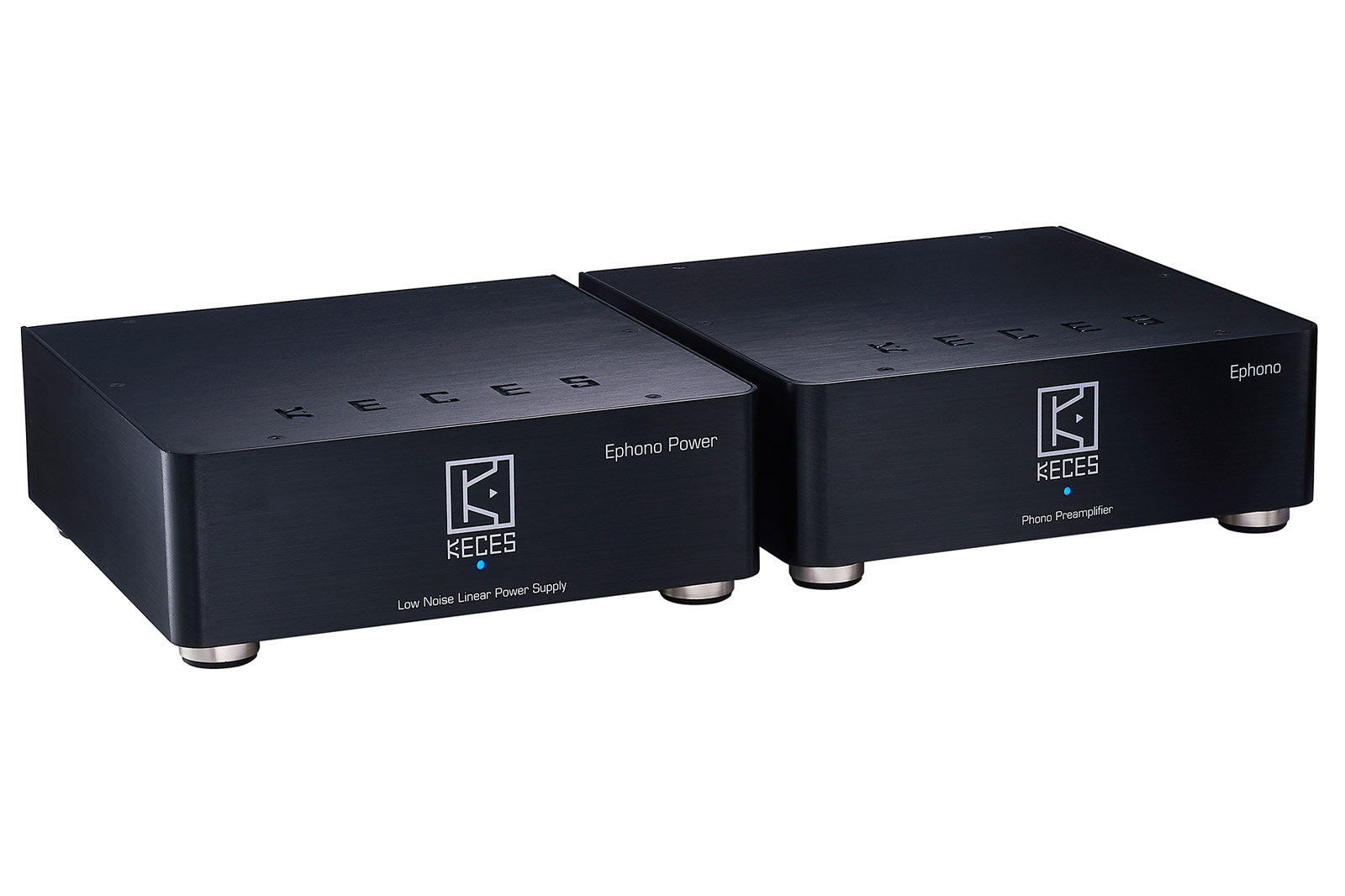

KECES

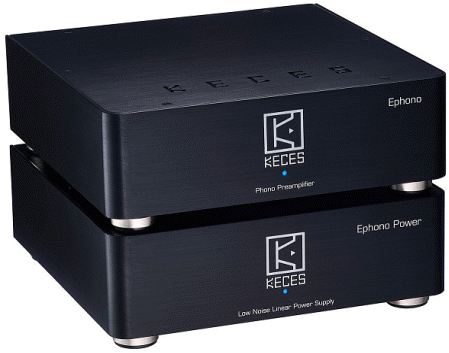

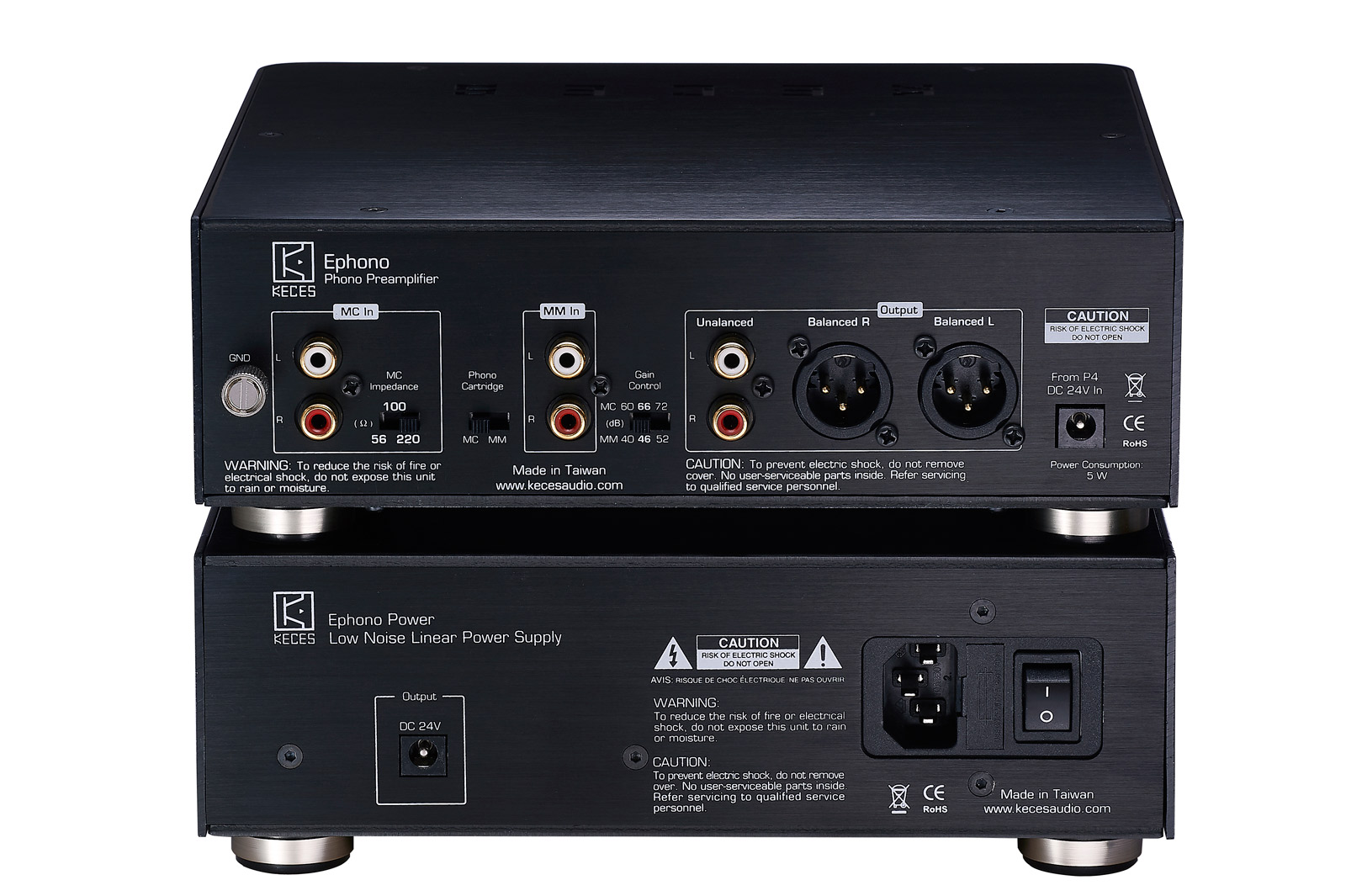

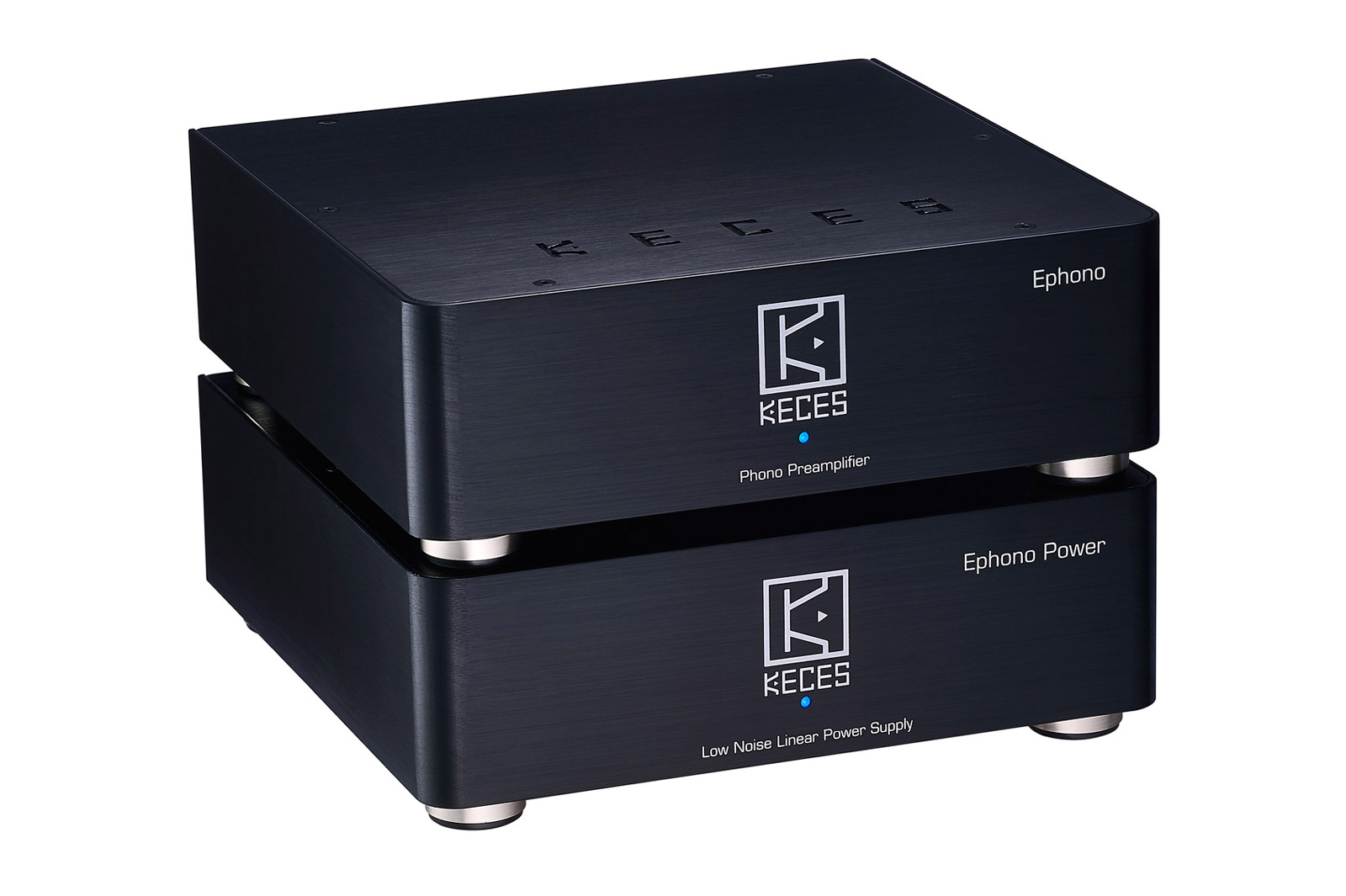

EPHONO
Listino
ufficiale €. 800,00
Power by High Quality Linear Power Supply (Ephono Power).
Balanced and unbalanced outputs.
Variable MC impedance adjustment of 56/100/220 ohms and MM 47k ohm.
Gain select for 40dB/46dB/52dB MM and 60dB/66dB/72dB MC.
RIAA accurate to within 0.2dB.
Ephono Power have Over Temperature Protection (OTP).
The 3mm thickness of the aluminum chassis to effective to blocks EMI/RFI
interference.Ephono Specification
Frequency Response
20-20Khz
THD
MM <0.004%, MC <0.03%.
S/N Ratio MM 86dB A-weighted, MC 78dB A-weighted.
Input Impedance
MM 47k ohm, MC variable 56/100/22 ohm.
Input Capacitance
100PF
Gain
40dB/46dB/52dB for MM, 60dB/66dB/72dB for MC.
Power In
DC 24V (Power by Ephono Power)
Power Consumption
5W
Casing
4mm Aluminum
Dimension (WxDxH) 220x220x66mm
Weight 2KG
Ephono Power Specification
AC Input Voltage 110V-120V, 60Hz / 220V-240V, 50Hz (Switchable)
DC output Voltage 24V/2A
Power Consumption 60 Watts
Casing 3mm Aluminum
Dimension (WxDxH) 220x220x66mm
Weight 3KG
.gif)

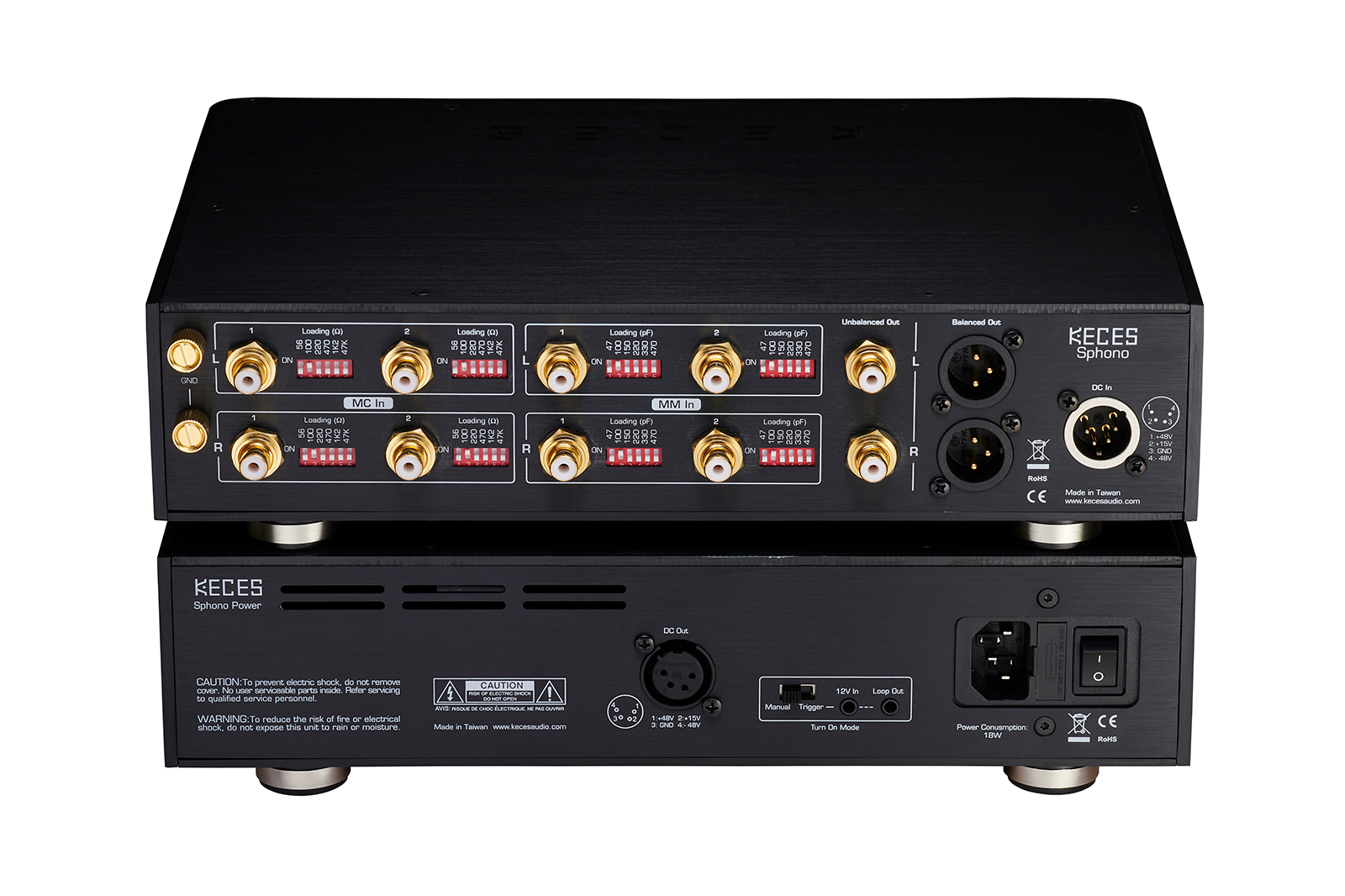

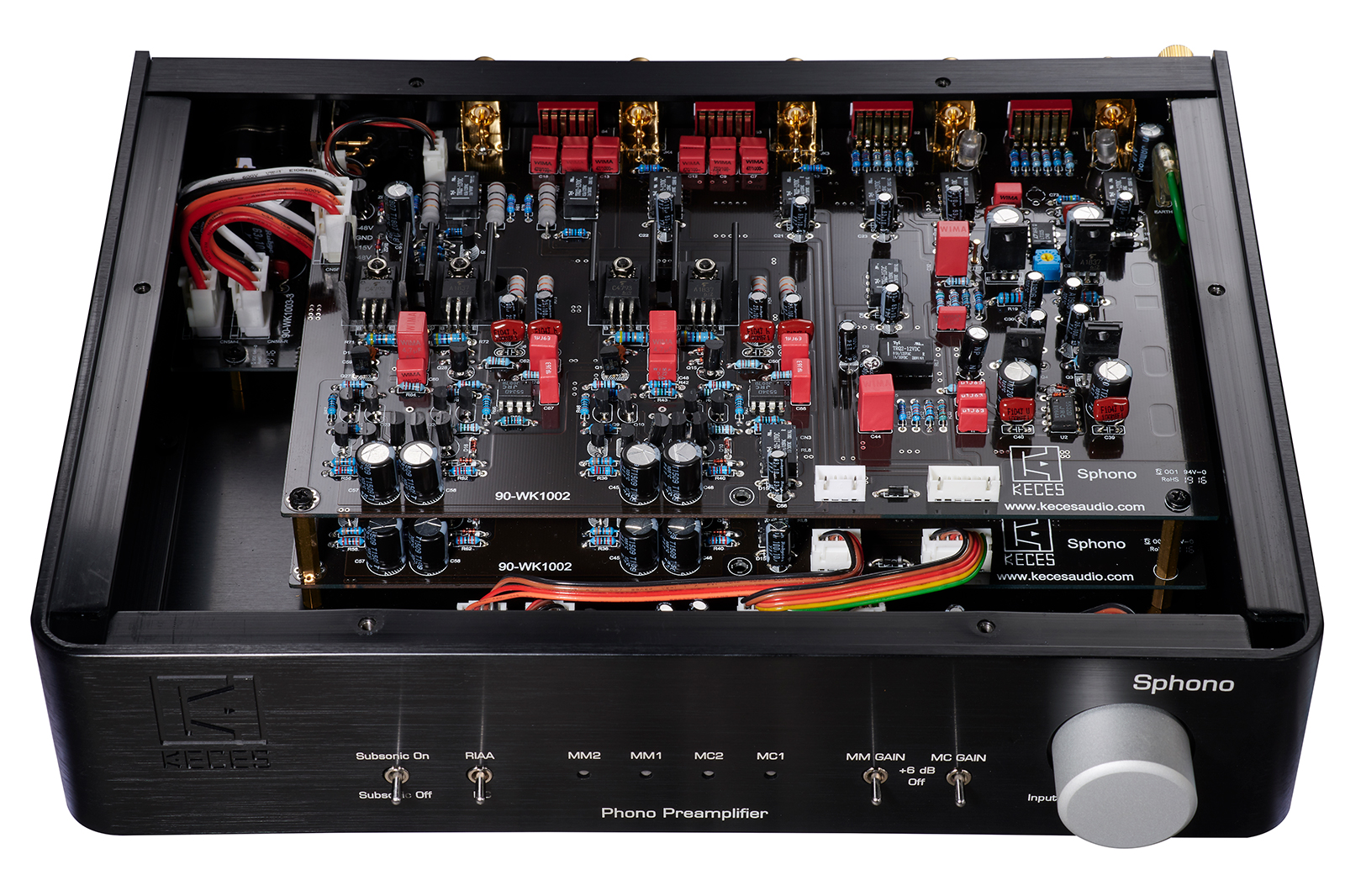

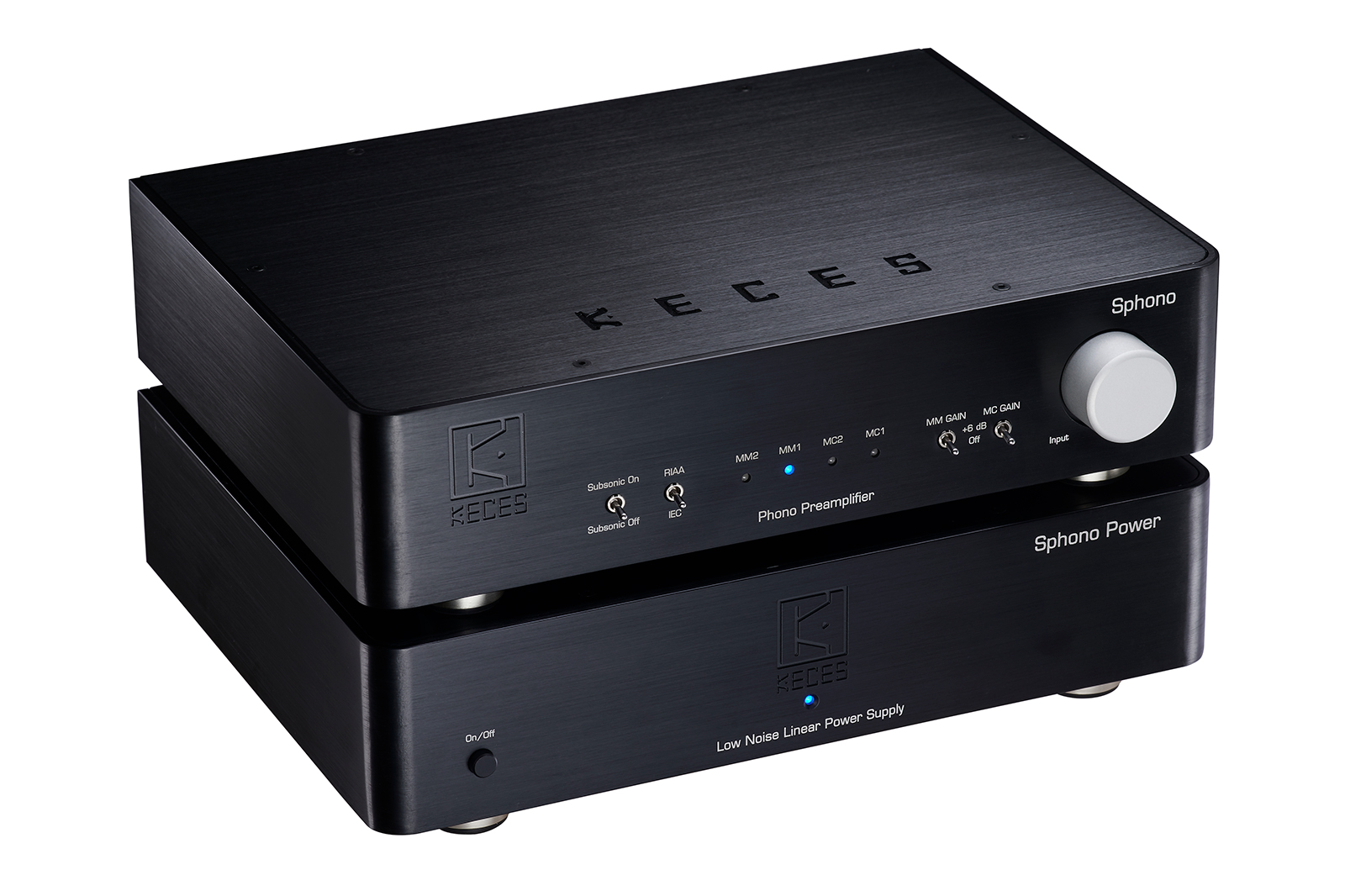

KECES

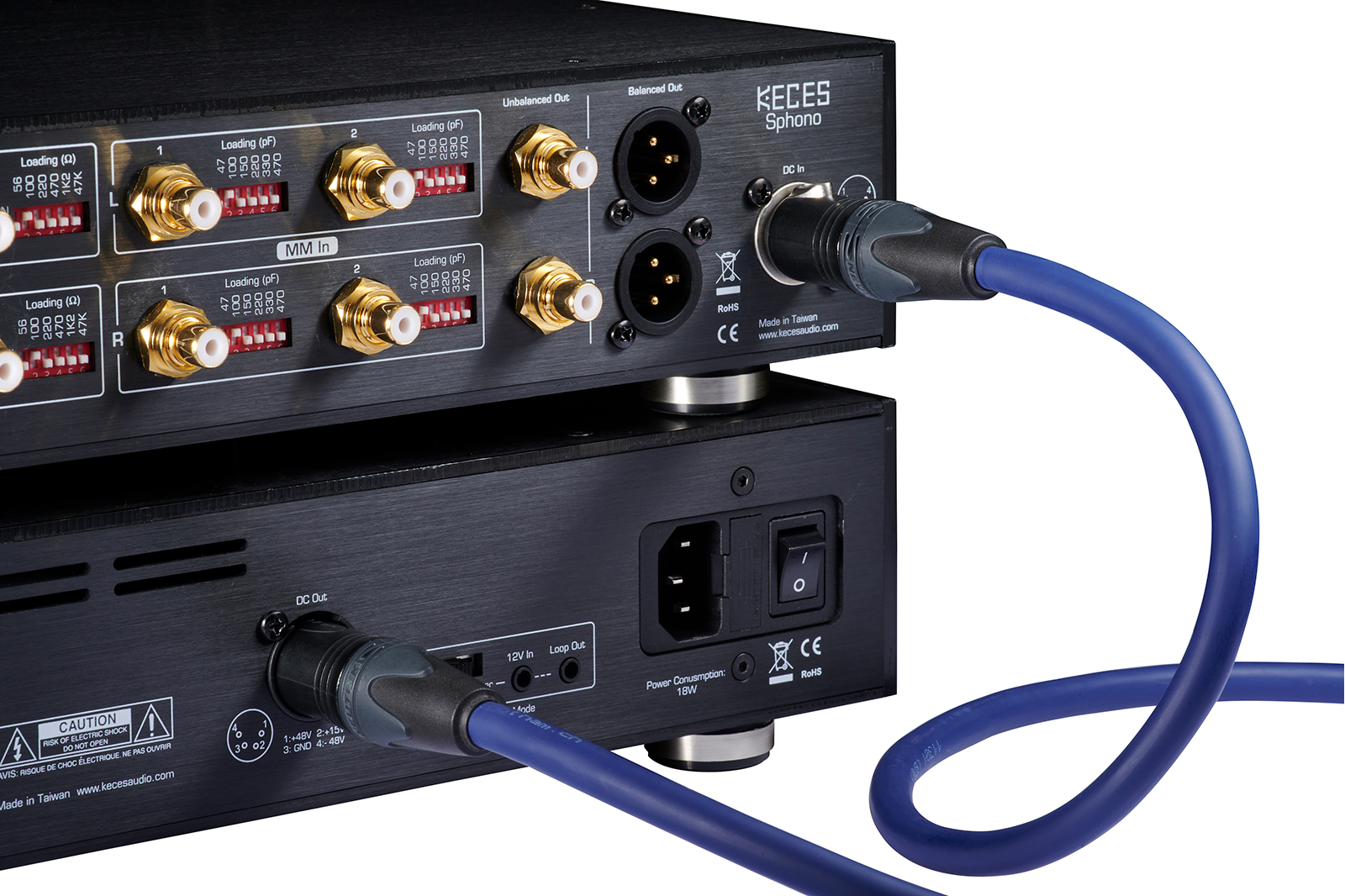

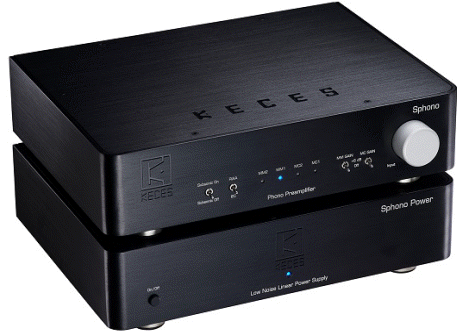

SPHONO
Listino
ufficiale €. 3.000,00
Power by High Quality Linear Power
Supply (Sphono Power), provide pure DC+-48V and +15V high dynamic range to
Sphono.
Dual Mono design.
Balanced and unbalanced outputs.
Front panel input select switch for 2 MM inputs and 2 MC inputs.
Front panel subsonic filter switch.
Front panel MM/MC Gain select.
Front panel EQ curve select for IRAA and IEC.
Variable MC impedance adjustment of 56/100/220/470/1K2/47K ohms.
Variable MM loading adjustment of 47/100/150/220/330/470 PF.
RIAA/IEC accurate to within 0.2dB.
Audiophile grade resistors and capacitors.
Audiophile grade XLR output jacks.
Gold-plated RCA input and output jacks Sphono Specification
Frequency Response
20-20Khz
THD
MM <0.002%, MC <0.09%.
S/N Ratio MM 96dB A-weighted, MC 82dB A-weighted.
Input Impedance
MM 47k ohm, MC variable 56/100/220/470/1K2/47K ohm.
Input Capacitance
MC 100PF, MM 47/100/150/220/330/470PF.
Gain
40dB/46dB for MM, 60dB/66dB for MC.
Power In
DC +- 48V and +15V (Power by Sphono Power).
Casing
4mm Aluminum
Dimension (WxDxH) 300x220x66mm
Weight 3.5KG

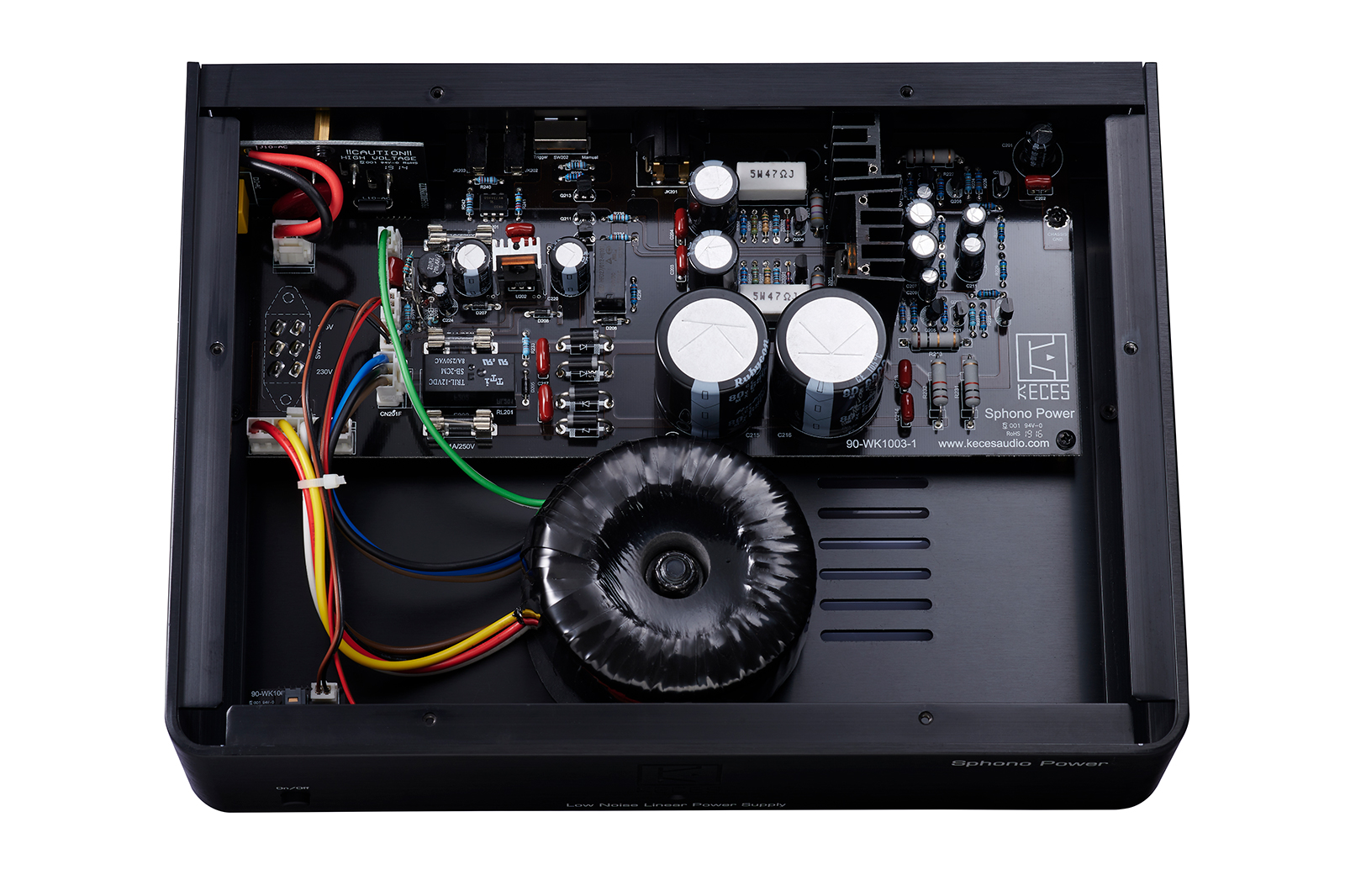

Sphono Power Specification
AC Input Voltage 110V-120V, 60Hz / 220V-240V, 50Hz (Switchable).
DC output Voltage DC +- 48V and +15V.
Power Consumption 18 Watts
Casing 4mm Aluminum
Dimension (WxDxH) 300x220x66mm
Weight 5KG
.gif)

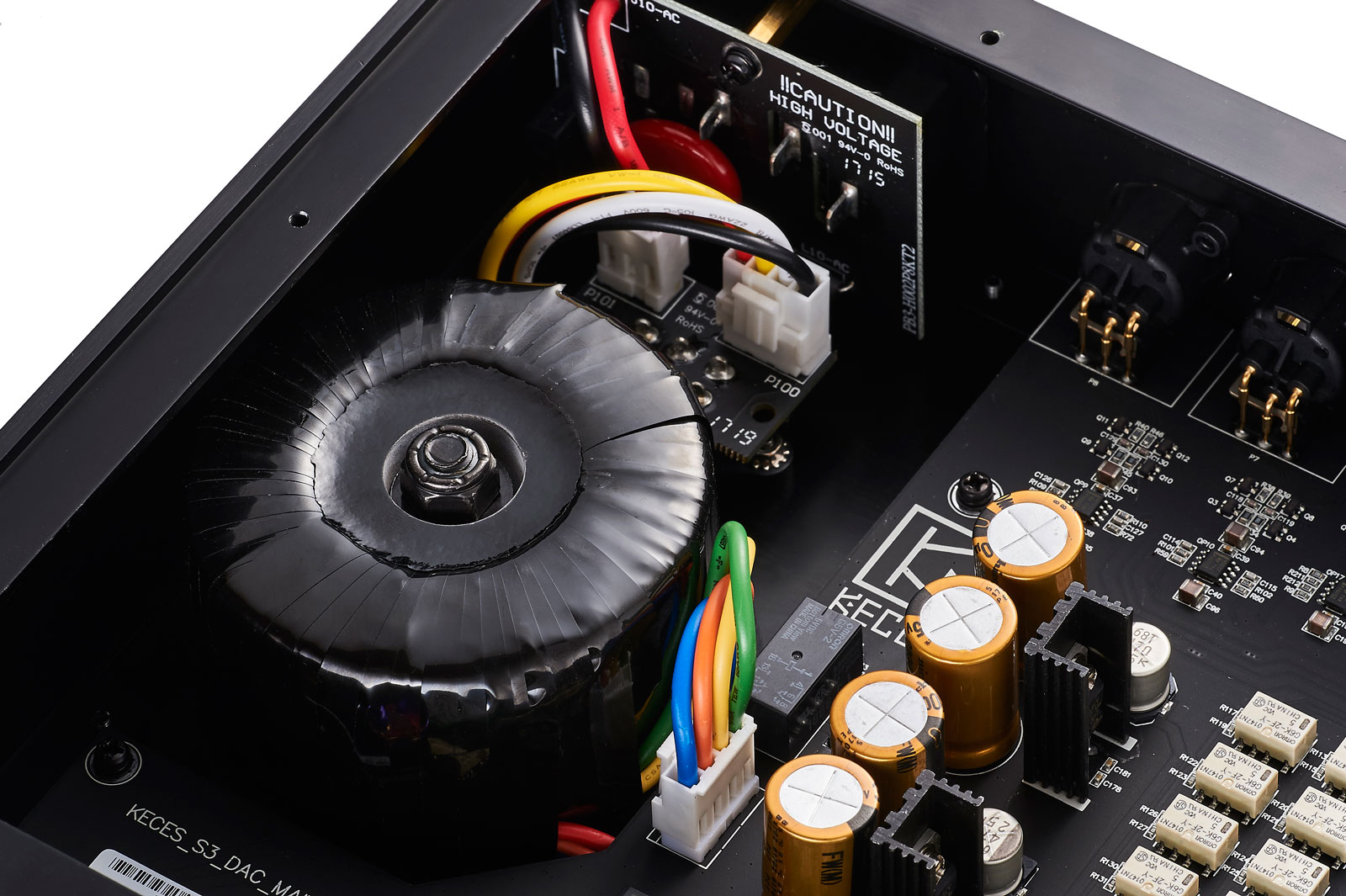

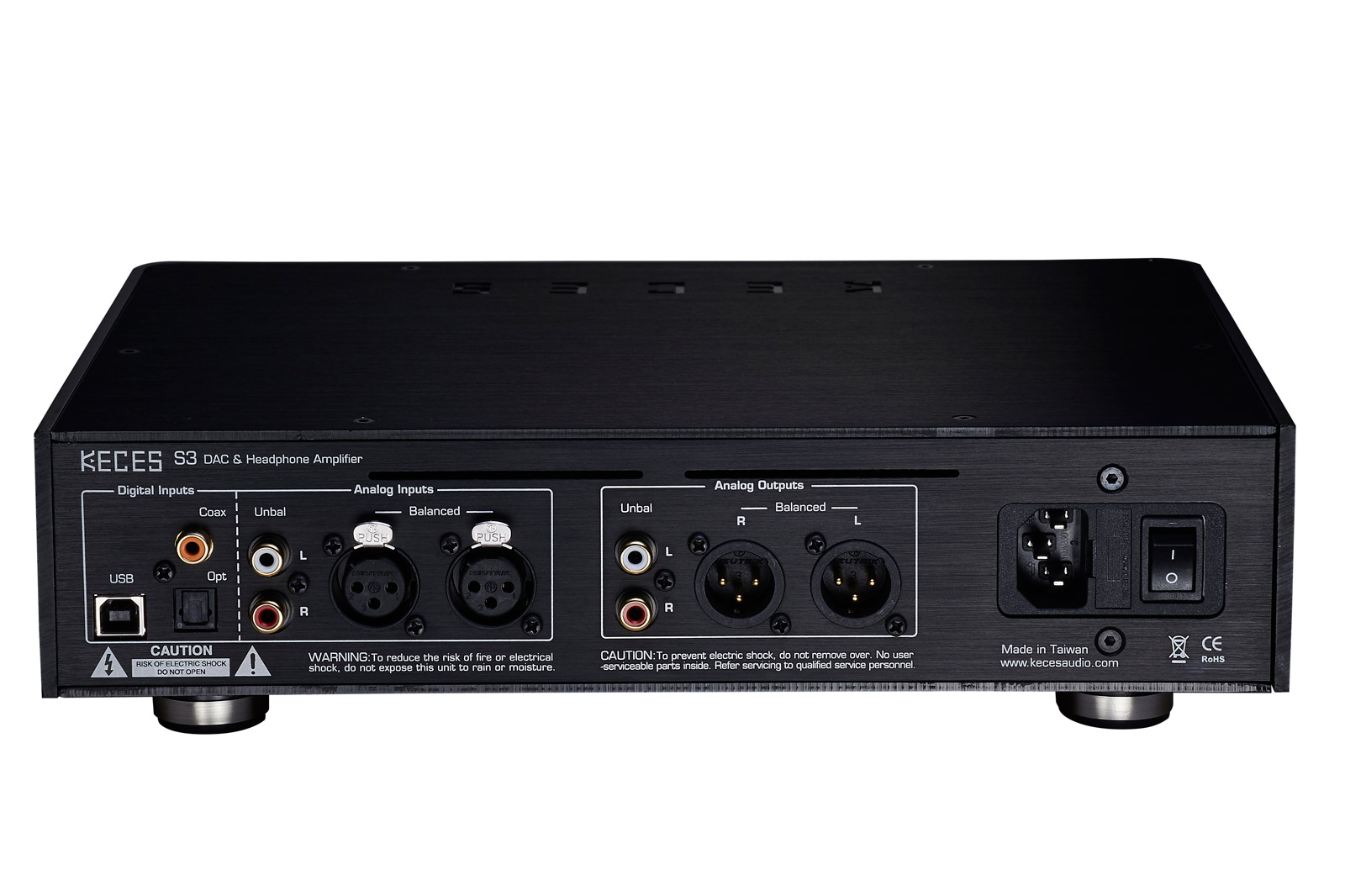

KECES

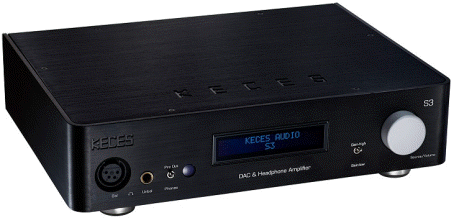

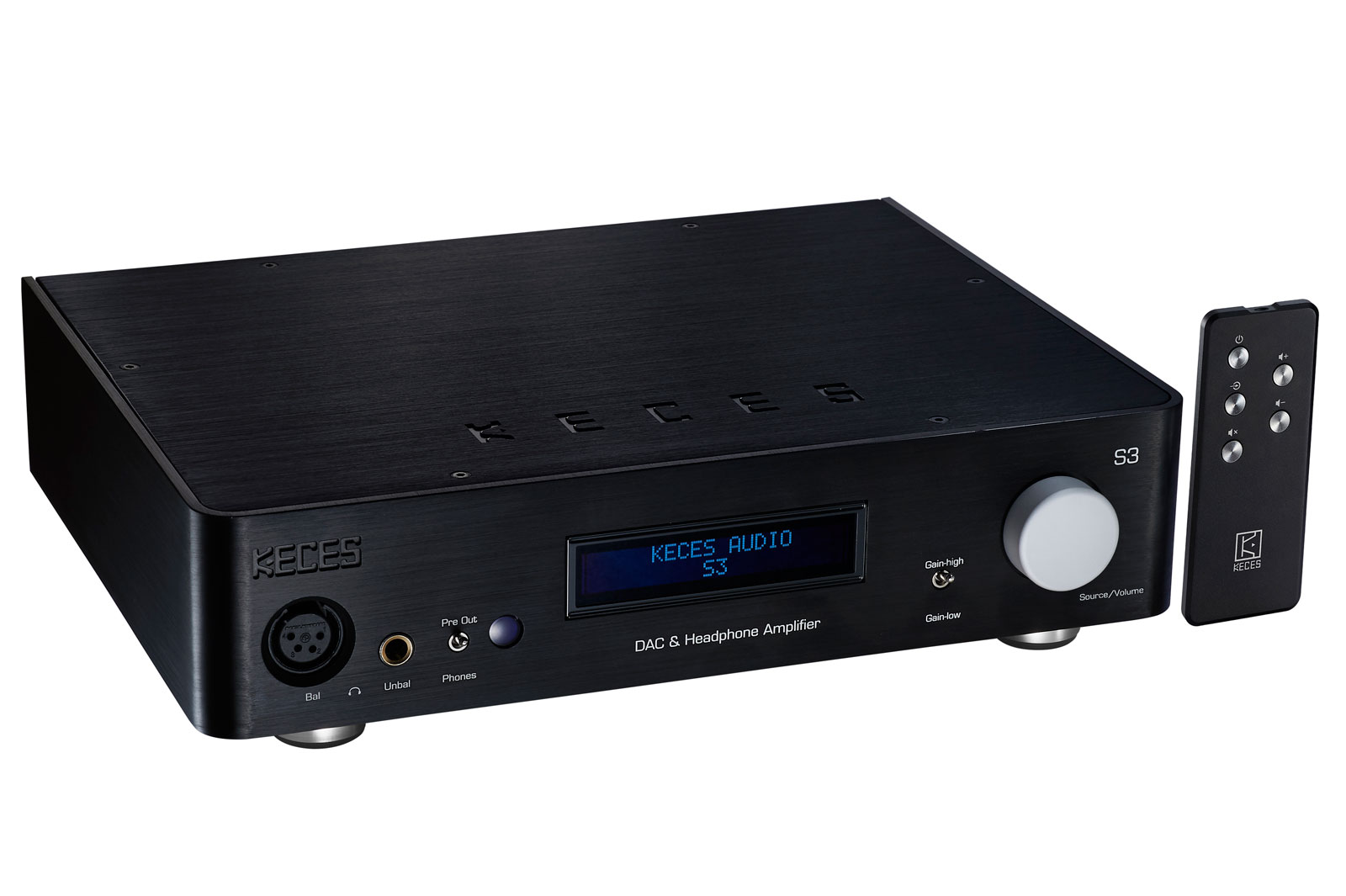

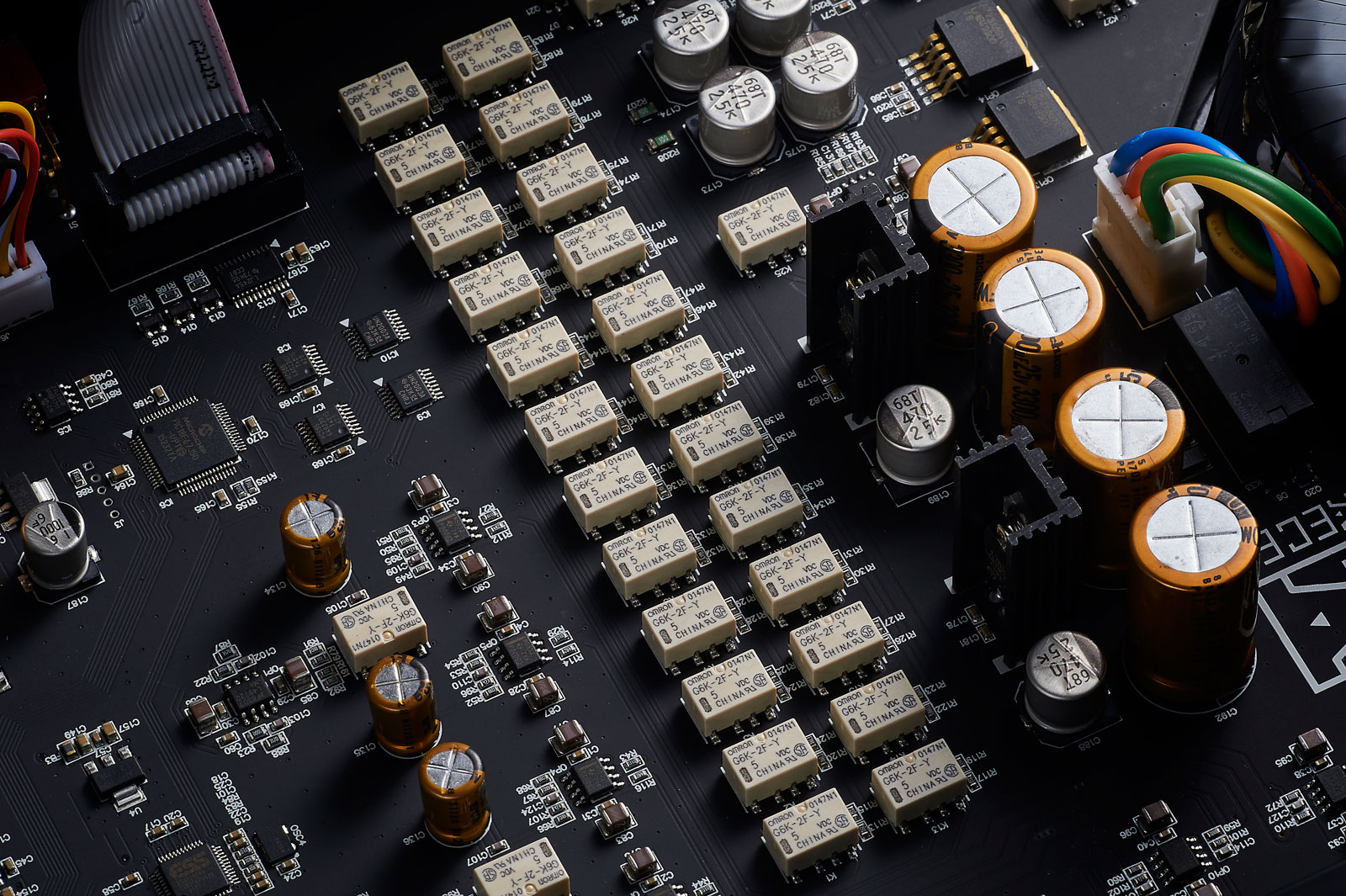

S3
Listino
ufficiale €. 1.750,00

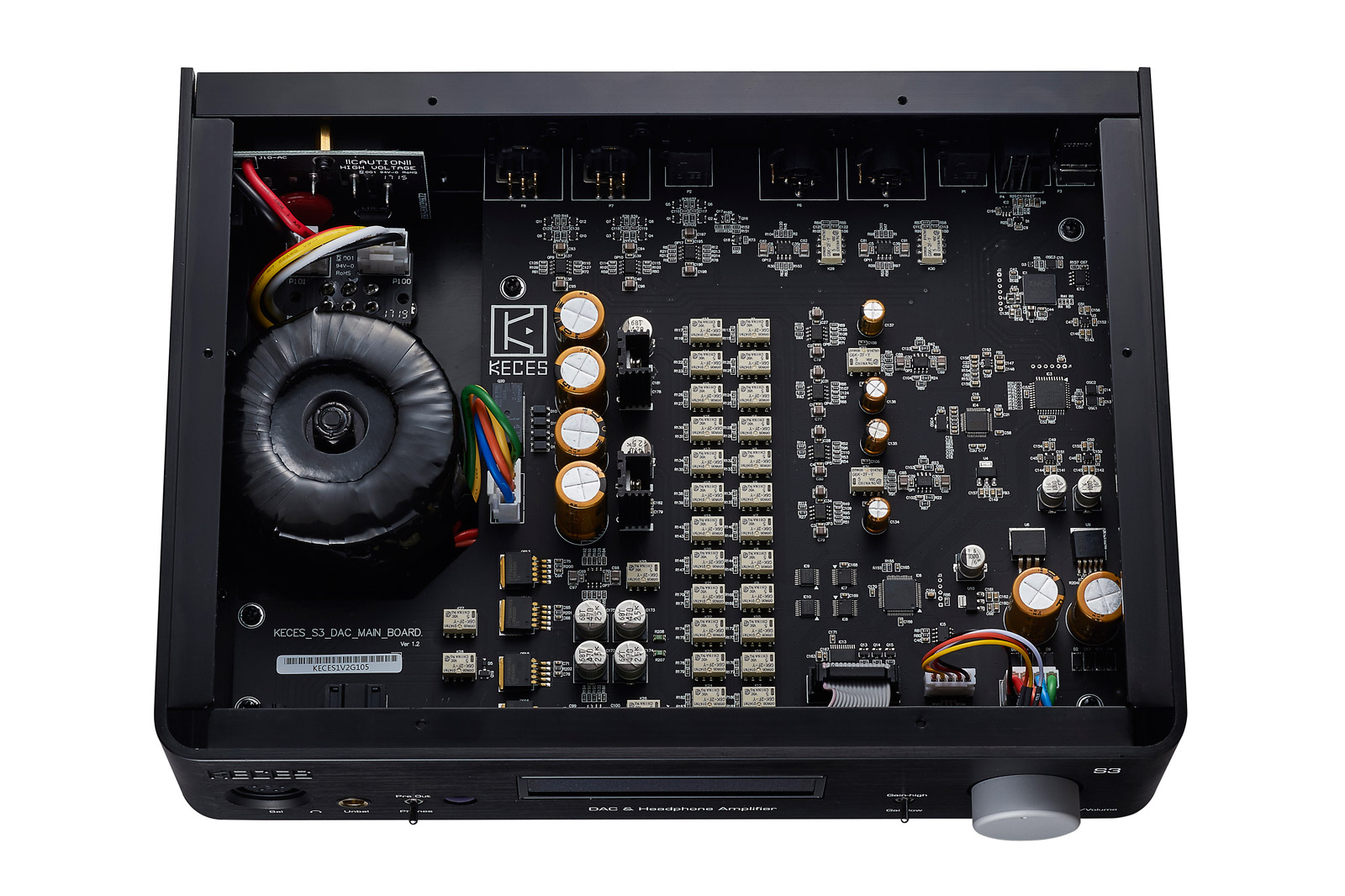

High Quality Toroidal Power
Transformer

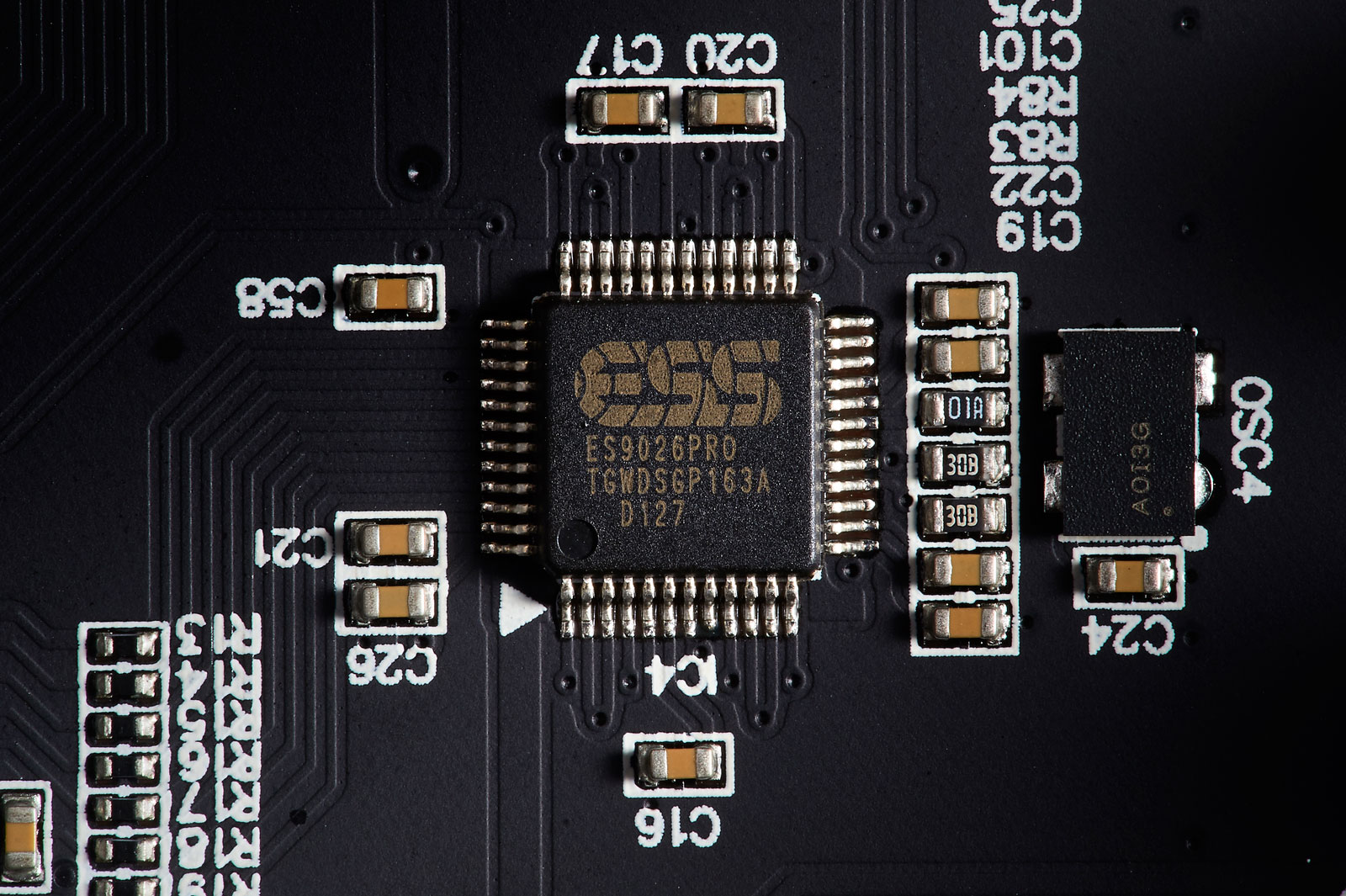

High-performance DAC-ESS ES9026PRO.
USB DAC: PCM 32 bit/384kHz and DSD DSD64(DoP)/DSD128 (DoP) DSD64/DSD128/DSD256 (ASIO
Native).
COAXIAL/OPTICAL DAC: PCM 24 bit/192kHz and DSD DSD64(DoP).
Placed Balanced/Unbalanced Headphone output: Max Output Power 2000mW +
2000mW@32ohms.
Placed RCA/XLR Input/Output interface: Could be a Preamplifier.
Volume Control System: 128 step attenuator. Accurate control volume to achieve
left/right channel balanced.
Isolation circuit: Completely separates the grounding of the digital and analog
sections.
Volume/Source/Sampling display using OLED has excellent visibility.
The 4mm thickness of the aluminum chassis to effective to blocks EMI/RFI
interference.
The full-metal body realizes both vibration control and elegant style in an
A4-size body that enables placement on a desktop to
be a PC HIFI system or to be a small stereo system.
Windows USB drivers Digital Input
COAXIAL PCM support up to 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz.
DSD support up to DSD64 (DoP).
OPTICAL PCM support up to 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz.
DSD support up to DSD64 (DoP).
USB PCM support up to
16-32Bit/44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz. DSD
support up to DSD64(DoP)/DSD128 (DoP) DSD64/DSD128/DSD256 (ASIO Native)
Analog Input
XLR
Input Impedance: 47k Ω.
Max Input Level: 10Vrms.
Input/Output Gain: 0dB
RCA
Input Impedance: 47k Ω.
Max Input Level: 5Vrms.
Input/Output Gain: 0dB
Analog Output
XLR
SNR: ＞-122dB 20Hz-20kHz A-Weighting.
THD+N: ＜0.0004% at 1kHz A-Weighting.
Frequency Response: 20Hz-20kHz(+0dB/-0.09dB).
Channel Crosstalk: ＞-124dB@1kHz.
XLR output: 0-4Vrms Adjustable at 0dBFS.
RCA
SNR: ＞-119dB 20Hz-20kHz A-Weighting.
THD+N: ＜0.0007% at 1kHz A-Weighting.
Frequency Response: 20Hz-20kHz (+0dB/-0.03dB).
Channel Crosstalk: ＞-122dB@1kHz.
RCA output: 0-2Vrms Adjustable at 0dBFS.
Headphone Output
XLR_4PIN
SNR: ＞-120db 20Hz-20kHz A-Weighting.
THD+N: ＜0.00115% at 1kHz A-Weighting at 300ohms 100mW.
Frequency Response: 20Hz-20kHz (+0dB/-0.09dB).
Output Impedance: 0.6ohms.
Output Power: 2000mW at 32ohms at THD+N=0.1%.
1200mW at 300ohms at THD+N=0.1%.
650mW at 600ohms at THD+N=0.1%.
6.35mm
SNR: ＞-108db 20Hz-20kHz A-Weighting.
THD+N: ＜0.0015% at 1kHz A-Weighting at 300ohms 100mW.
Frequency Response: 20Hz-20kHz (+0dB/-0.09dB).
Output Impedance: 0.6ohms.
Output Power: 1200mW at 32ohms at THD+N=0.1%.
350mW at 300ohms at THD+N=0.1%.
175mW at 600ohms at THD+N=0.1%.
AC Input Voltage
110V-120V, 60Hz / 220V-240V, 50Hz (Switchable)
Power Consumption 30 Watts
Casing 4mm Aluminum
Dimension (WxDxH) 300x220x66mm
Weight
4KG

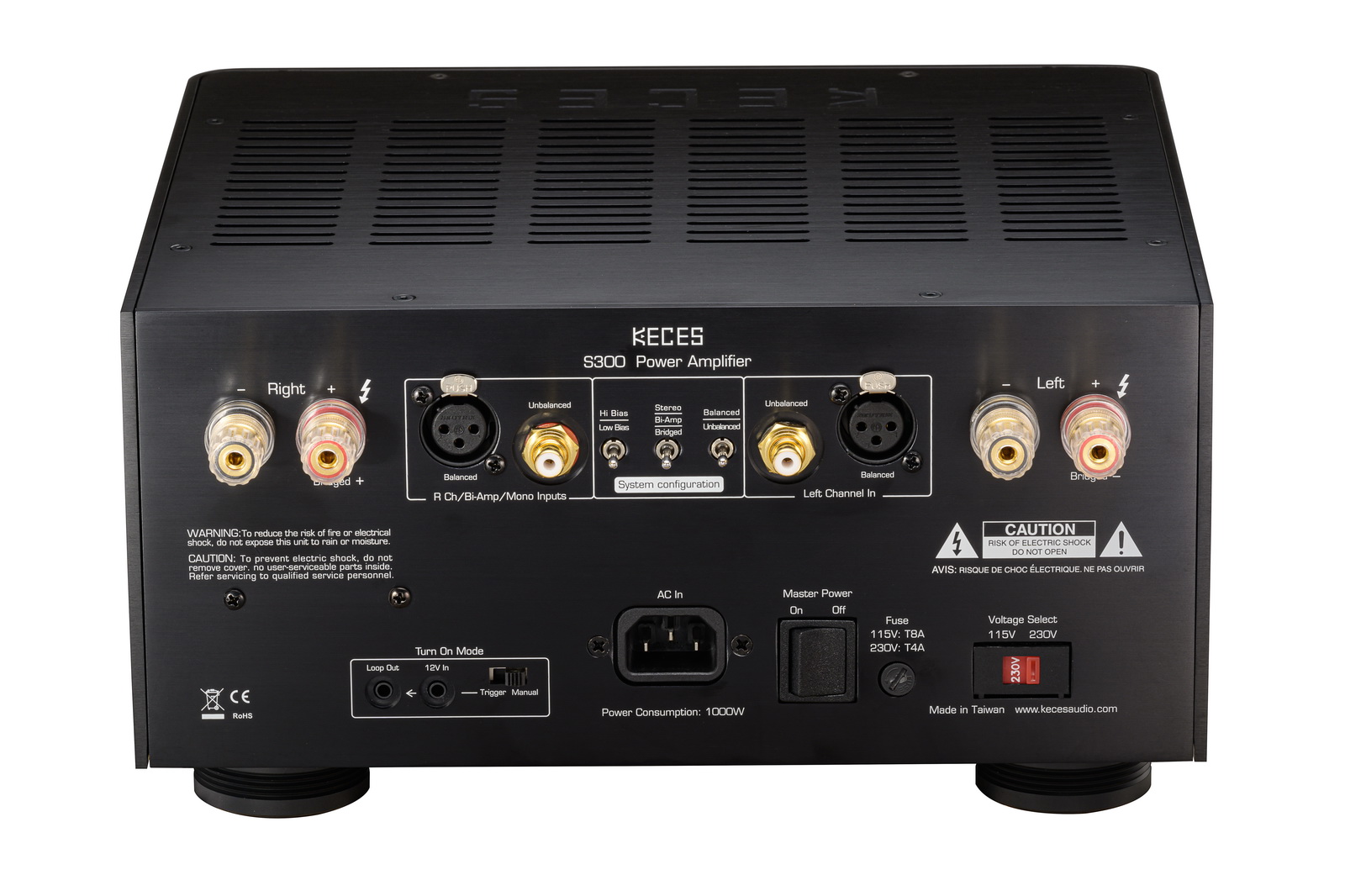

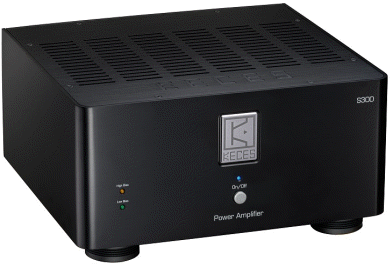

KECES
S300
Listino ufficiale
€. 3.200,00
2 OZ Copper PCB forPower Layer,
Ground Layer and Signal Layer to get high damping factor and get more sound
quality.
130 watts x2 @ 8 ohm continuous output power / Maximum output power 240 watts x2
@ 8 ohm
225 watts x2 @ 4 ohm continuous output power / Maximum output power 300 watts x2
@ 4 ohm
410 watts x1 @ 8 ohm in bridge mode
High bias Class A/AB operation
5 watts per channel of pure Class A power at high bias setting
45 amperes peak current per channel
Stable with speaker impedance dips below 2 Ω
Operation model selection: Stereo, Bi-Amp, Bridged
Dual-mono design
Direct-coupled signal path, no capacitors or inductors
DC Servo and relay protection circuits
JFET input stage, MOSFET driver stage
1.2 kVA toroid power transformer with independent secondary windings for each
channel
Independent power supplies for left & right channel input stages, driver. stages,
output stages
65,600 µF Rubycon filter capacitors for output stages
Automatic turn-on by 12 V trigger
Neutrik locking XLR input connectors
Heavy-duty 24K gold-plated RCA input jacks
Heavy-duty 24k gold-plated 5-way speaker binding posts
AC turn-on inrush surge protection
Overload/Over Temperature Protection
The 4mm thickness of the aluminum chassis to effective to blocks EMI/RFI
interference Power Output 130 watts x2 @ 8 ohm continuous output power
Maximum 240 watts x2 @ 8 ohm 225 watts x2 @ 4 ohm continuous output power
Maximum 300 watts x2 @ 4 ohm BTL: 410W x1 @ 8 ohm Power bandwidth 5Hz - 160kHz,
+0/-3dB 10Hz - 20kHz, +0/-0.1dB Current capacity 45 amperes peak per channel
Total harmonic distortion (THD+N) <0.04% at full power <0.004% at 60 watts S/N R
110dB, input shorted, IHF A-weighted 101dB, input shorted, unweighted
Inter-channel Crosstalk >100 dB at 1kHz >82 dB at 20kHz Gain 26 dB Input
sensitivity Unbalanced: 1.6V Balanced: 0.8V per leg Input Impedance Unbalanced:
50k ohm Balanced: 100K ohm Damping Factor >1500 at 20 Hz-1K Hz Power Requirment
Standby: 0.5 Watt Maximum: 1000 Watts Casing All Aluminum Dimension (WxDxH)
300x279x133mm Weight Net Weight 14KG Shipping Weight 16KG
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg)
.jpg)
.jpg){kind=small}
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
/KECES%20S3%20(2).jpg){kind=small}
/KECES%20S3%20(3).jpg){kind=small}
/KECES%20S3%20(4).jpg){kind=small}
/KECES%20S3%20(5).jpg){kind=small}
/KECES%20S3%20(6).jpg){kind=small}
/KECES%20S3%20(7).jpg){kind=small}
