Over 20 years on, it’s easy to underestimate the impact
the first audiolab products had on the market, but the original 8000A certainly
shook up a cosy British audio industry: here was an amplifier designed with the
kind of facilities consumers wanted, yet still able to deliver a sound to please
audiophiles.
And it sold for a bargain £250, pitching it against market leaders like the A&R
Cambridge A60, not to mention the Japanese competition.The founders of Audiolab, Philip Swift and Derek Scotland, had been involved in
the audio industry for some time, working on the fondly-remembered Lentek
amplifiers and speakers for the Mission brand, which has recently joined
audiolab as a stablemate. They’d also been working on a personal project: an
amplifier designed to offer ‘oustanding sound quality at a modest cost’, and
perform reliably with a wide range of speakers under real world conditions.8000A LaunchedThe development process involved an attempt to measure performance and correlate
this with perceived sound quality, and the intention was to develop an amplifier
that was foolproof, fully-equipped and yet capable of high standards of
performance.At the same time, amplifiers fell into one of two camps:
‘Fully-loaded’ with facilities and sounding so-so, or simple ‘hairshirt’ designs
that were capable of sounding great, but inconvenient to live with.The 8000A was launched in 1983, and featured high-quality tone controls, a
phono-stage for turntables, and a choice of direct or switched speaker outlets.
The direct connection gave the best sound, the switched one made life simpler
for headphone users.And right from the start, the amplifier was designed to be the start of a
complete Audiolab system: a link could be broken between the preamp and power
amplifier, allowing an upgrade with a power amp. At the time the connections
were on the then-fashionable DIN multi-pin sockets; it wasn’t long before the
conventional phono sockets we all know made their appearance. All Audiolab products embody a no-nonsense, practical
approach to high-quality audio. Each model is engineered to be best in class
without emphasis. The simple philosophy of high specification components,
excellent build and construction, innovative circuit topology and a ruler flat
response are applied throughout our product development.We have extended the
famous 8000 series of electronics with Home Cinema products - an advanced AV
pre-amplifier and 7 channel power amplifier.
.gif)
.gif)
AUDIOLAB 6000
A
Listino ufficiale
€. 949,00
AUDIOLAB 6000
PLAY
Listino ufficiale
€. 1.149,00
Amplificatore integrato stereo 2 X 50 W (8
ohm), 2 X 75 W (4 ohm), DAC ESS 32 9018 (32bit / 384kHz, DSD 256), 1 ingresso
Phono MM, 2 uscite pre out, 2 ingressi digitali, 5 ingressi di linea RCA,
distorsione armonica (THD) minore di 0,004%, risposta in frequenza 20Hz-20kHz (±
0,1dB), telecomando, dimensioni 445 x 65,5 x 300mm, peso 7.8kg, finitura Black o
Silver.
Versione Play Amplificatore integrato
stereo di rete wi-fi con tecnologia DTS Play-Fi 2 X 50 W (8 ohm), 2 X 75 W (4
ohm), DAC ESS Sabre32 ES9018K2M Reference, streaming lossless 192kHz/24-bit,
Bluetooth, 1 ingresso Phono MM, uscite pre out, 4 ingressi digitali, 4 ingressi
analogici, distorsione armonica (THD) minore di 0,003%, risposta in frequenza
20Hz-20kHz (-0,3dB), telecomando, dimensioni 445 x 65,5 x 300mm, peso 7.9kg,
finitura Black o Silver.
An amplifier remains the beating heart of any
high-performance audio system, but in 2018 a truly versatile integrated amp
needs to cover many bases – digital and analogue sources, wireless connectivity
for portable devices, a phono stage to cater for vinyl playback, amplification
for headphones as well as speakers… That’s a lot to pack in, whilst keeping
performance high and the price tag affordable – and yet, that’s exactly what the
6000A delivers. Specifications Gain (max.) +8dB (Line) +55dB (Phono MM) Input
Sensitivity 720mV (Line, Volume = 0dB) 3.1mV (Phono MM, Volume=0dB) Input
Impedance 10K (Line) 47K//100pF (Phono MM) Total Harmonic Distortion (THD) <
0.0004% (Line, 1KHz @ 2V, Volume = 0dB) Frequency Response 20Hz-20kHz (+/-0.1dB)
Output Voltage 2.3V max. (Volume = 0dB) Output Impedance 120 ohm Signal-to-Noise
Ration (S/N) > 110dB (Line, A-weighted) >76dB (Phono MM, A-weighted) DAC D to A
converter ES9018K2M Total Harmonic Distortion (THD) < 0.0006% (1KHz @ 0dBFS)
Output level (0dBFS, 1KHz) 2.05V Max. Sampling Frequency 192KHz Signal-to-noise
ratio (S/N) > 112dB (A-weighted) Digital Filters Fast Roll-off , Slow Roll-off ,
Minimum Phase Power Amplifier Section Gain +29dB Rated Max. Power Output 2 X 50W
(8 ohm, THD<1%) 2 X 75W (4 ohm, THD<1%) Frequency Response 20Hz-20kHz (+/-0.3dB)
Input Sensitivity 720mV Total Harmonic Distortion (THD) <0.003% (1kHz @
40W/8ohm) Signal-to-Noise ratio (S/N) > 110dB (A-weighted) Max. Output Current
9A Headphone Amplifier Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW)
Output Impedance 2.35 ohm Load impedance 20-600 ohm General Standby Power
Consumption <0.5W Power Requirements 240V ~ 50 - 60Hz 230V ~ 50 - 60Hz 115V ~ 50
- 60Hz 100V ~ 50 - 60Hz Dimensions (mm) (W x H x D) 445 x 65.5 x 300 Carton Size
(mm) (W x H x D) 512 x 467 x 146 Weight 7.8kg (Net
.gif)
.gif)
AUDIOLAB 8300
A
 Listino ufficiale
€. 1.469,00

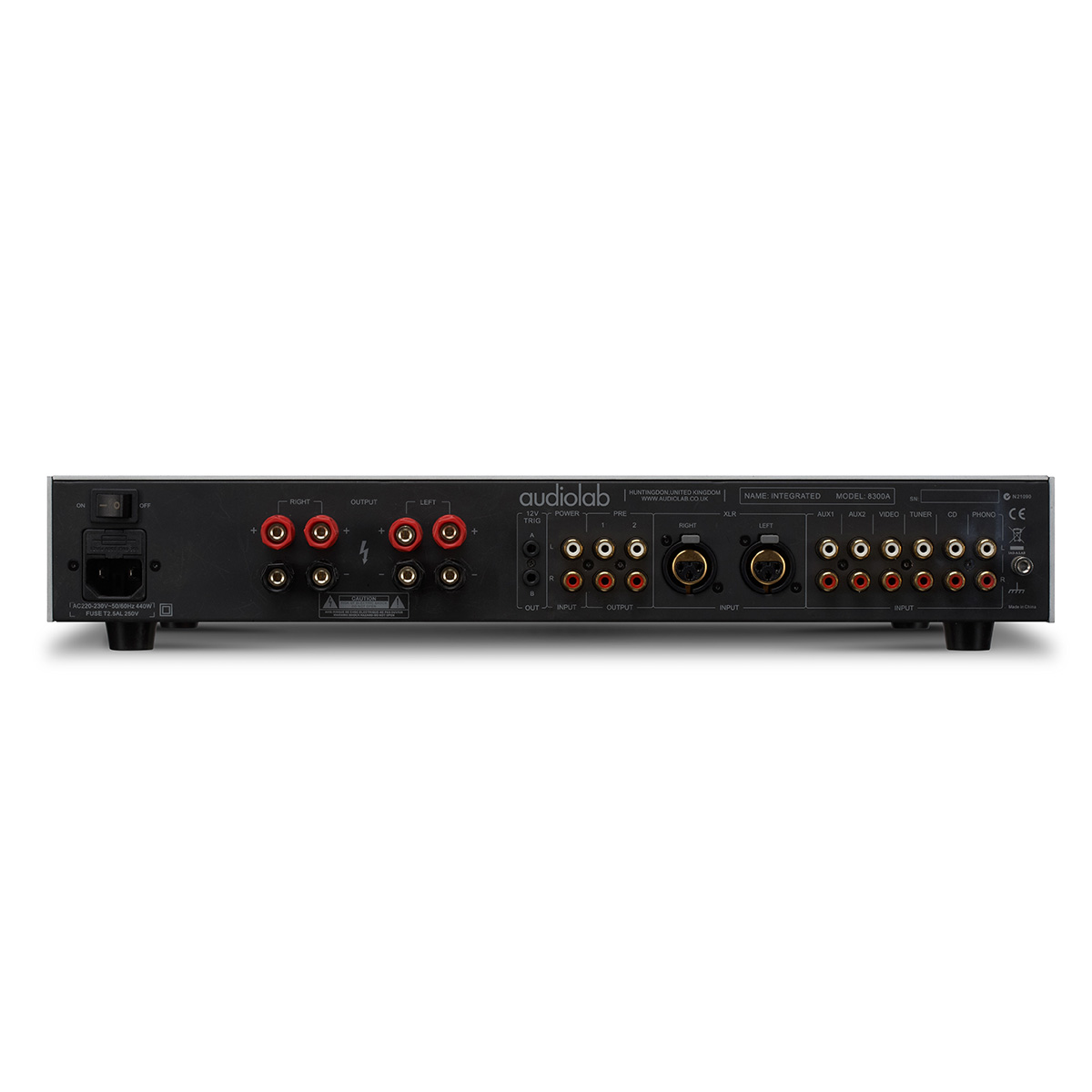

Amplificatore integrato a due canali dual mono,
75W per canale su 8ohm,potenziometro ALPS, ingresso phono MM/MC, sei ingressi
sbilanciati RCA, un ingresso bilanciato XLR, ingresso main in, uscita pre out,
recout e monitor, uscita cuffia, distorsione armonica minore di 0,002%, risposta
in frequenza 20Hz-20kHz (�0.5dB), telecomando, dimensioni 445 x 80 x 330mm,
peso 7.8kg, finitura Black o Silver.

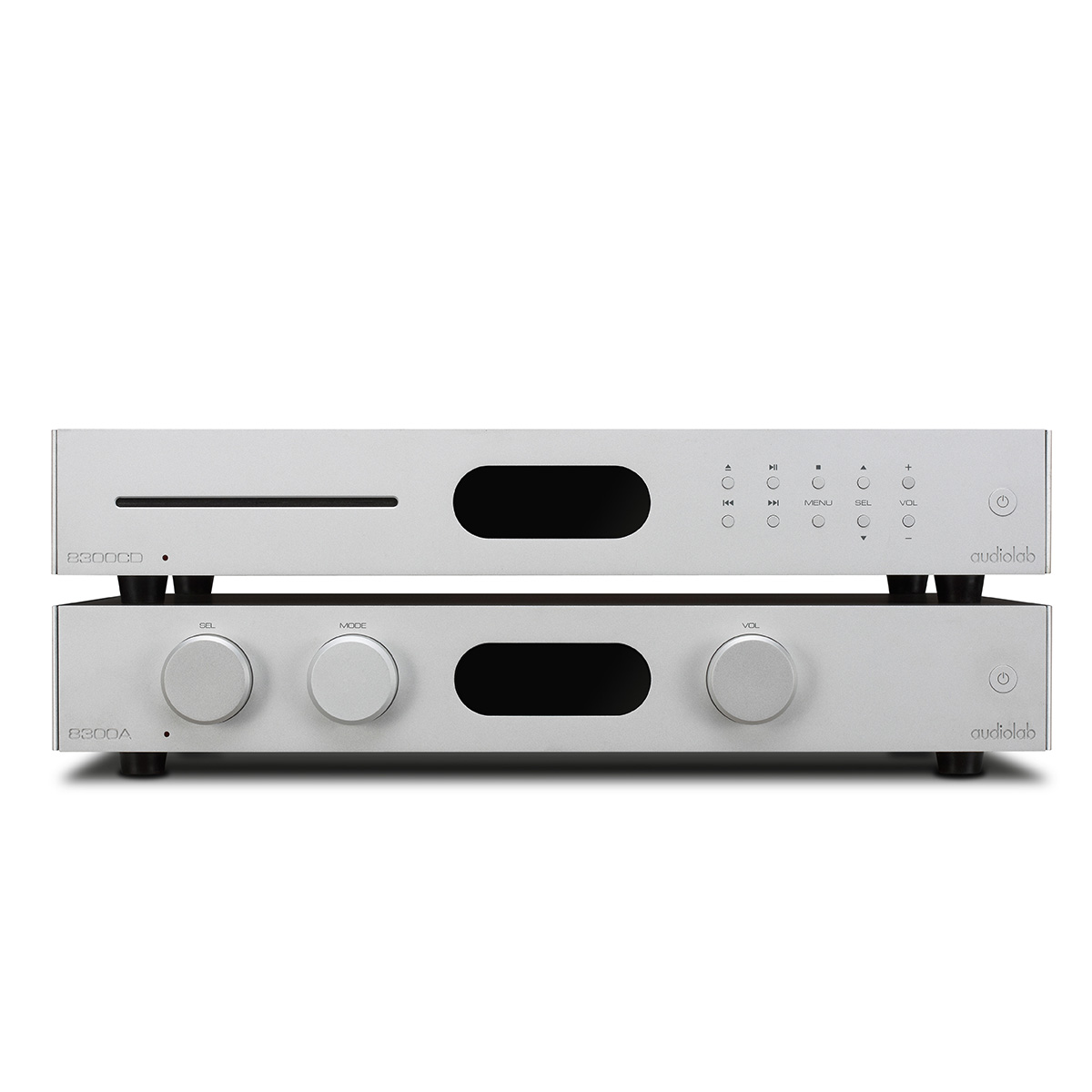

8300 SeriesIn the all-new Audiolab 8300 Series, we’ve asked fundamental
questions about how people enjoy the music they love and to make sure their
hi-fi is as easy to use as it is easy on the ears.
While our engineers have referenced the blueprint of the 8200, each component
has come under scrutiny to create a hi-fi system leaps ahead of what is already
a leader in its field. With more efficient components, high- definition audio
format technology and redefined aesthetics, the 8300 Series has raised the bar,
yet again. Audiolab proudly present the new 8300A, 8300CD and 8300MB.8300ACompletely
redesigned from scratch, our new integrated amplifier, the 8300A is miles ahead
of what was already an industry-leader. Higher power, an additional phono stage
and new Audiolab styling means the amplifier is more stylish and more versatile
than ever. Most importantly it's new, ultra-efficient circuitry and streamlined
components create a listening experience which brings new definition to your
favourite music Specifications
General description Integrated Amplifier Design philosophy and core
technology Dual Mono Power Amp Design Display OLED 128x64 pixels 2.7"
Controls Logarithmic Ladder Volume Design Finish Fine Textured Aluminium
(Black / Silver) Standby Features Yes 12V Trigger Yes Phono
Yes (MM/MC) Balanced XLR Input Yes Pre-amplifier Section
Inputs CD, Video, Tuner, Aux 1, Aux 2, XLR (Balanced) & Phono Outputs 2 x
RCA Input sensitivity (Phono RIAA) 50K // 100pF Input impedance
(line inputs) 50K // 100pF Input impedance (phono inputs) 47K // 100pF
(MM), 100R // 1.5nF (MC) Output voltage 2.3V max. (< 0.02% THD)
Output impedance 120 ohm Frequency response (Line) +/- 0.1dB (10Hz - 20kHz)+/-
3.0dB (1Hz - 100kHz) Frequency response (Phono RIAA) +/- 1.0dB (20Hz - 20kHz)
Channel Imbalance < 0.2dB (10Hz - 20kHz) Total harmonic distortion (THD)
Line <0.001% Total harmonic distortion (THD) Phono <0.002%
Signal-to-noise ratio (Line) > 107dB >109dB(A-weighted)
Signal-to-noise ratio Phono (MM) > 73dB > 78dB(A-weighted) Signal-to-noise ratio
Phono (MC) > 68dB > 73dB(A-weighted) Crosstalk < 80dB (L-> R & R->L
@10KHz) Power amplifier Section Gain 29dB (20Hz-20KHz) Input
Sensitivity 840mV (Power Out = 70W into 8ohm) Input impedance 15K // 100pF
Rated max power output THD < 1% 2 x 75W RMS (8 ohm) , 2 x 115W (4 ohm) (Vmains =
230V , THD < 1%) Peak output current +/- 15A Frequency response +/- 0.1dB
(10Hz – 20KHz) +/- 3.0dB (1Hz – 100KHz) Channel Imbalance < 0.2dB (10Hz – 20kHz)
Total harmonic distortion (THD) <0.002% (Power Out= 50W @ 1KHz, BW = 20Hz –
20kHz) Signal-to-noise ratio > 107dB (BW = 20 – 20KHz ) >109dB(A-weighted
BW = 20 – 20KHz) Damping factor >100 (8ohm Load @ 1kHz) Inputs 1 x
RCA Outputs Speaker Binding Post Terminals Dimensions 80 x 444 x
330.3mm Net weight 7.8kg
.gif)
.gif)

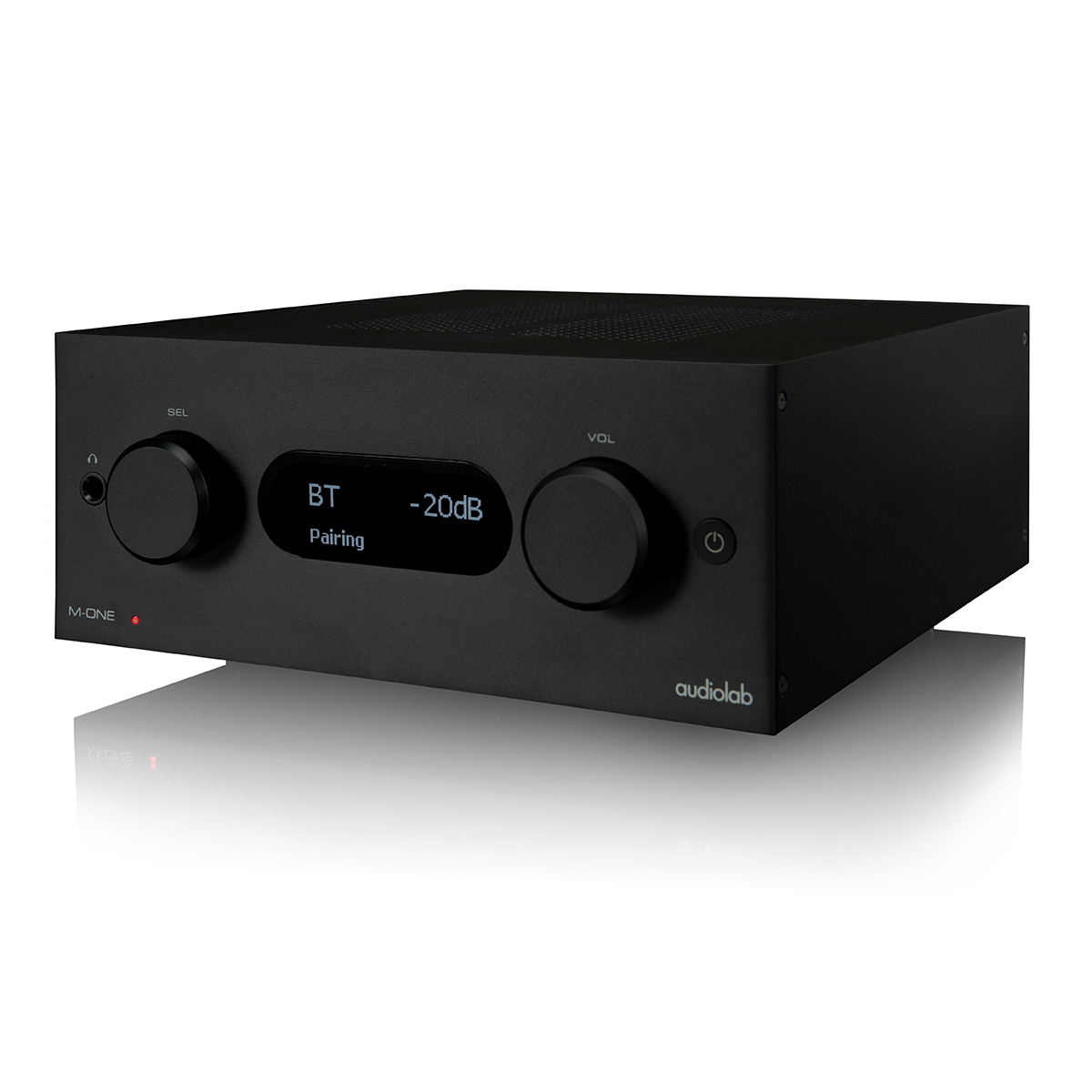

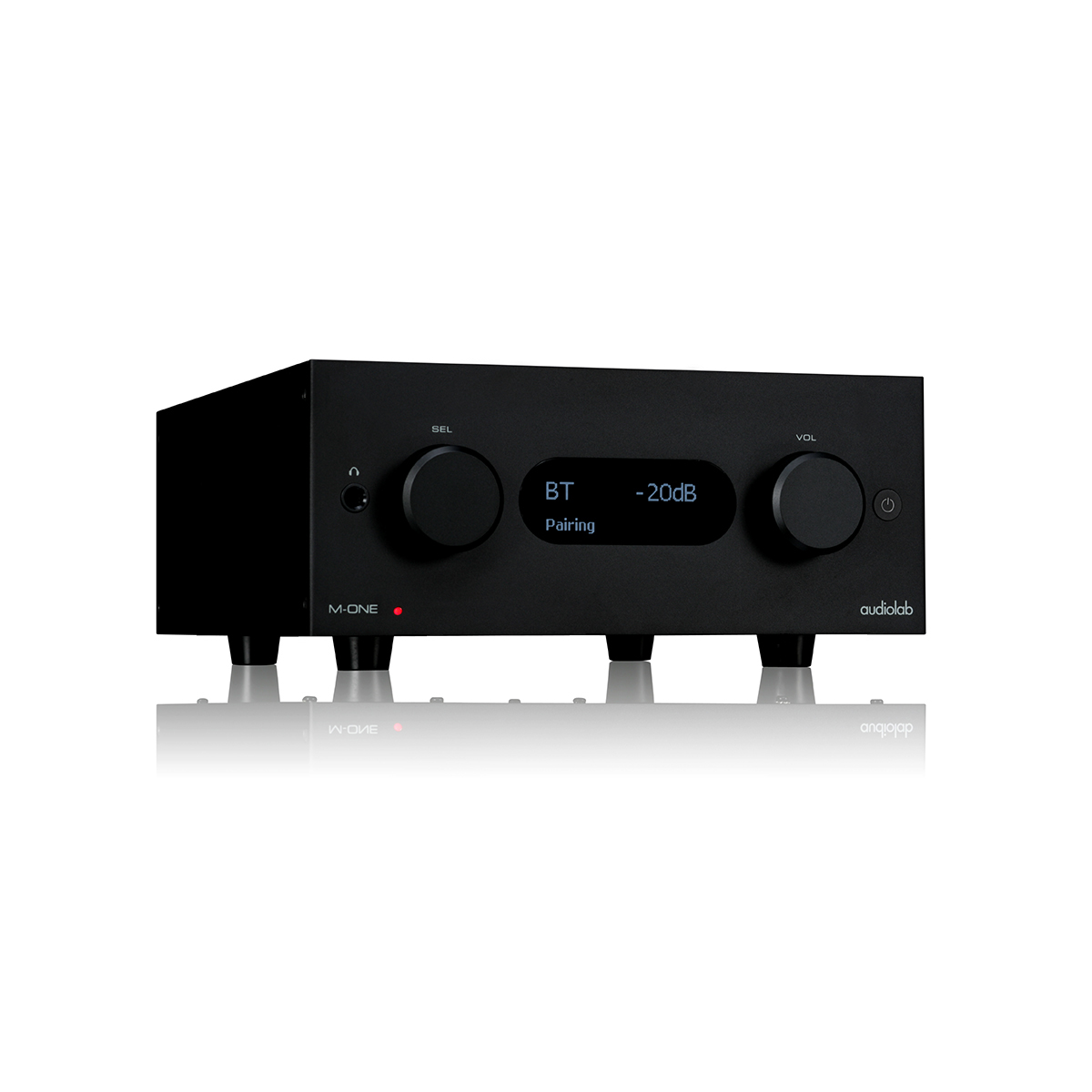

AUDIOLAB M-ONE
Listino ufficiale
€. 1.299,00
Convertitore digitale analogico amplificato stereo,
potenza 30W x 2 su 8 ohm, 60W x2 su 4 ohm, DAC Sabre a 32 bit ESS 9018,
compatibile DSD fino a DSD 11.2MHz, Bluetooth, 1 ingresso digitale ottico, 1
ingressi digitale coassiale, 2 ingressi RCA , uscita cuffie, telecomando,
dimensioni 247 x 114 x 295mm, peso 5.5kg, finitura Black o Silver

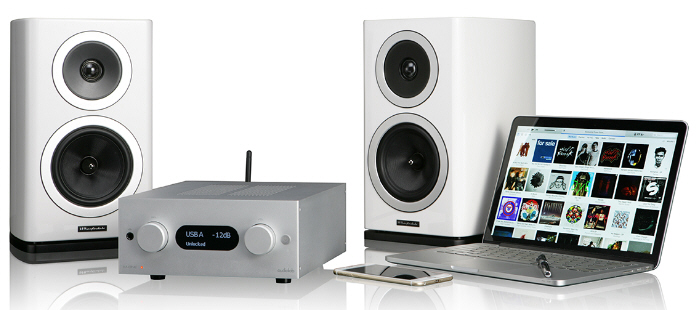

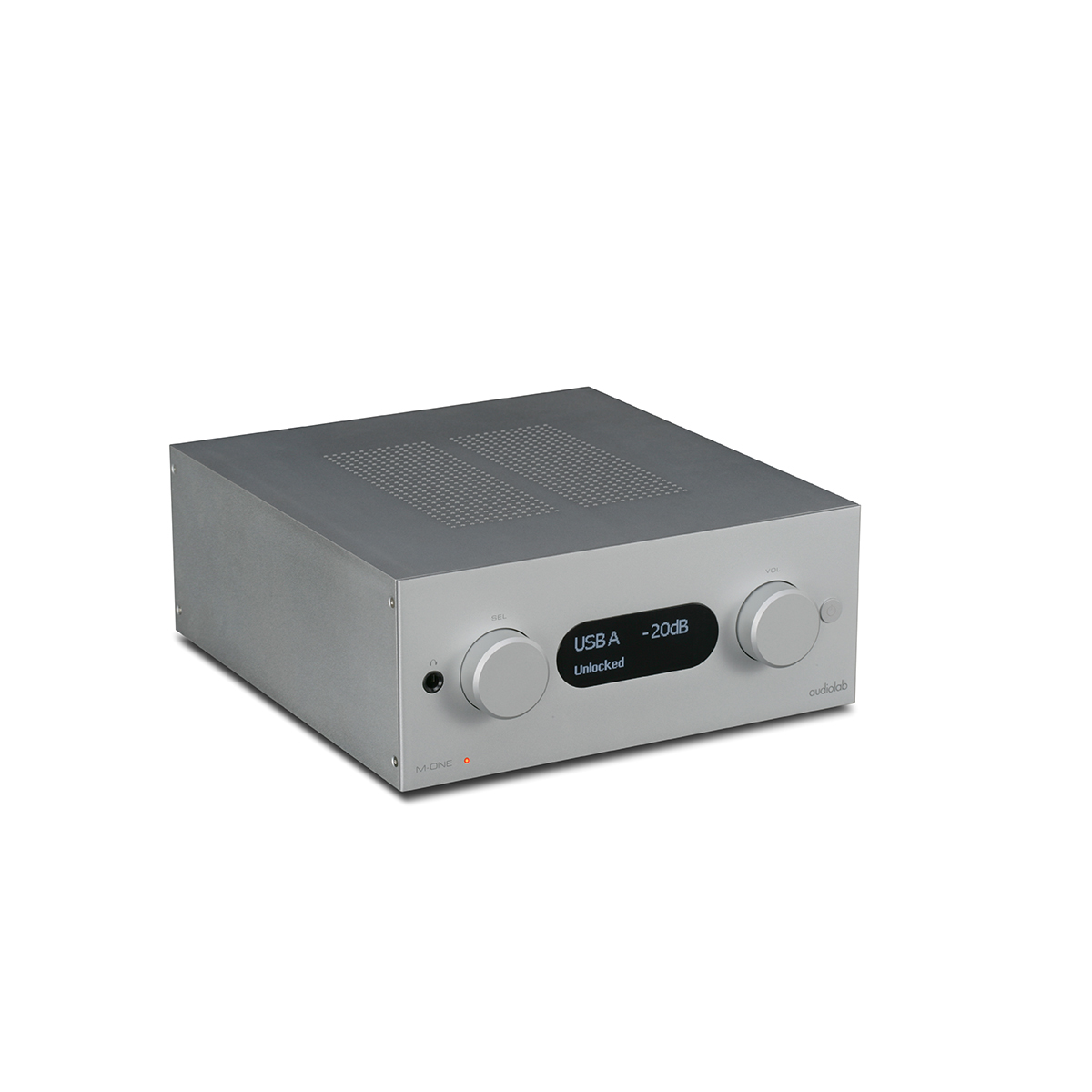

M-ONE The Audiolab M-ONE is a compact integrated amplifier - the latest addition
to the M-DAC family. While harnessing our acclaimed DAC and amp tech in a single
diminutive box, an array of connections, both analogue and digital, aptX
Bluetooth and USB ensure a thrilling sonic experience with up to 384kHz
resolution audio. Specifications General description Integrated Amplifier
with Bluetooth Sampling Rate 32-bit / 192kHz (Optical, Coaxial) 32-bit / 384kHz
(USB) 2.8MHz (DSD64), 5.6MHz (DSD128), 11.2MHz (DSD256) Input sensitivity 515mV
Input impedance 10K Inputs 1 x USB A for apple devices, 1 x USB B for computer,
1 x COAX, 1 x OPT, 1 x Bluetooth, 2 x RCA ,1 x headphone 12v Trigger YesPower
Output (8 Ohms) 2 x 40W Power Output (4 Ohms) 2 x 60WFrequency response (-3dB)
10-30kHz Total harmonic distortion (THD) 0.01% Signal-to-noise ratio (S/N) 81
(1W @ 1 kHz) Outputs Speaker Terminal Outputs Dimensions 114mm x 247mm x 292mm
Net weight 5.5kg

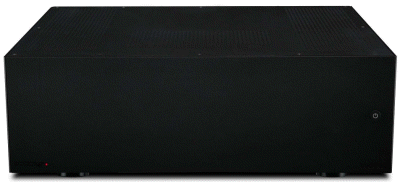

AUDIOLAB 8300
XP
Listino ufficiale
€. 1.899,00
Amplificatore di potenza stereo, 140W x 2 su 8
ohm, 230W x 2 su ohm, 480 W mono a ponte su 8 ohm, ingressi RCA e bilanciati XLR,
Rapporto S/R 113 dB, risposta in frequenza 20Hz-80 kHz (- 0.3dB), distorsione
armonica inferiore a 0,04% dimensioni 444 x 149 x 367mm, peso 14kg, finitura
Black o Silver
.gif)
.gif)

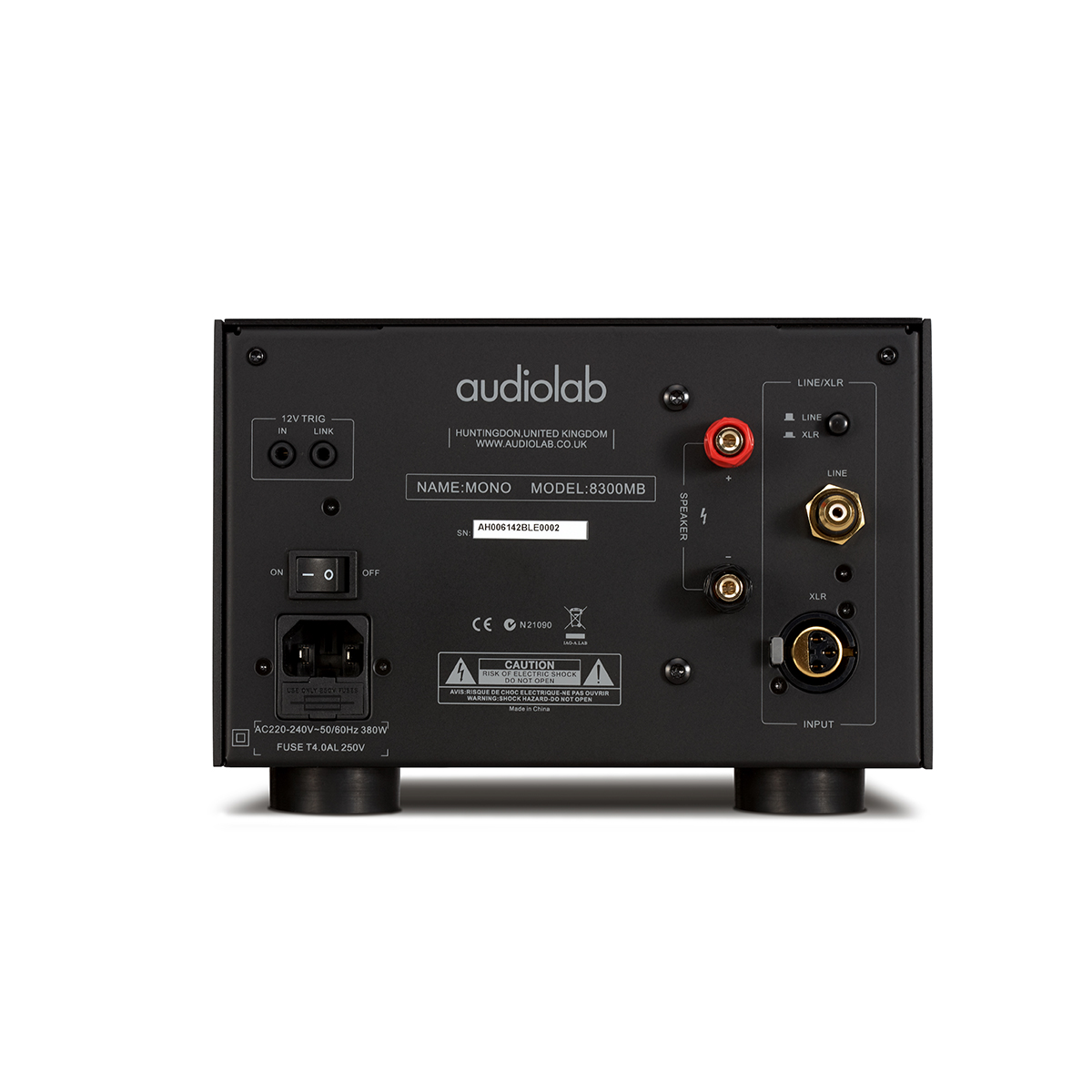

AUDIOLAB 8300
MB
Listino ufficiale
€. 1.299,00
Amplificatore di potenza monofonico, 250W su 8
ohm, 350W x2 su 4 ohm, ingressi RCA e bilanciati XLR, distorsione armonica
inferiore a 0,03% , rapporto S/R 110dB, risposta in frequenza 20Hz-20 kHz (-
0.3dB), mdimensioni 216 x 150 x 379mm, peso 9.5kg, finitura Black o Silver.

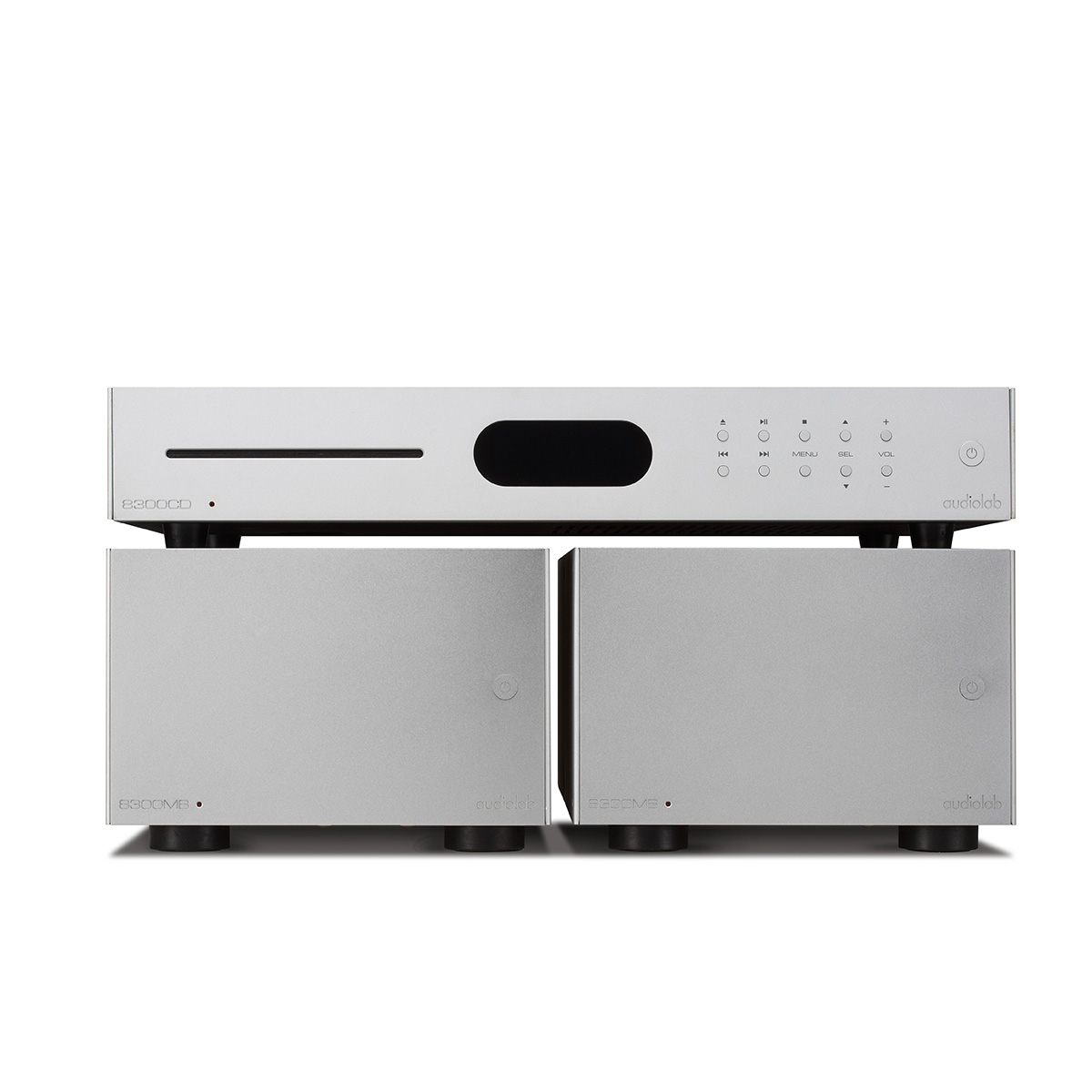

8300 SeriesIn the all-new Audiolab 8300 Series, we’ve asked fundamental
questions about how people enjoy the music they love and to make sure their
hi-fi is as easy to use as it is easy on the ears.
While our engineers have referenced the blueprint of the 8200, each component
has come under scrutiny to create a hi-fi system leaps ahead of what is already
a leader in its field. With more efficient components, high- definition audio
format technology and redefined aesthetics, the 8300 Series has raised the bar,
yet again. Audiolab proudly present the new 8300A, 8300CD and 8300MB.8300MB

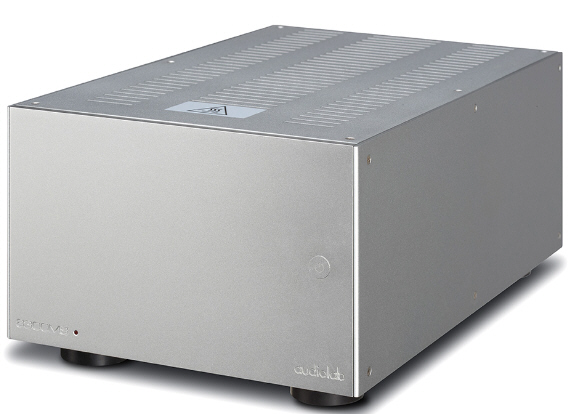

The 8300MB is a pocket powerhouse, housing 250W of pure, balanced amplification.
8300MB’s full power output is delivered into any loudspeaker load –
unconditionally. Massive reserves of power are available for high current drive
capability to power and control the mightiest of speakers.This latest
development of the Audiolab range now features a fully balanced power stage
making the most of the balanced XLR inputs. This makes 8300MB a perfect match
for the M-DAC using its balanced outputs, even over long cables.Specifications
Rated Power Output 250W RMS (8Ω) 350W RMS (4Ω) Peak Power Output 450W RMS
(4Ω) Gain 29dB Inputs XLR, RCA Outputs Speaker Input Sensitivity 1500mV Input
Impedance 44K ohm (balanced) 22K ohm (unbalanced) Power Bandwidth 5Hz - 60kHz
Frequency Response 20Hz ~20kHz -0.3dB ,ref. 1kHz Total Harmonic Distortion (THD)
0.003% Intermodulation Distortion (IM) 0.03% Transient Intermodulation
Distortion (TID) 0.03% Signal-to-Noise Ratio (S/N) 110dB Damping Factor 200
Dimensions 216 x 150 x 379mm Net Weight 9.5kg Standard Accessories Power Cord,
User Manual
AUDIOLAB 6000N
PLAY
Listino ufficiale
€. 589,00
Streamer di rete wi-fi con tecnologia DTS Play-Fi
DAC ESS Sabre32 9018K2M Reference, streaming lossless 192kHz/24-bit streaming
servizi Spotify, Tidal, HD Tracks, Deezer, Amazon Music, Napster, KKBox
configurabile in multi-room, Ethernet, uscite digitali ottica/coassiale, uscite
analogiche, dimensioni 445 x 315 x 65,5mm, peso 4,9kg, finitura Black o Silver
.gif)
.gif)
AUDIOLAB M-DAC
MINI
Listino ufficiale
€. 399,00
Convertitore digitale analogico portatile con
batteria fino a 5000mAh garantisce la potenza di alimentazione regolare dal
segnale digitale fino a quello analogico. Connesioni: uscite analogiche RCA ed
ingressi/uscite digitali coassiali ed ottiche. Risoluzione 32bit/384Khz fino a
DSD per riproduzione audio Hi-Res. Compatibilità Android/iOS/PC/MAC e include
Bluetooth aptX wireless. Colore: Black.
M-DAC mini Since the launch of the original M-DAC in 2011, Audiolab’s range of
standalone DACs has earned widespread acclaim and a host of awards from
respected audio journals around the world. Last year’s arrival of the
range-topping M-DAC+ and an all-in-one DAC/amp called the M-ONE extended the
family by building upon the same award-winning technology. Now another
contender has entered the ring, the fourth model in the M-DAC range: The M-DAC
mini. As the name suggests, the M-DAC Mini is the smallest hi-res DAC/headphone
amp in the range.SpecificationsGeneral description
Digital-to-Analogue Converter DAC ESS Sabre32 Reference ES9018K2M Sampling Rate
Optical,Coaxial: 192kHz; USB: 384kHz DSD64, DSD128, DSD256 Digital Input
Coaxial, Optical, USB micro-B for PC/Android, USB-A for iOS, Bluetooth
Digital Output Coaxial, Optical Output Voltage 5Vrms ±0.1 Frequency Response
20Hz - 20KHz (± 0.2dB) Signal to Noise Ratio 115dB （A Weighted） Battery Li-ion
Type DC 3.7V 5000mAh Playback Time Up to 7 hours Dimensions (mm) 34mm x 136mm x
178mm
.gif)

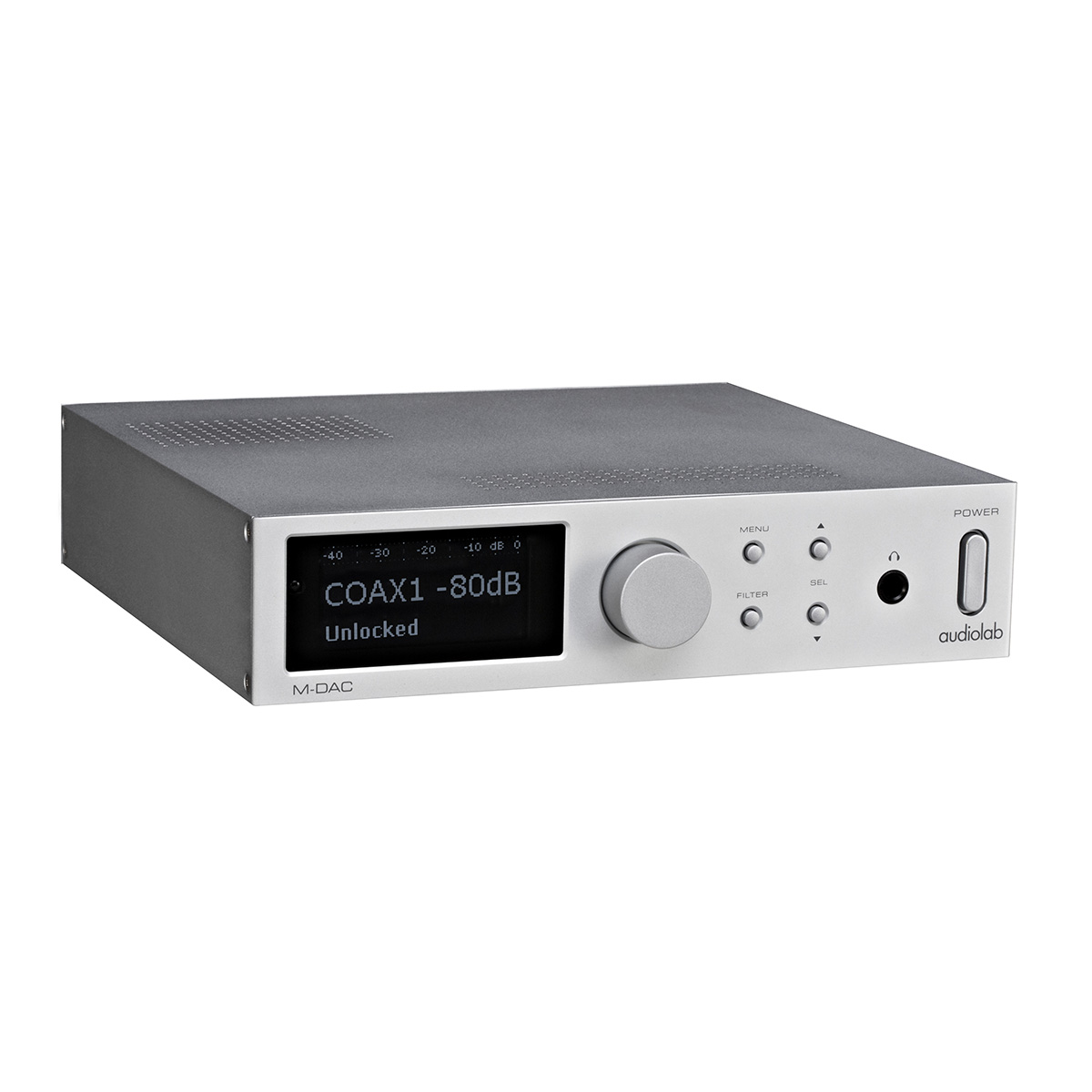

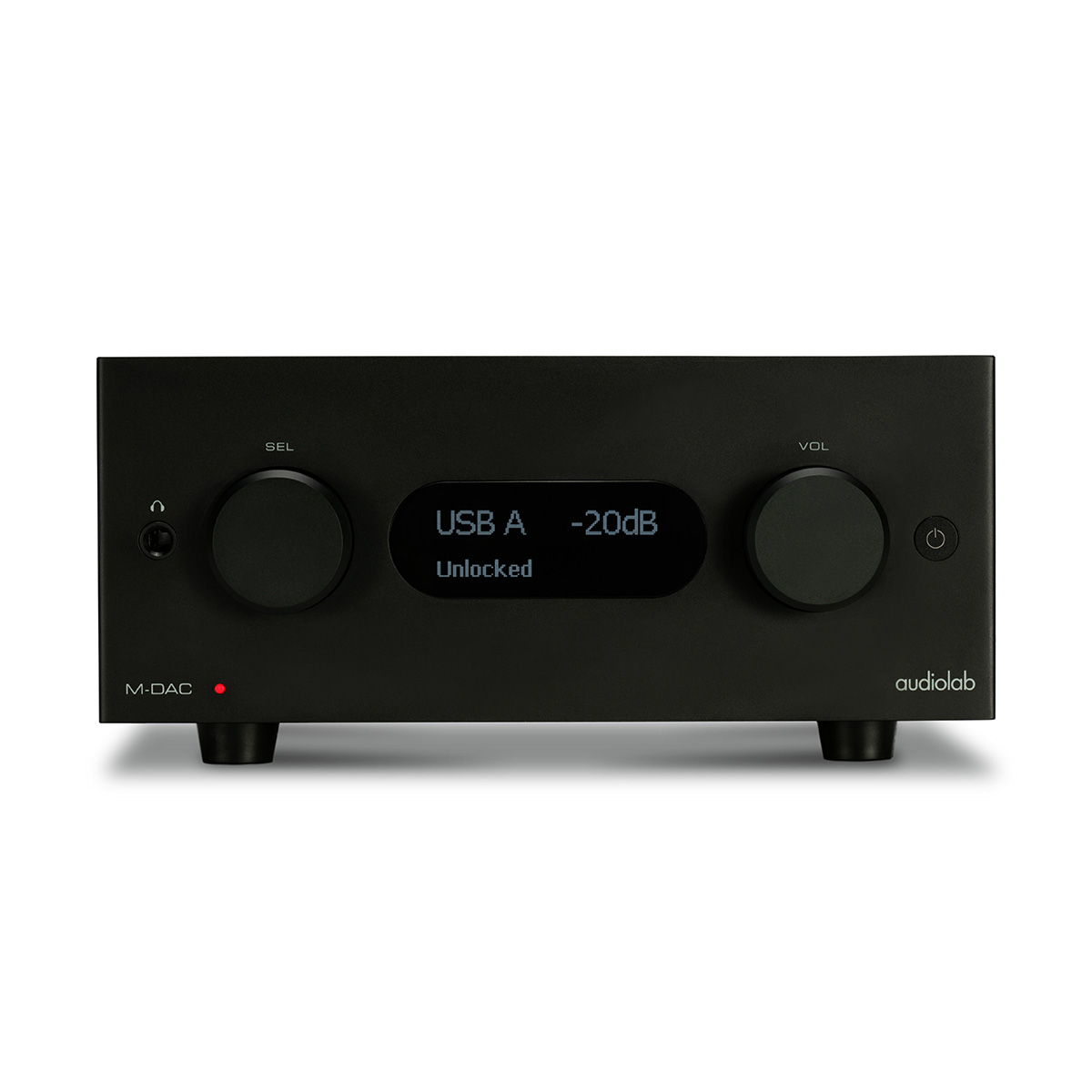

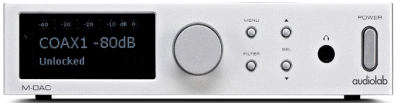

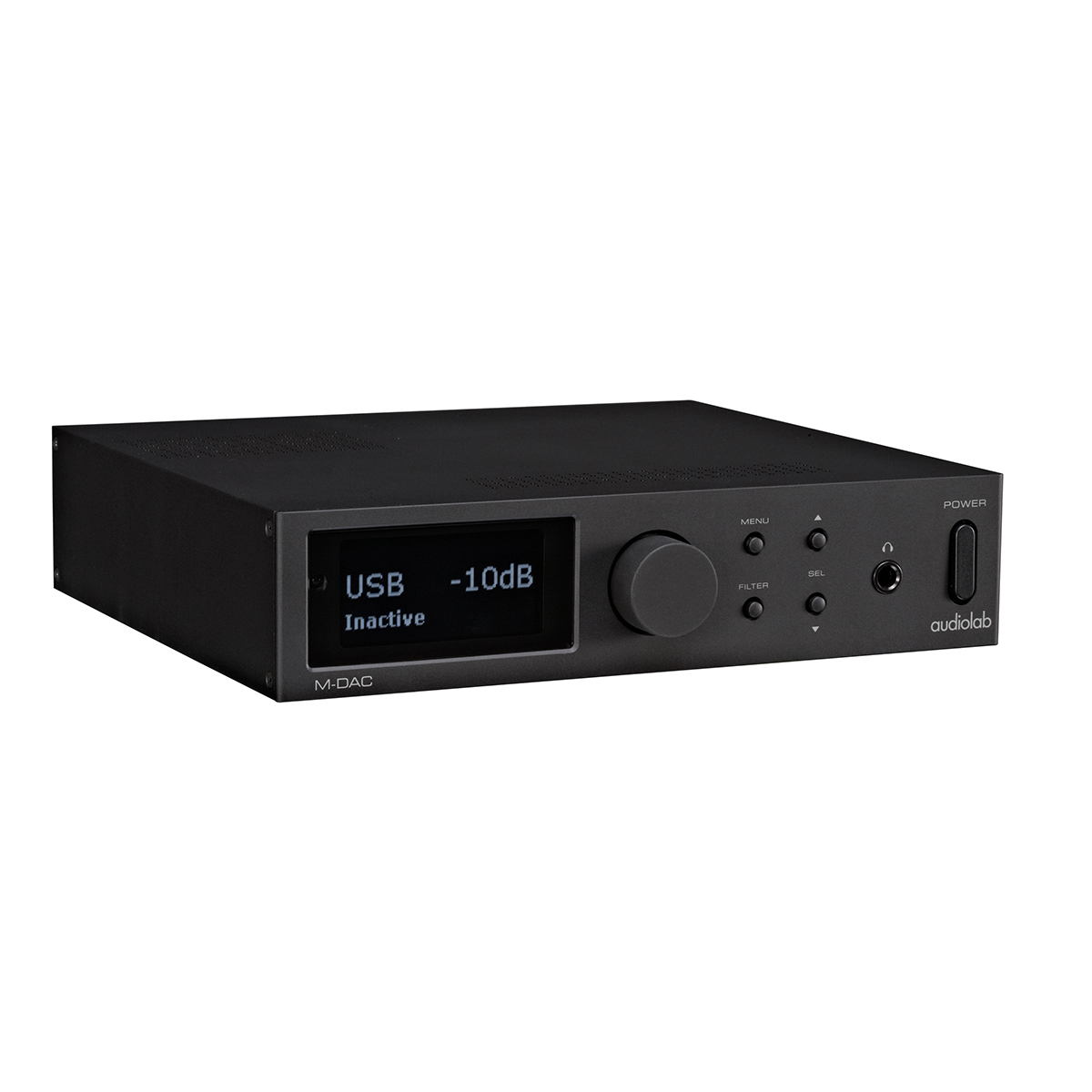

AUDIOLAB M-DAC
Listino ufficiale
€. 999,00
Convertitore digitale analogico con controllo
di volume, convertitori Sabre a 32 bit, sette filtri digitali selezionabili,
master clock proprietario, stadio di uscita a componenti discreti bilanciato e
in classe A, uscite bilanciate XLR e sbilanciate RCA, ingressi digitali
coassiali, ottici e USB 2.0 asincrona, telecomando, dimensioni 250 x 59 x 252mm,
finitura Black o Silver.
.gif)
.gif)

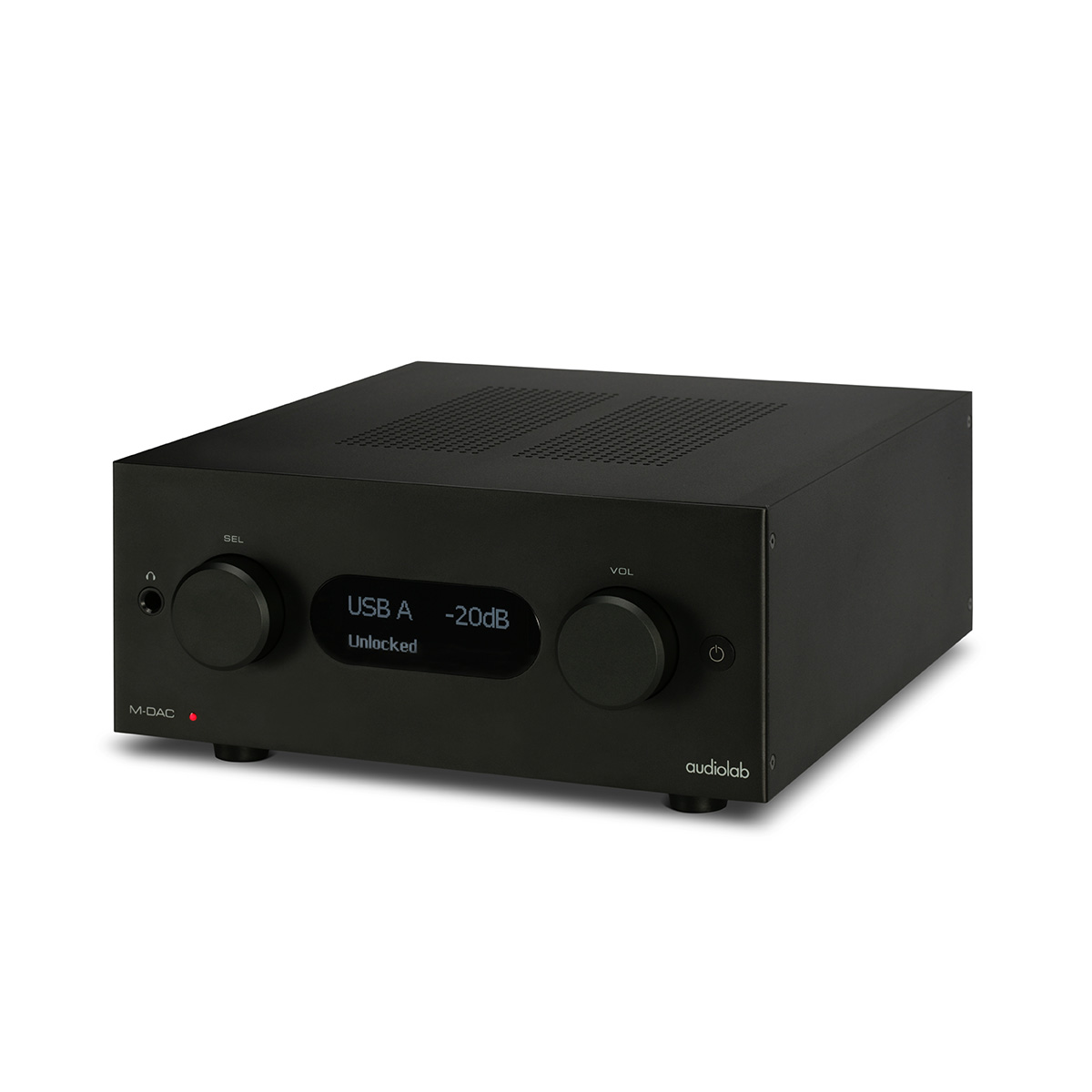

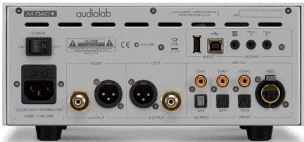

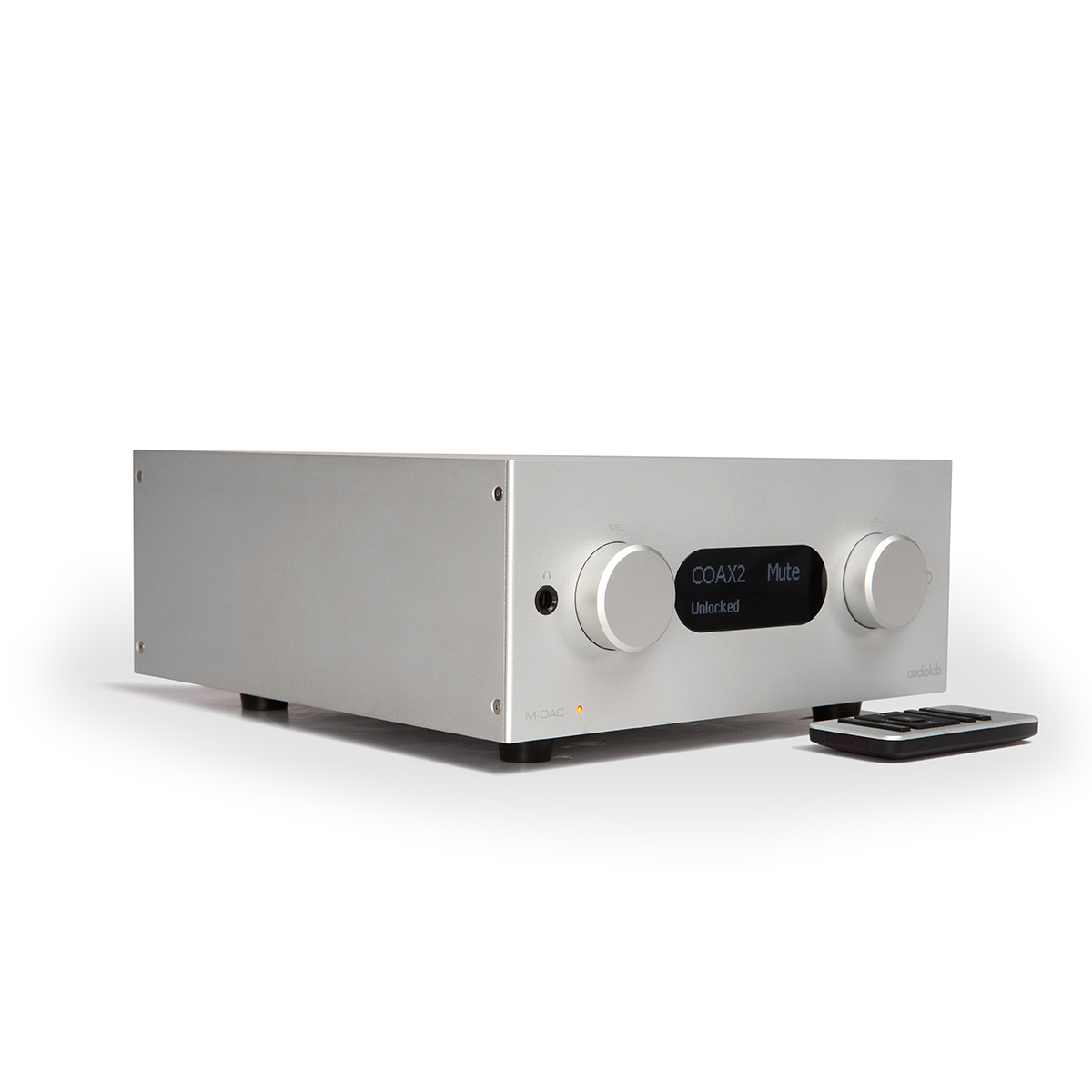

AUDIOLAB M-DAC+
Listino ufficiale
€. 1.349,00
Convertitore digitale/analogico, DAC Sabre a
32 bit ESS 9018, compatibile DSD fino a DSD 11.2MHz, 2 ingressi digitali ottici,
2 ingressi digitali coassiali, 1 ingresso digitale AES EBU, 2 ingressi USB ,
uscite analogiche bilanciate XLR, usciteanalogiche RCA, 1 uscita digitale
ottica, 1 digitale coassiale, telecomando, dimensioni 247 x 114 x 292mm, peso
3.7kg, finitura Black o Silver.
M-DAC+ The new M-DAC+ is a high-performance, multi-purpose audio DAC (Digital-to-Analogue
Converter) for home use, designed to sit on a desk or table, or integrate into a
hi-fi system. It incorporates a highly specified, audiophile-quality digital
preamplifier and Class A output stage for connection to a power amp and speakers
(the output can be fixed for those who wish to use an existing preamp or
integrated amp), in addition to a high-quality output for headphone use
Specifications General description Digital-to-Analogue Converter DAC ESS
Sabre32 9018 chip Sampling Rate 24-bit / 192kHz (Optical, Coaxial, AES)32-bit /
384kHz (USB)2.8MHz (DSD64), 5.6MHz (DSD128), 11.2MHz (DSD256)Digital Input 2 x
Coaxial, 2 x Toslink Optical, 1 x AES/EBU, 1 x USB for PC USB, 1x USB for iPod/iPhone/iPadDigital
Output 1x Coaxial, 1 x Toslink Optical Output Voltage Balanced: 4.5V RMS
Unbalanced: 2.25V RMS Output Impedance Balanced: 20Ω Unbalanced: 10Ω THD
(1kHz 0dB 20Hz - 20kHz A wtd) <0.002% Frequency Response 20Hz - 20KHz (± 0.2dB)
Signal to Noise Ratio RCA: > -115dB, XLR: > -120dB Dynamic Range RCA: > 115dB,
XLR: > 120dB Crosstalk RCA: > 120dB, XLR: > 130dB Dimensions (mm) 114mm x 247mm
x 292mm Net Weight 3.7kg
.gif)
AUDIOLAB 6000
CDT
Listino ufficiale
€. 589,00
Trasporto CD con slot di
caricamento dell'Audiolab 8300CD, uscite digitali, buffer digitale read-ahead
per ridurre i guasti di lettura del disco, lettura CD graffiati e danneggiati
illeggibili tramite meccanismi convenzionali, telecomando incluso. dimensioni
445 x 300 x 65,5mm, peso 5,4kg, finitura Black o Silver
The 6000CDT is a dedicated CD transport incorporating the same slot-loading
mechanism as audiolab’s flagship CD player, the 8300CD. Extremely robust and
reliable, it uses a read-ahead digital buffer to reduce disc-reading failures,
able to play scratched and damaged CDs that are unreadable by conventional
mechanisms.Specifications Digital
Output Voltage Level 600±50mVppFrequency response ≤0.01dB @ 20-20kHzOutput
Impedance 75±1 ohm Max Sampling Rate 44.1 KHzMax. Power Consumption 15WStandby
Power Consumption <0.5W Power Requirements 240V ~ 50 - 60Hz 230V ~ 50 - 60Hz
115V ~ 50 - 60Hz 100V ~ 50 - 60Hz Dimensions (mm ) (W x H x D) 445 x 300 x 65.5
- including feet, terminals and controls Carton Size (mm ) (W x H x D) 512 x
467x 146 Weight 5.4kg (Net)
.gif)
.gif)

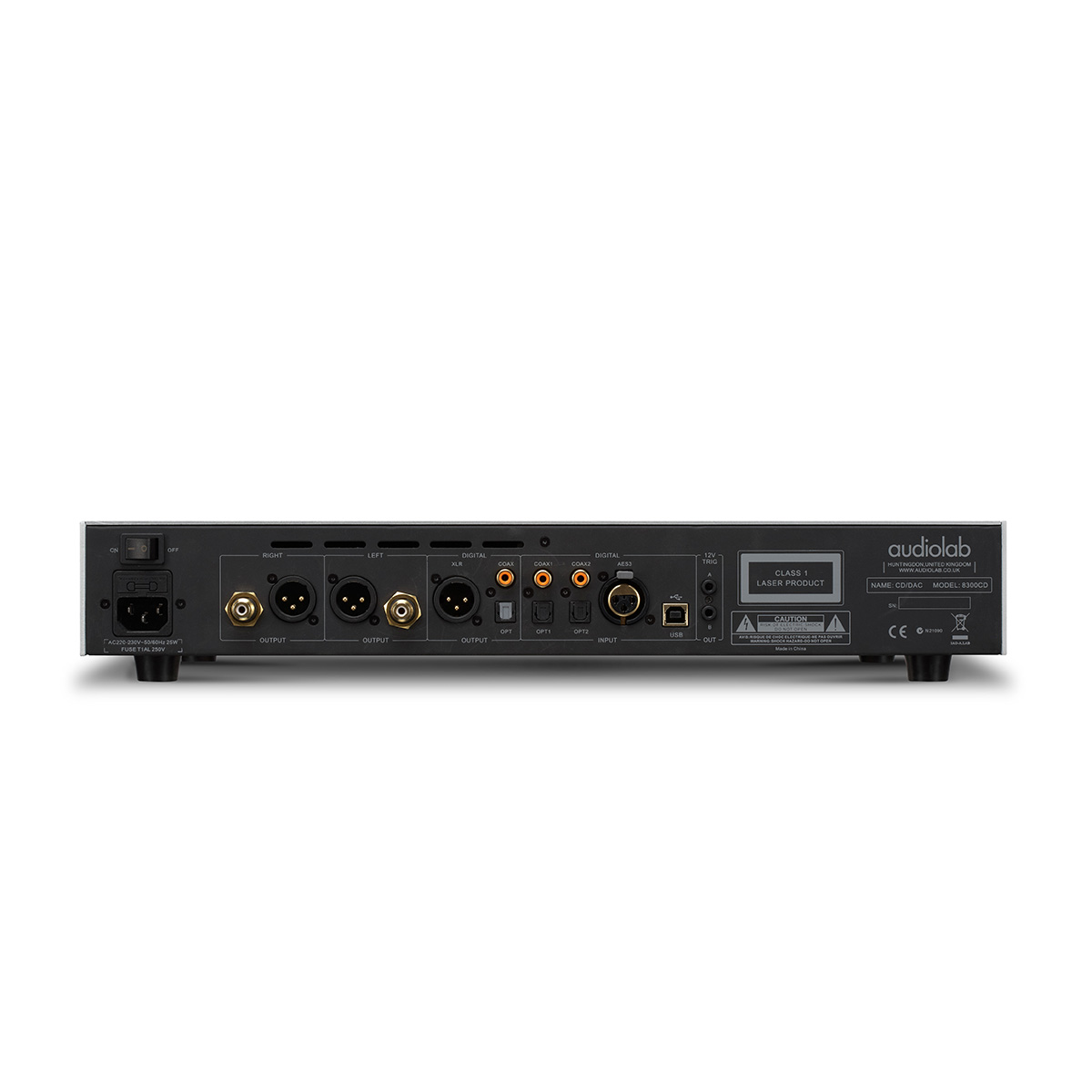

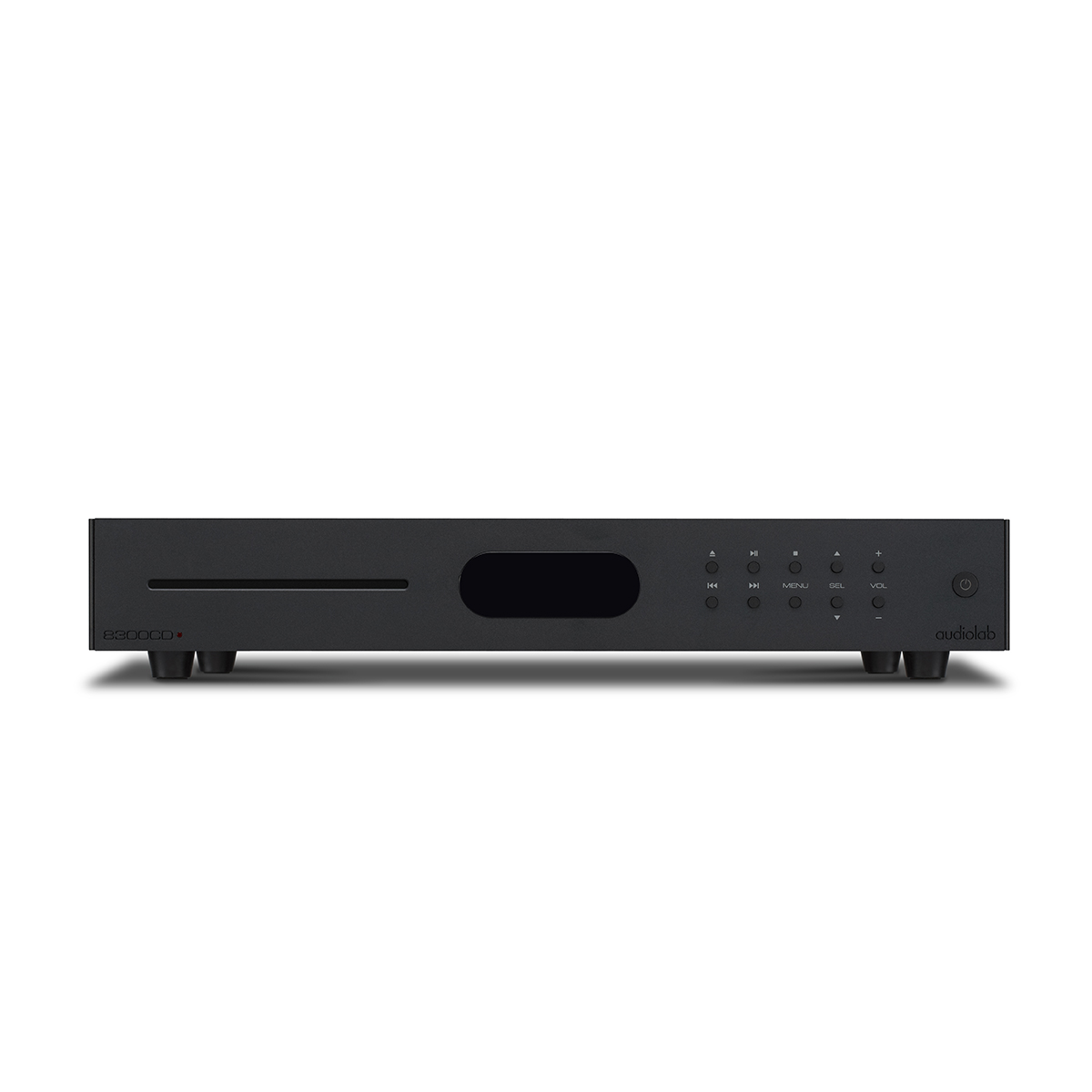

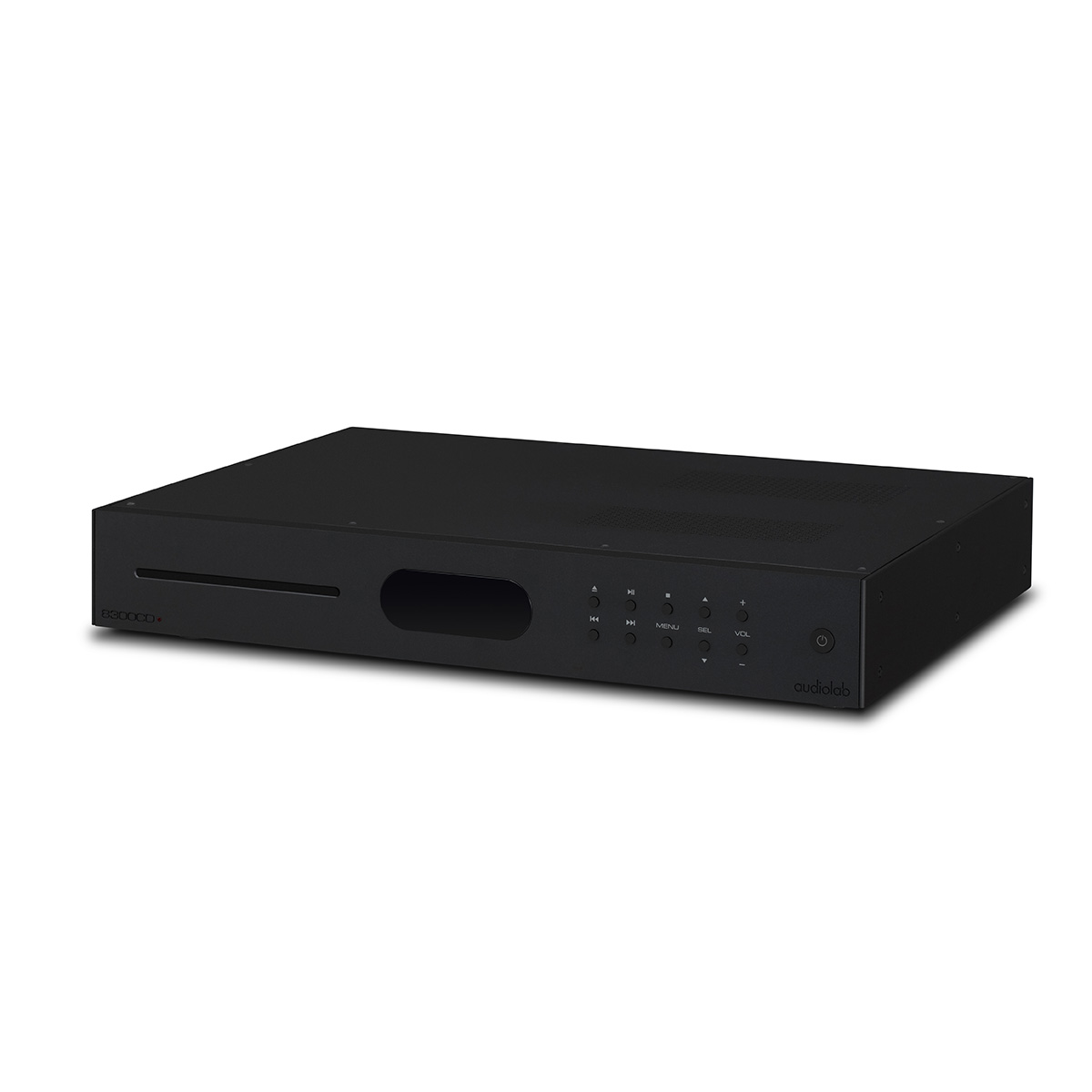

AUDIOLAB 8300
CD
Listino ufficiale
€. 1.699,00
DAC e meccanica di lettura CD integrati, 384kHz
(PCM) / 11.2M (DSD256), convertitori Sabre a 32 bit, filtri digitali
selezionabili, master clock proprietario, stadio di uscita a componenti discreti
bilanciato e in classe A, uscite bilanciate XLR e sbilanciate RCA, ingressi
digitali coassiali, ottici e USB 2.0 asincrona, schermo oled, telecomando. 80 x
444 x 317mm. 6kg. Cadauno.
8300 SeriesIn the all-new Audiolab 8300 Series, we’ve asked fundamental
questions about how people enjoy the music they love and to make sure their
hi-fi is as easy to use as it is easy on the ears.
While our engineers have referenced the blueprint of the 8200, each component
has come under scrutiny to create a hi-fi system leaps ahead of what is already
a leader in its field. With more efficient components, high- definition audio
format technology and redefined aesthetics, the 8300 Series has raised the bar,
yet again. Audiolab proudly present the new 8300A, 8300CD and 8300MB. Technology The 8300CD DAC The 32-bit ESS Sabre
DAC as used inside the 8300CD continues to have a reputation as the
best-sounding DAC chip available, and most CD players that use it are much more
costly designs. In terms of the way it measures, its distortion figures are
extraordinarily low. Around the DAC there are extensive measures to reduce
jitter to vanishingly low levels, of a nature you’d expect to see only in much
more expensive players. The conversion process within Audiolab 8300CD results in
the 512 DAC elements (256 DACs per channel) each operating at 84.672MHz – all
digital audio sources, whatever the sample rate, are upsampled or oversampled to
this frequency. This results in a conversion process that is switching 3840
times higher than the typical audio upper bandwidth of 22kHz. Without this
Digital upsampling technology, the analogue filters would likely affect
frequencies at or near the audible range, resulting in unwanted level and phase
variation within the audio band. The inclusions of the Hyperstream
modulator means optimal transient response is achieved, thus eliminating dynamic
response deficiencies and noise floor modulation artifacts typical of
traditionally designed Delta-Sigma DACsHigher Resolution
The new 8300CD can accept and process data up to 32-bit/384kHz; this is a far
higher specification than that required even by current hi-res music formats,
ensuring the 8300CD is fully equipped for future advances in
ultra-high-definition digital sound.The USB input now also accepts DSD data, as well as PCM. This is a significant
addition, as DSD has an important role to play in the developing high-res
digital download scene. Accordingly, the filter section now includes four extra
filters for DSD playback, allowing the user to optimise the noise floor to suit
the performance of the source file and the bandwidth of associated equipment
such as amplifiers and loudspeakers.
The uprated digital processing associated with the increased resolution at the
USB input delivers additional sonic benefits, for both CD replay and other
connected digital sources, whatever the resolution of the file. In advancing the
capability of the USB input to include files of up to 32-bit/384kHz, the
processing of data preceding and within the Sabre DAC has increased the
subjective resolution of musical detail and dynamics, resulting in a more
energetic and transparent performance that sets a new standard for CD players at
this price level
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
.jpg)
.jpg){kind=small}
.jpg){kind=small}
.jpg){kind=small}
