Impeccabile nel design, e costruito per durare, questo brand di diffusori ad alte prestazioni è l’inizio di un viaggio sensoriale uditivo. Phil Jones è il leggendario designer di diffusori che ha fondato la Acoustic Energy nel 1987, e progettato i leggendari diffusori monitor AE-1, utilizzati nei Abby Road Studios, nonché in numerosi altri eventi musicali degni di nota.Ha continuato a progettare e produrre il sistema di altoparlanti Platinum Air Pulse 3.1 nel 1998 che ha sfidato la mente e il cuore di audiofili in tutto il mondo per la sua metodologia di progettazione innovativa. Una coppia dei quali è stata venduta per l’incredibile somma di $275,000, e premiato Phil Jones, dalla Japan Audio Society, con il Golden Sound Award per il migliore diffusore sviluppato in 100 anni di storia dei altoparlanti.Continuando la nostra eredità nei prodotti audio consumer e professionali, i diffusori amplificati Airpulse combinano la qualità sonora del monitor di riferimento e uno stile retrò senza tempo.Guidati dalla nostra filosofia progettuale di perfezione per semplicità ed efficienza, è stata spesa una considerevole quantità di tempo per la progettazione e la selezione dei componenti per la gamma, compresa la costruzione del cabinet, i circuiti dell'amplificatore, i cablaggi interni e così via.La dedizione e l'attenzione accurata per i dettagli combinati hanno contribuito alla performance indelebile dei diffusori Airpulse.La serie di diffusori ad alte prestazioni Airpulse è nata dall'investimento di Edifier Group (Edifier Technology CO., LTD).Per decenni, ci siamo specializzati nella progettazione e produzione di prodotti di amplificazione per il home audio, audio professionale e di strumenti musicali. Dotato della più avanzata tecnologia ed equipaggiamento R&D e di collaudo, il nostro team di ingegneri è guidato da Phil Jones, designer audio di fama internazionale, che è anche il fondatore originale della compagnia audio britannica Acoustic Energy. Il suo primo diffusore a cono metallico di alte prestazioni, il Acoustic Energy AE1, è stato un punto di riferimento per i studi di registrazione e i audiofili per tanti anni. Da allora, Phil Jones ha costantemente perfezionato il design degli altoparlanti con implacabile ricerca della perfezione e tecnologie sempre innovative dei suoi di diffusori, situandosi sempre anni luce avanti rispetto alla concorrenza.


Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

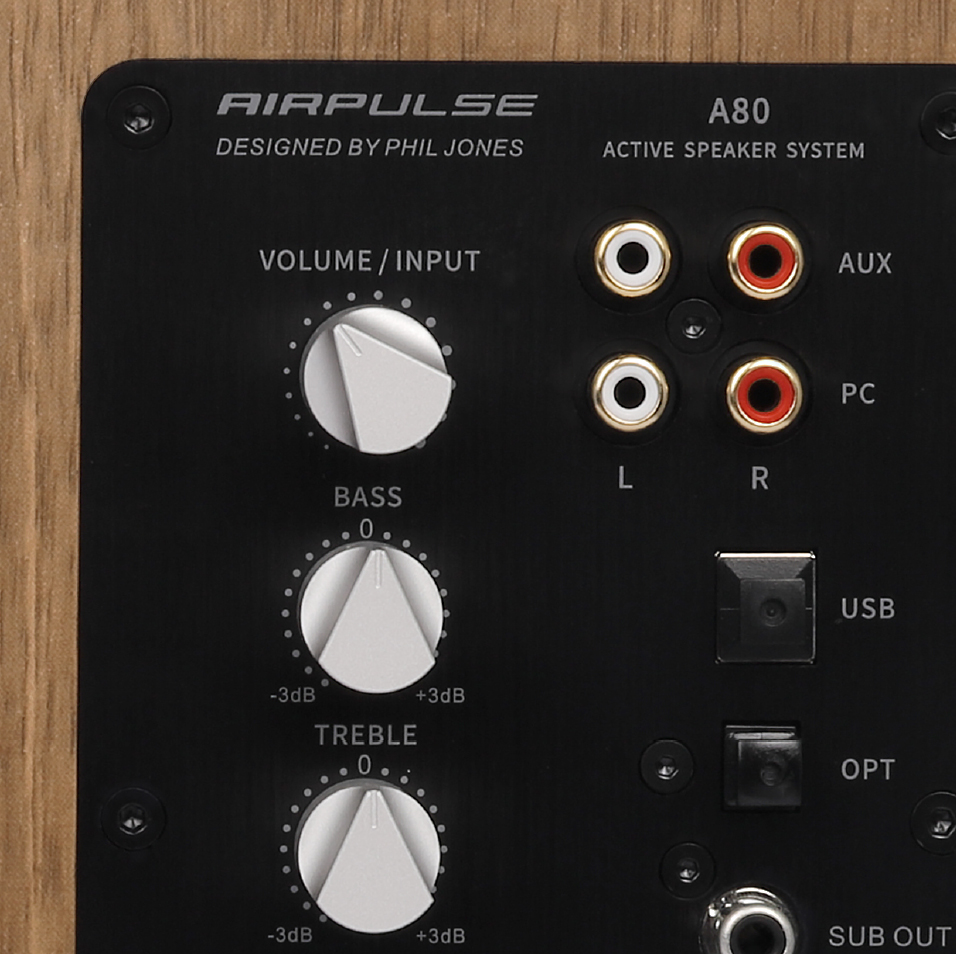

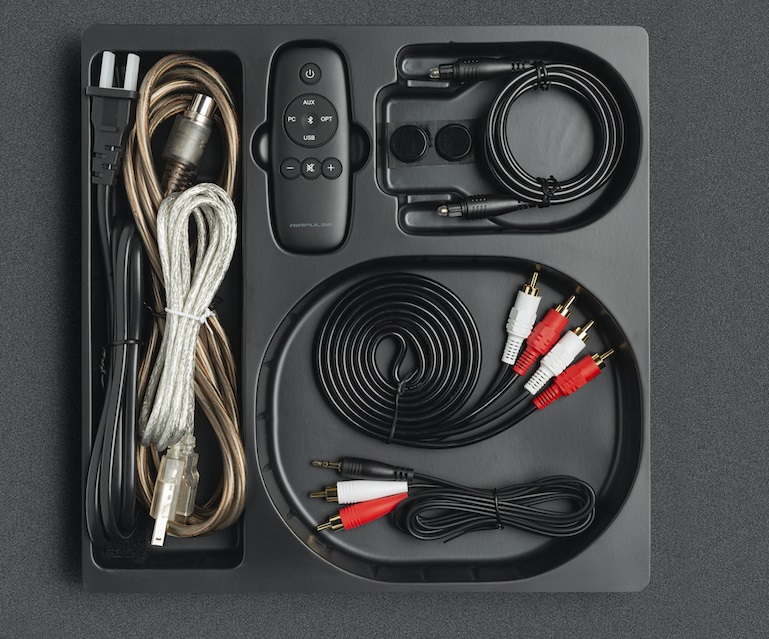

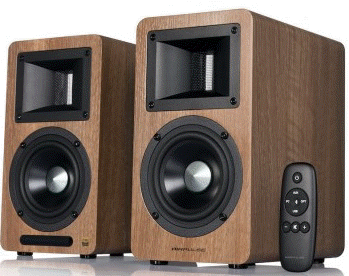

AIRPULSE    A80                                                                                                                     Prezzo     €.  769,00

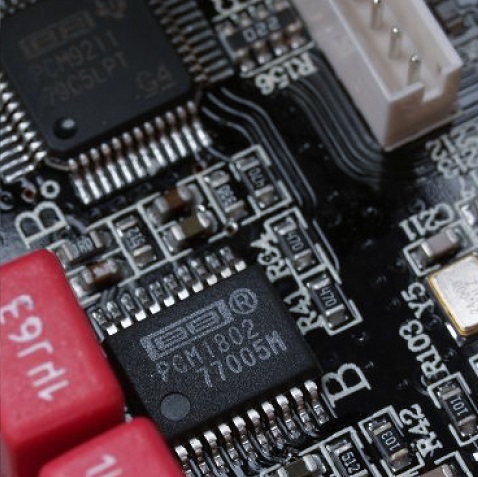

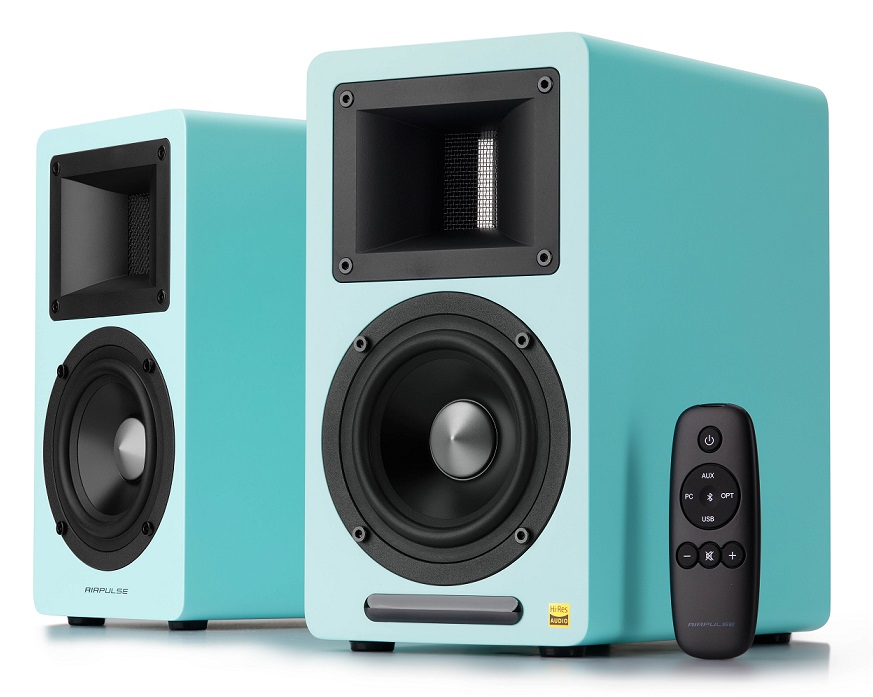

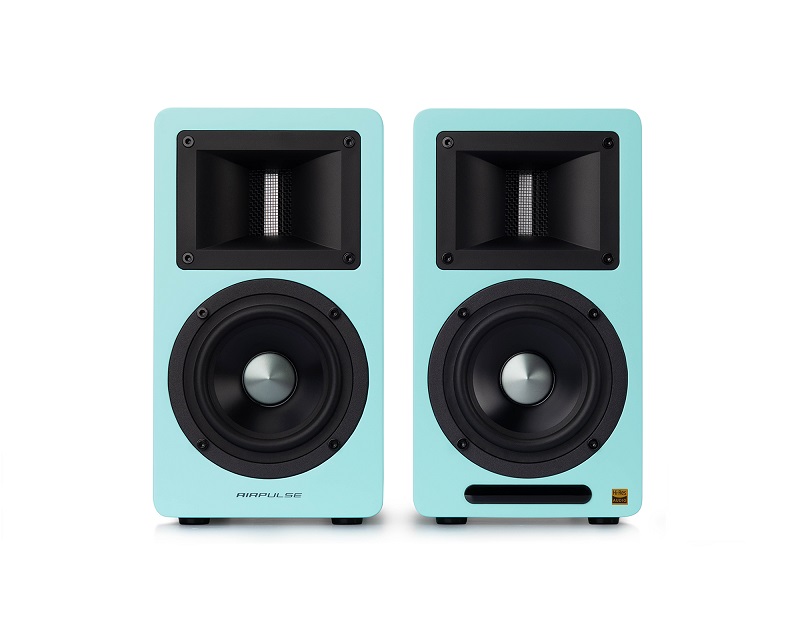

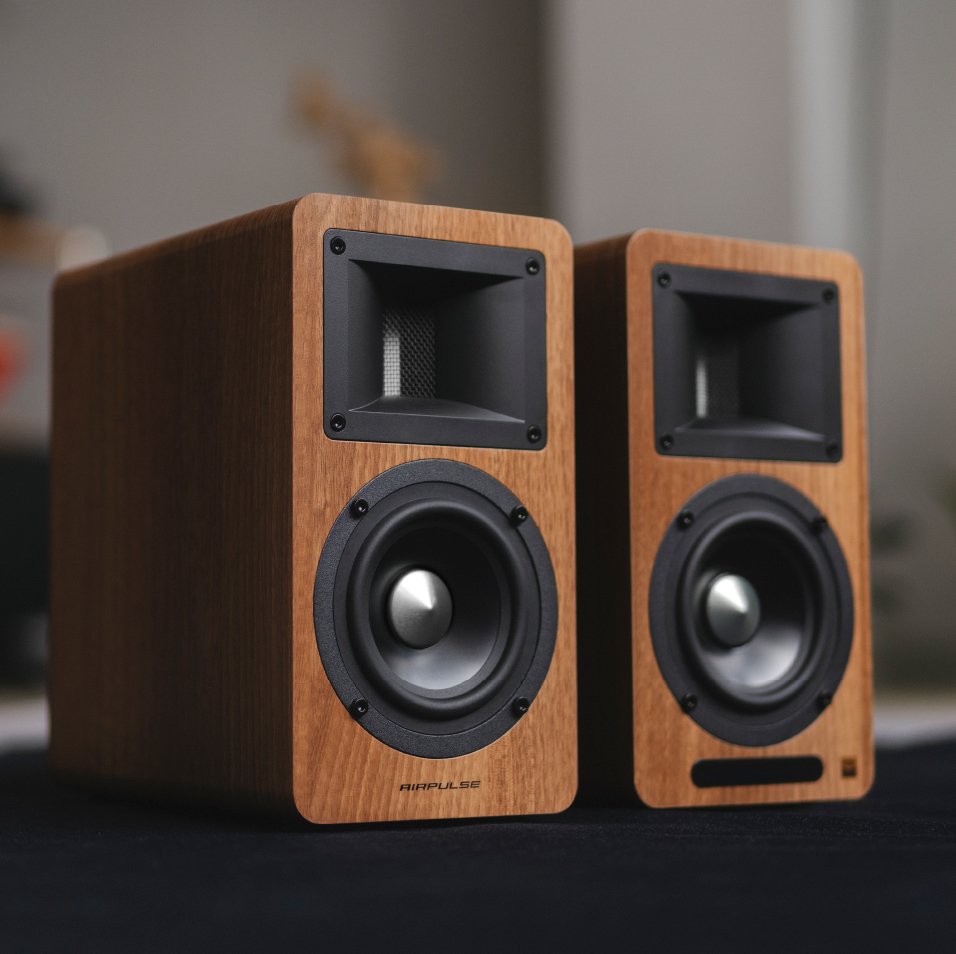

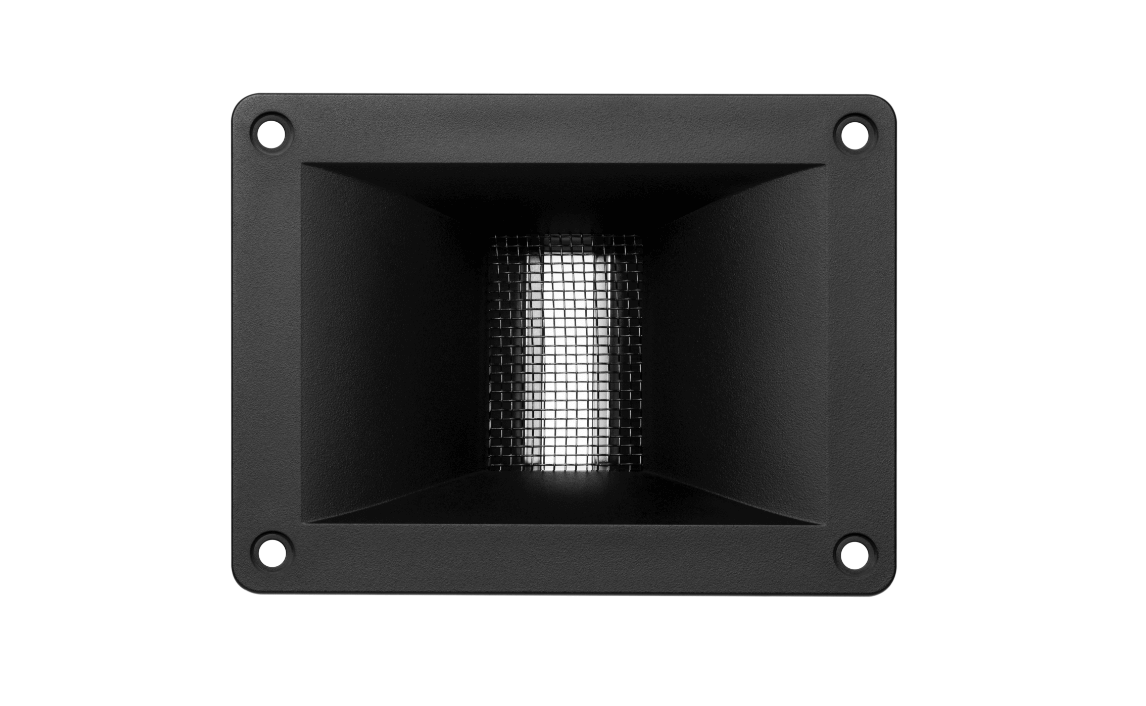

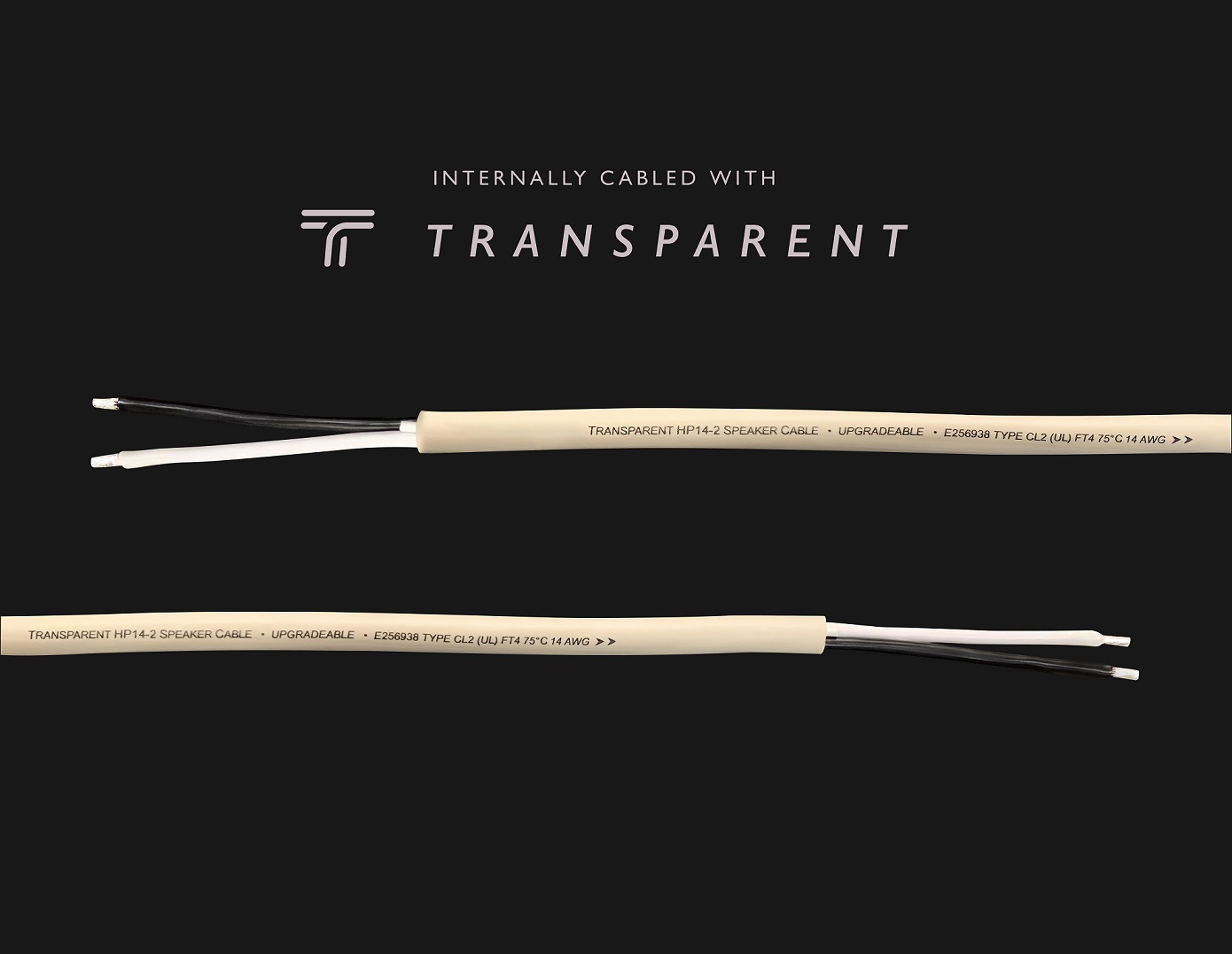

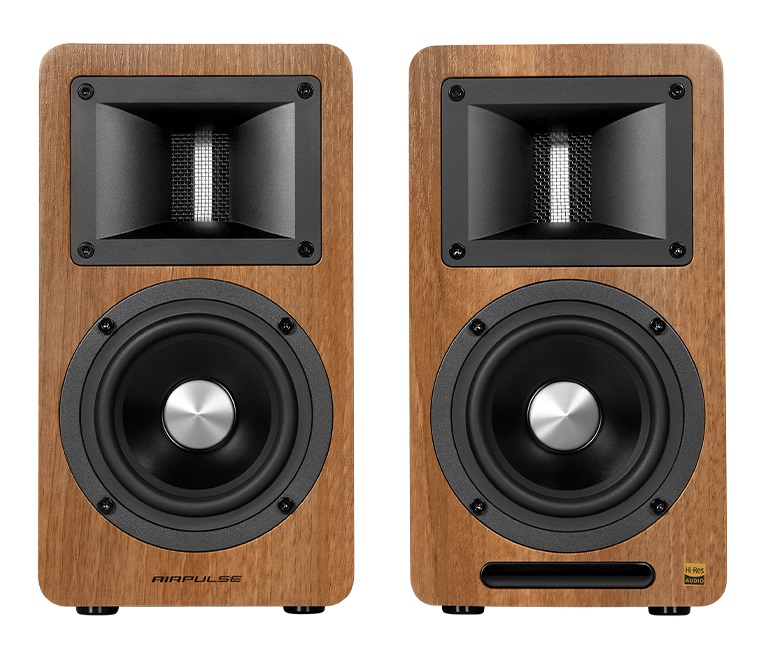

The A80 continues to use AIRPULSE's unique horn-loaded aluminum ribbon tweeter and a proprietarily-designed 4.5inch aluminum cone mid-woofer driver. They are housed in an 18-mm thick high-strength MDF cabinet with beautiful walnut finish. The well-known American TRANSPARENT cable is used in A80 for internal connection to ensure minimum signal loss. The active speaker has a high efficiency Class D amplifier with digital signal processing (XMOS) system, powered by an also efficient power supply. The system in the A80 supports multiple inputs, including Bluetooth, AUX, PC, USB and fiber optic. Frequency response ranges from 52Hz to 40KHz. It supports Hi-Res high-quality audio playback, and has obtained a Hi-Res official certification.The A80 Horn loaded ribbon tweeter it same as A100’s, the thin aluminum ribbon diaphragm has high sensitivity, superb transient response, extended frequency range and well-defined resolution. The meticulously formulated horn shape produces directional and optimized high frequencies from the ribbon tweeter, so they are aimed at the listeners, minimizing unwanted effect from room reflection.4.5INCH ALUMINUM CONE 30MM VC MID-WOOFER The Mid-woofer is a 4.5 unit with a hard anodized aluminum alloy cone suspended in a heavy, ultra rigid cast magnesium alloy frame. The Proprietary Aluminum Alloy Cone (PAAC) of mid-woofer was designed from painstaking analysis of all types of cone geometry and materials using a Klippel Laser Doppler Interferometer.The 30mm diameter voice coil is unusually larger than most loudspeakers of this size. It has been shown that larger voice coils have less power compression because they run at a cooler operating temperature.Ultra-Low Distortion Signal Processing and Amplification System The entire digital system is built on a multi-core signal processor XMOS XU216, a 16-core powerful audio processor based on XMOS xCore200 architect, which is proud of having up to 2000MIPS processing horse-power.Full Digital Amplifier The power amplification part is built with 2 pieces of TAS5754 Class-D amplifier from Texas Instrument. The up-to 192 KHz input sample rate support guarantees the entire link of digital processing run without any change of sample rate of signal. Its 768 KHz output PWM carrier frequency, twice to 384 KHz of traditional Class-D amplifier, is even more suitable to drive the high sensitivity ribbon tweeter.The analog front end uses top-of-the-line components from Texas Instrument. With special configuration, the chipset work at 96 KHz to offer a frequency response up to 40 KHz. The SPDIF receiver PCM9211 is also from Texas Instrument, which supports input sample rate up to 216 KHz. With very low output jitter, the unpacked audio signal can be delivered to XMOS processor with zero loss.Bluetooth 5.0 with AptX The Bluetooth audio receiver is built on Qualcomm’s Bluetooth V5.0 chipset, which supports APT-X decoder, and offers a far better audio playback quality than what a traditional Bluetooth SBC codec can present.TRANSPARENT Internal Wiring The A80 uses TRANSPARENT audiophile grade speaker cable made in the USA for internal wiring. Signals are transferred with utmost accuracy and minimum loss. With these cable, you are brought to step closer to music! Back Panel Control Volume of the subwoofer can be adjusted by the master volume control. A80's independent treble and bass adjustment function can help the user to easily set the brightness of highs-frequency and the amount of bass according to size of the listening environment. The USB digital audio interface on the A80 supports UAC2 audio application which can hold an input sample rate up to 192 KHz. This audio application effectively avoids signal degradation and dynamic range loss due to the PC audio SPECIFICATIONS Tweeter: Horn Loaded Ribbon Tweeter Mid-Woofer:4.5 inch Aluminum Cone 30mm VC Mid-Woofer Amplifier System: Digtal Amplifer With Xmos Processor Power Output: L/R(Treble):10W+10W, L/R(Woofer): 40W+40W Frequency Range: 52Hz-40KHz Signal-Noise Ratio: L/R:≥90dB(A) Input Mode: AUX, PC, USB, Optical, Bluetooth (The USB, Optical Inputs Support Up to 192KHz Input Sample Rate) Input Sensitivity: AUX:450±50mV PC:550±50mV, USB:400±50mFFs, Optical:400±50mFFs Bluetooth:500±50mFFs Sub Out:1200mV Max Mains Voltag: AC 100-240 V /50-60 Hz Cabinet Size (WxHxD): 140x250x220mm Net Weight 9.3 Kg(20lbs)

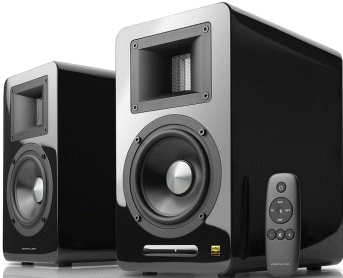

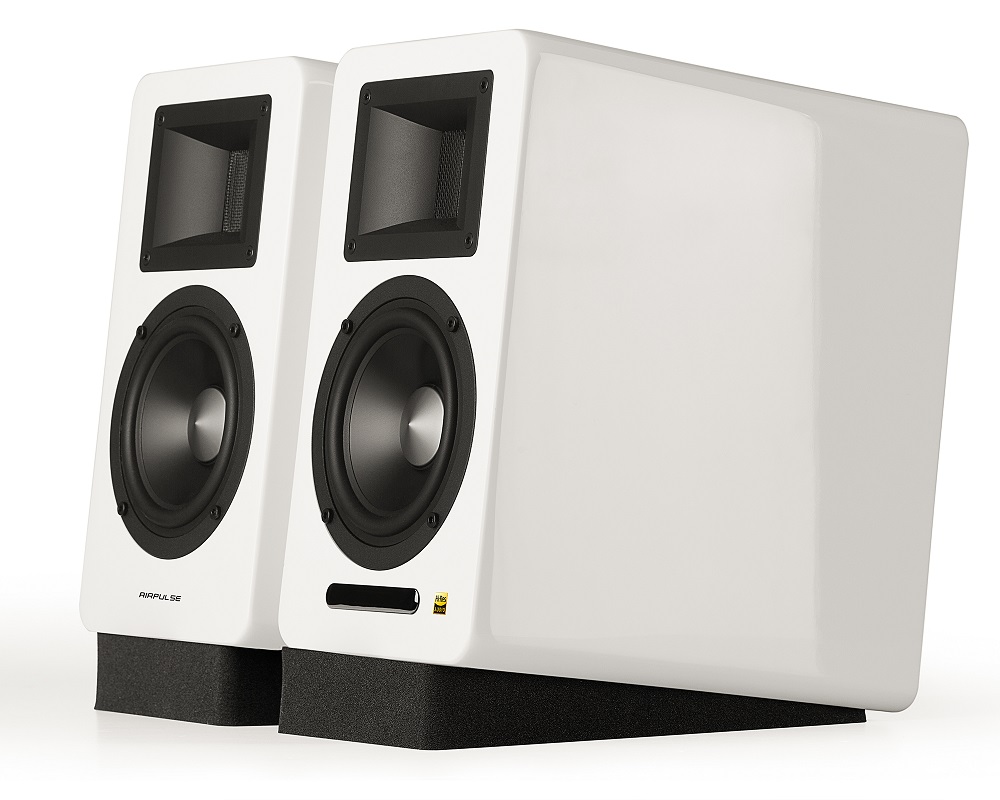

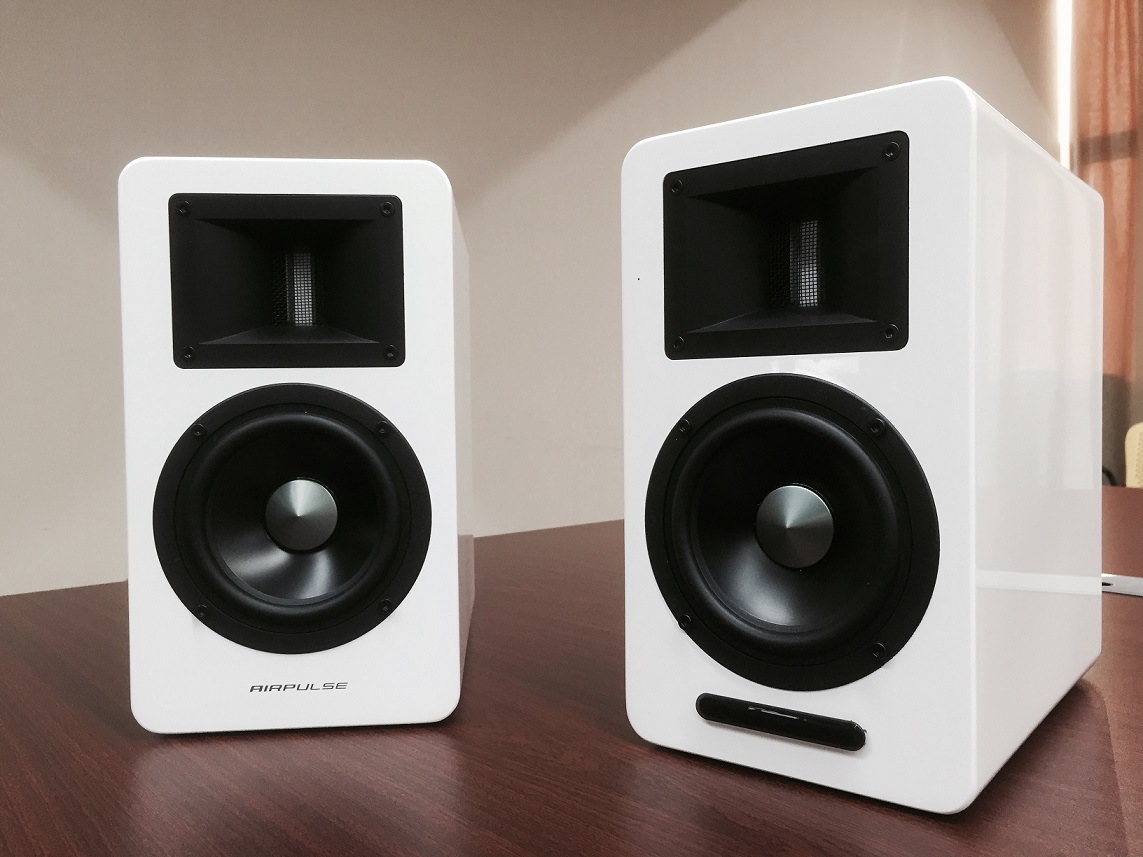

AIRPULSE    A100                                                                                                                     Prezzo   €.  898,00

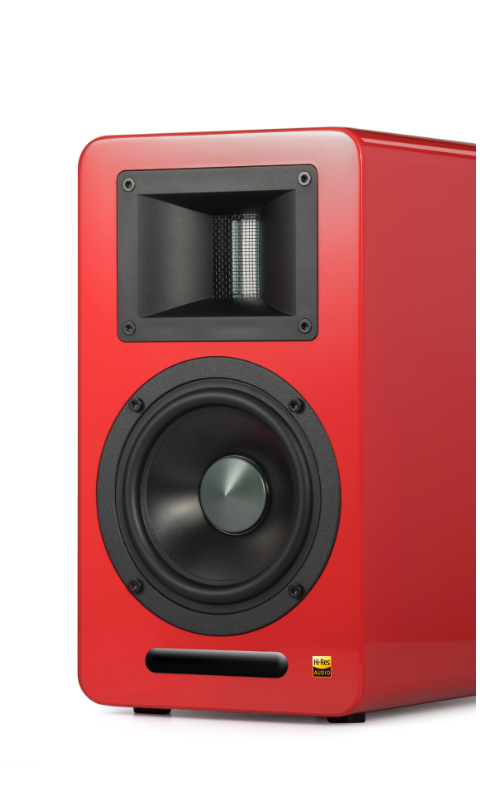

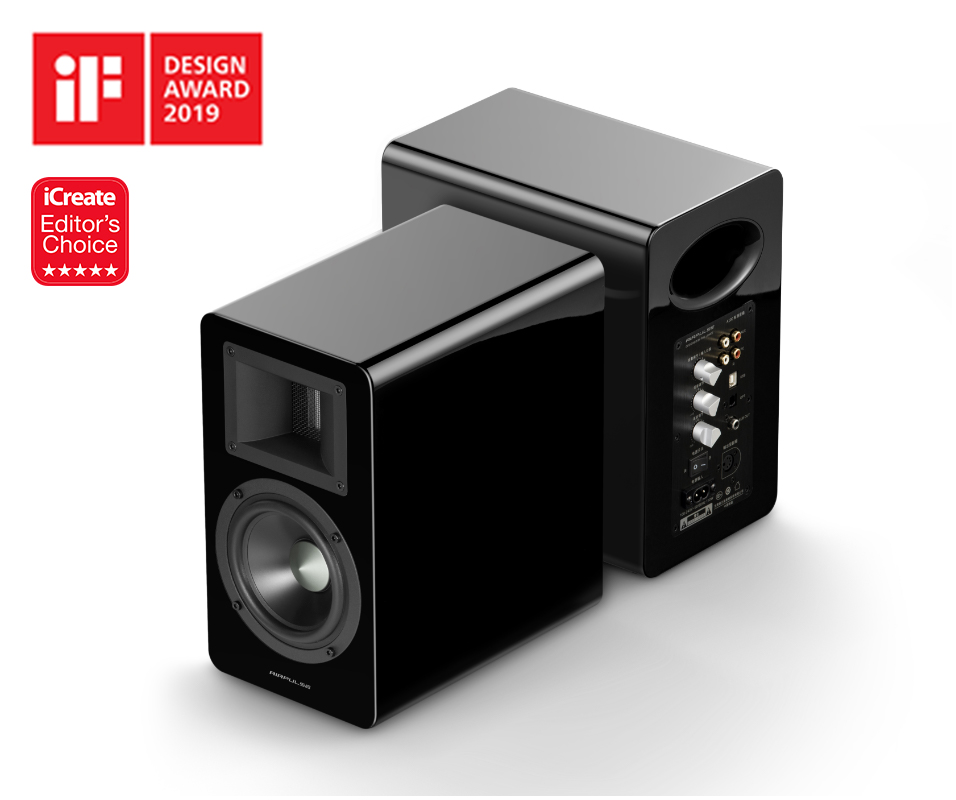

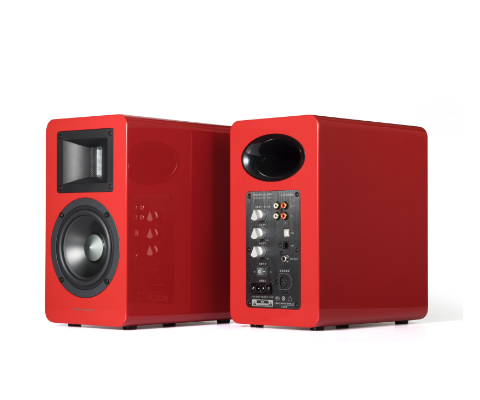

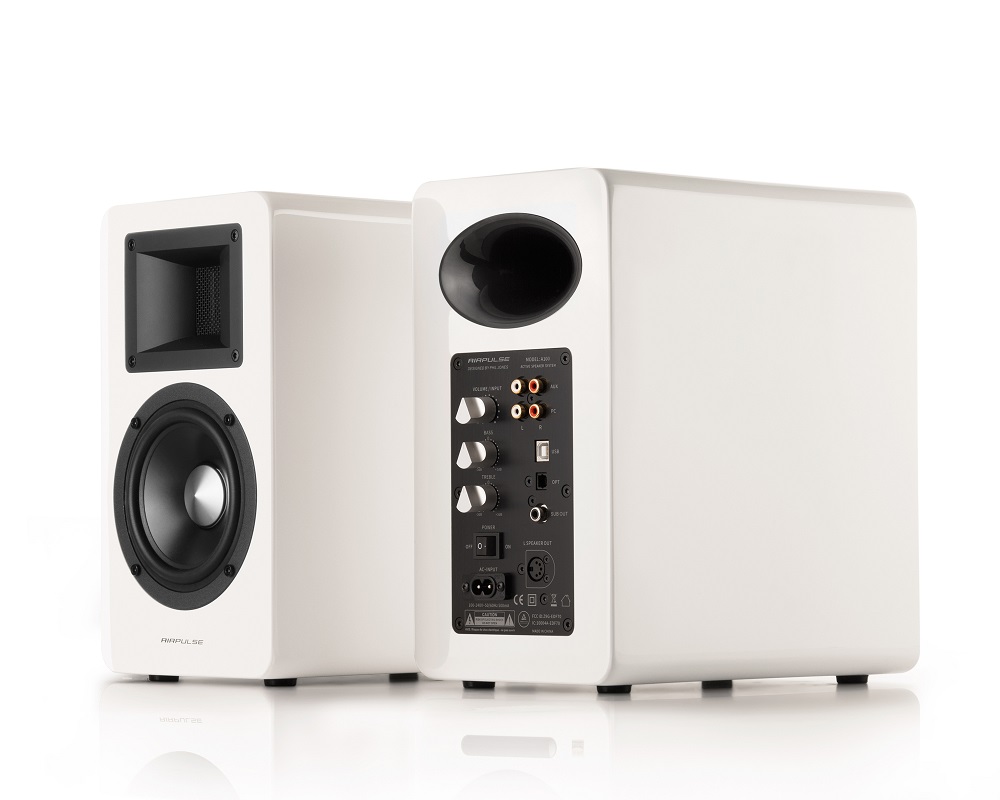

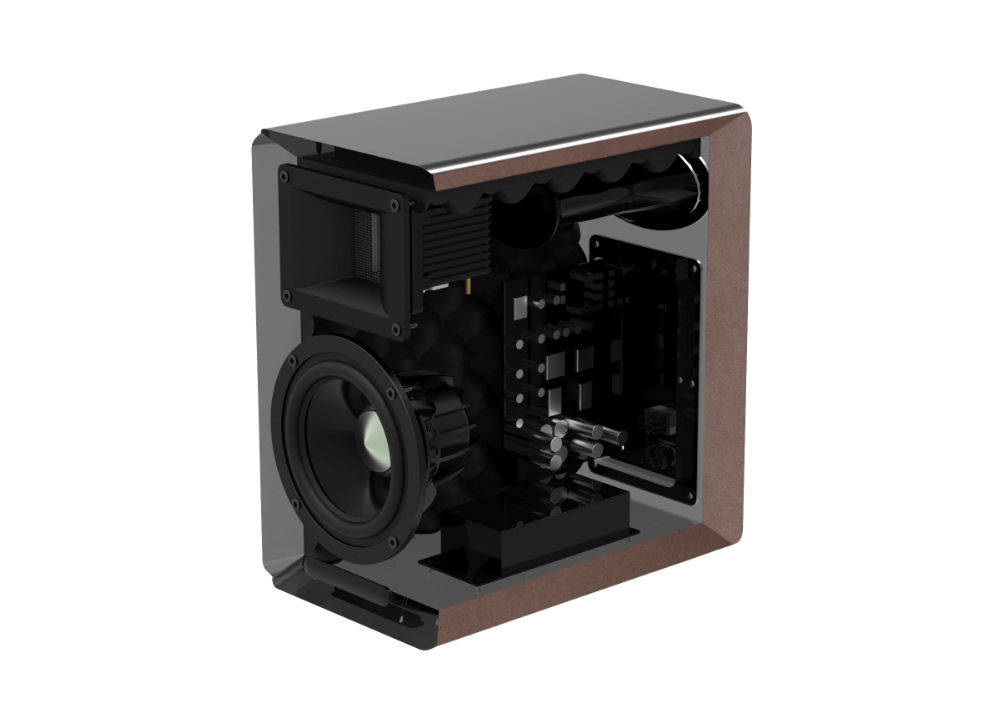

Following the successful launch of the A200 and A300, the all new A100 miniature bookshelf speakers with a 5” woofer now joins the AIRPULSE active speaker famliy. The perfect combination of Hi-Res digital audio processing technology and an aesthetic of understated elegance creates a High-Fidelity audio system with intoxicating sound quality and visual appeal. The A100 has an exquisite piano lacquer appearance, inheriting the appearance and sound characters of our flagship model 7001 near-field monitor speakers designed by Phil Jones. Using the same XMOS core as its bigger brother A300, this unassumingly small cabinet delivers outstanding performance beyond your expectation. The A100 continues to use AIRPULSE’s unique horn-loaded aluminum ribbon tweeter and a proprietarily-designed 5” aluminum chassis low-distortion bass and mid-range driver. They are housed in an 18-mm thick high-strength MDF cabinet finished with attractive piano black(or red) lacquer. The well-known AmericanTRANSPARENT cable is used in A100 for internal connection to ensure minimum signal loss. The active speaker has a high efficiency Class D amplifier with digital signal processing (DSP) system, powered by an also efficient power supply. The system in the A100 supports multiple inputs, including Bluetooth, AUX, PC, USB and fiber optic. Frequency response ranges from 52Hz to 40KHz. It supports Hi-Res high-quality audio playback, and has obtained a Hi-Res official certification.Available in black, white or red Be Bold Stand out with the design of our speakers that speak to the modern-day sensibilities with its clean sleek angles. Choose from the striking black or stand out red and elegant white. The bold highlighted cabinet from AirPulse adds a modern day feel to the décor of the room. SOUND CABINET CONSTRUCTION The A100 cabinet is built WITH 18-mm thick high-strength MDF finished with attractive piano lacquer. To further reduce coloration, the cabinet interior is fully lined with professional waved sound absorption material. The oval shaped vent tube in the A100 is carefully designed to minimize wind noise. HORN LOADED RIBBON TWEETER The A100 horn loaded ribbon tweeter inherits the mechanism of the tweeter in our flagship 7001 near-field monitor speaker. The thin aluminum ribbon diaphragm has high sensitivity, superb transient response, extended frequency range and well-defined resolution. The meticulously formulated horn shape produces directional and optimized high frequencies from the ribbon tweeter, so they are aimed at the listeners, minimizing unwanted effect from room reflection. This also leads to a superior imaging of the speaker. The result is full and three dimensional sound with each detail well defined. 5” ALUMINUM CONE LOW-DISTORTION MID-WOOFER The Mid-woofer is a 5” unit with a hard anodized aluminum alloy cone suspended in a heavy, ultra rigid cast magnesium alloy frame. The Proprietary Aluminum Alloy Cone (PAAC) of mid-woofer was designed from painstaking analysis of all types of cone geometry and materials using a Klippel Laser Doppler Interferometer. The 35mm diameter voice coil is unusually larger than most loudspeakers of this size. It has been shown that larger voice coils have less power compression because they run at a cooler operating temperature. Sonically this means a more realistic dynamic representation of the music. It is dynamics in music that gives it emotion and exhilaration. The cooler running temperature of the voice coil also has the side benefit of a more reliable loudspeaker since cooler voice coil means much less chance of speaker failure. Most loudspeakers use round copper wire in the voice coil but we use a far better single layer edge-wound copper clad aluminum ribbon. Ribbon voice-coil wire gives more electrical conductor in the magnet gap and increases efficiency, power handling and lowers distortion. It features with a under-hung motor structure, a high power neodymium motor to provide a high magnetic flux to cover the whole voice coil of the loudspeaker. This type of magnet structure completely energizes the whole voice coil with allowance for extreme cone excursion giving far better bass and considerably less inter-modulation distortion. For uncompromised performance, the A100 woofer uses a hyper-rigid cast-magnesium alloy frame. Its rigidity greatly reduces speaker coloration; and its material helps to dissipate heat efficiently from the voice coil much faster than a typical steel speaker frame, which all in combination leads to increased dynamics and power handling and ultimately, a satisfying musical experience rarely gained from a system of this size price range. Internal Wiring Made By TRANSPARENT The A100 cabinet is built WITH 18-mm thick high-strength MDF finished with attractive piano lacquer. To further reduce coloration, the cabinet interior is fully lined with professional waved sound absorption material. The oval shaped vent tube in the A100 is carefully designed to minimize wind noise. FULL DIGITAL AMPLIFIER The power amplification part is built with 2 pieces of TAS5754 Class-D amplifier from Texas Instrument. This component is one of a handful of Class-D amplifiers in the market which combines high input sample rate support and high output PWM carrier frequency. These two characters are essential to achieve low background noise and low distortion. The up-to 192 KHz input sample rate support guarantees the entire link of digital processing run without any change of sample rate of signal. Its 768 KHz output PWM carrier frequency, twice to 384 KHz of traditional Class-D amplifier, is even more suitable to drive the high sensitivity ribbon tweeter. One TAS5754 is connected in bridge mode for left and right channel woofer and the other amp is connected in bridge mode for left and right channel ribbon tweeters. The analog front end uses top-of-the-line components from Texas Instrument. With special configuration, the chipset work at 96 KHz to offer a frequency response up to 40 KHz. The wide range input frequency response guarantees thorough signal acquisition with very low distortion. To avoid cross-talk between the two analog ports, A100 uses relay instead of semiconductor switch. The SPDIF receiver PCM9211 is also from Texas Instrument, which supports input sample rate up to 216 KHz. With very low output jitter, the unpacked audio signal can be delivered to XMOS processor with zero loss. The power amplification part is built with 2 pieces of TAS5754 Class-D amplifier from Texas Instrument. This component is one of a handful of Class-D amplifiers in the market which combines high input sample rate support and high output PWM carrier frequency. These two characters are essential to achieve low background noise and low distortion. The up-to 192 KHz input sample rate support guarantees the entire link of digital processing run without any change of sample rate of signal. Its 768 KHz output PWM carrier frequency, twice to 384 KHz of traditional Class-D amplifier, is even more suitable to drive the high sensitivity ribbon tweeter. One TAS5754 is connected in bridge mode for left and right channel woofer and the other amp is connected in bridge mode for left and right channel ribbon tweeters. The Bluetooth audio receiver is built on Qualcomm’s Bluetooth chipset, which supports APT-X decoder, and offers a far better audio playback quality than what a traditional Bluetooth SBC codec can present. The system reserves a sub woofer signal output in case of situation that needs low frequency rendering with strong bass. Volume of the subwoofer can be adjusted by the master volume control AIRPULSE A100 Active Bookshelf Speakersystemis a perfect combination of uniquely designedconventional loudspeaker and digital systemofXMOS.Meticulous tuning work enables theA100to accurately reproduce any type of music. Its XMOS integrated USB functionmakes life much easier, you can play high-quality sound sources without compression andthenenjoy lossless music by simply downloading and installingthesoftware packages. A100’s independent trebleand bass adjustment function can help the user to easily set thebrightness ofhighs-frequency andtheamount of bassaccording to size of the listening environment. SPECIFICATIONS  Tweeter: Horn Loaded Ribbon Tweeter  Mid-Woofer: 5 inch Aluminum Cone Underhung Design Neo. Power Mid-Woofer Amplifier System: Digtal Amplifer With Xmos Processor  Power Output: L/R(Treble)10W+10W, L/R(Woofer): 40W+40W Frequency Rang: 52Hz-40KHz  Signal-Noise Ratio:  L/R:≥90dB(A) Input Mode:  AUX, PC, USB, Optical, Bluetooth. Sample Rate Input Sensitivity:  AUX:450±50mV PC:550±50mV, USB:400±50mFFs, Optical:400±50mFFs, Bluetooth:500±50mFFs Sub Out: 1200mV(max) Mains Voltag: 100-240 V AC/50-60 Hz  Cabinet Size (WxHxD): 160x283x255mm Net Weight: 11 Kg(24.2lbs) Gross Weight: 13.4 Kg(29.5lbs) Packing Size(HxWxD): 387x489x353mm

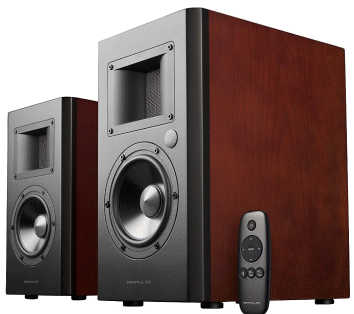

AIRPULSE    A200                                                                                                                 Prezzo     €.   998,00

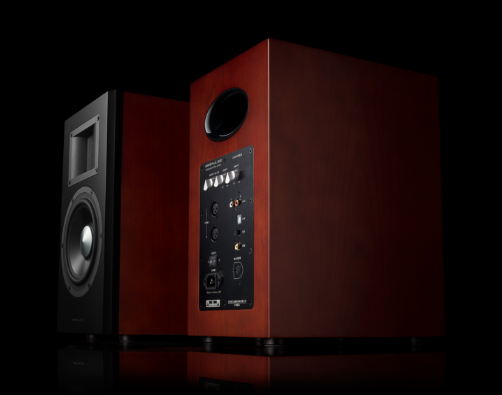

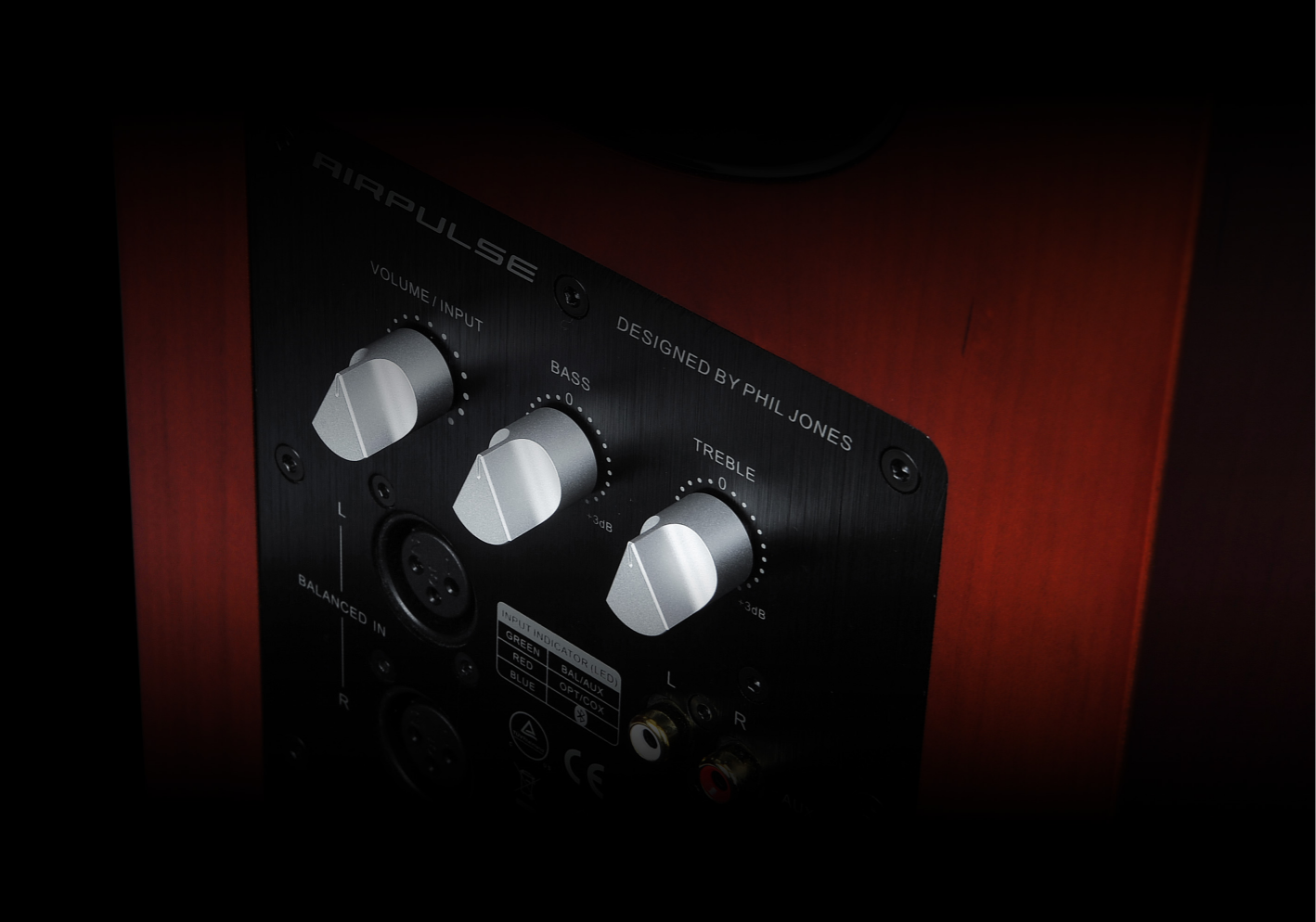

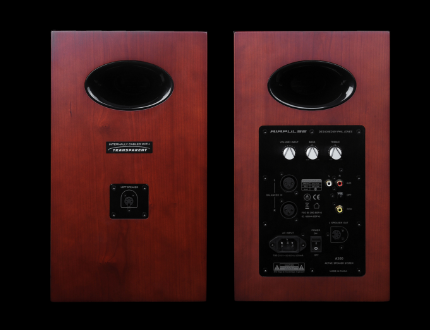

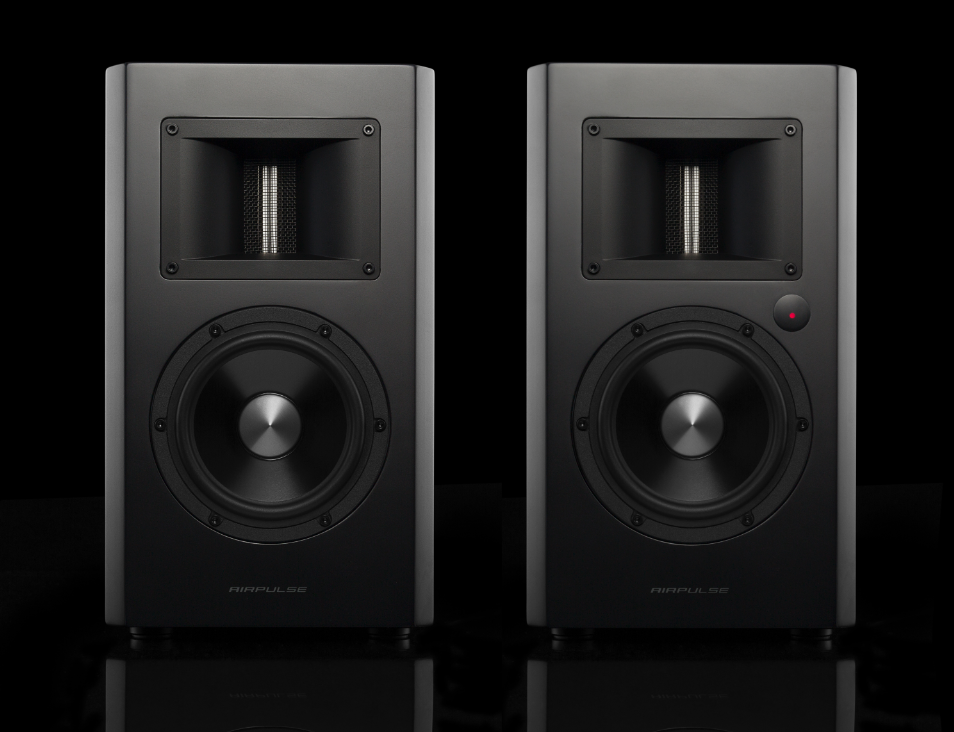

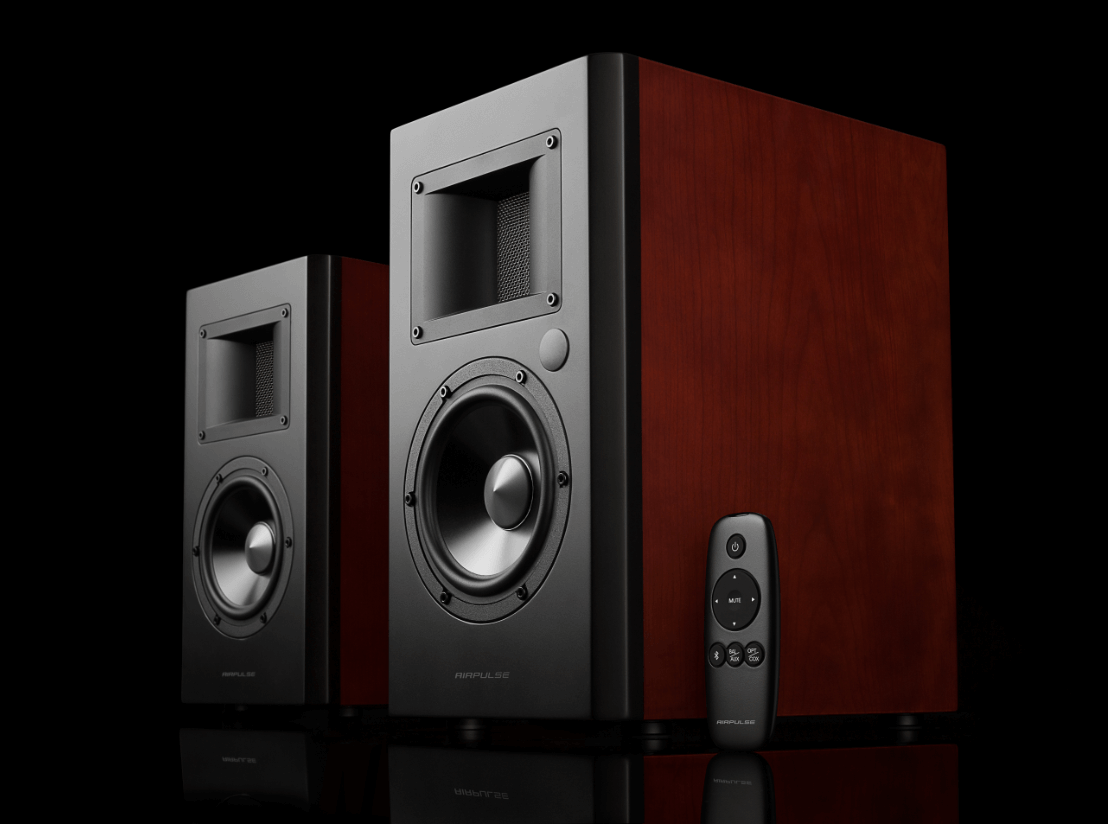

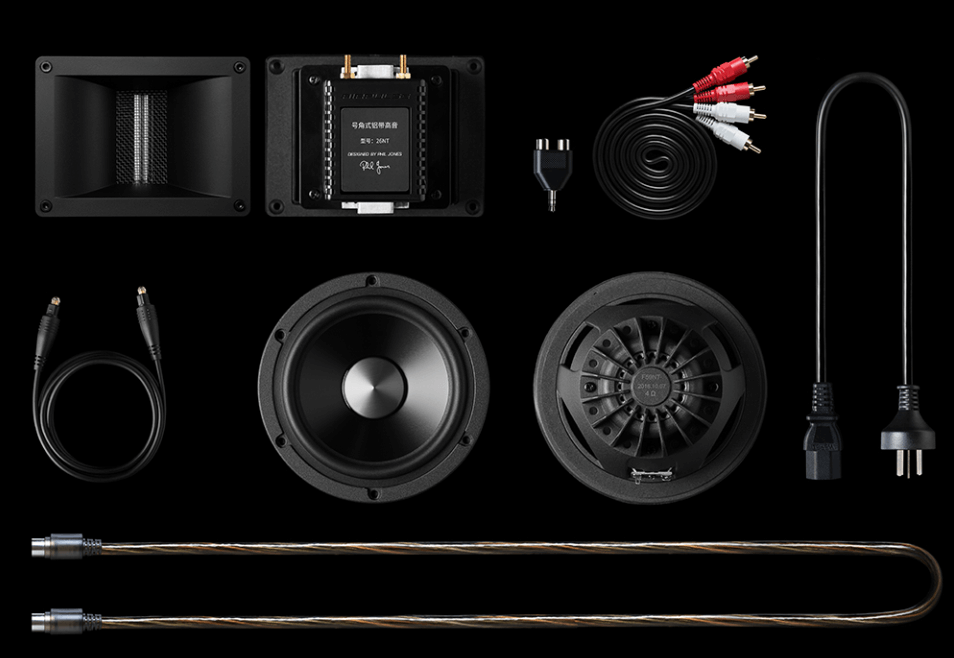

The AirPulse A200 powered speaker combines reference monitor sound quality and timeless retro styling. Guided by our design philosophy of perfection by simplicity and efficiency, considerable amount of research time was spent on designing and selecting each sub-components in the A200 including cabinet construction, speaker drivers, amplifier circuitry, and internal wiring to name a few. Not one minor detail was left unattended during the creation process on even the smallest component, which all in combination contribute to the A200’s impeccable performance.The A200 is a feast to your eyes with its beautiful natural wood grain cabinet. It is most importantly, but not surprisingly, a feast to your ears. It accurately reproduces music with pure and extended high frequency, detailed and full mid range, and solid bass notes. The A200 is our latest gift to the most discriminating audiophiles and music lovers. It will bring you to a whole new level of listening experience, and you will fall in love with yourr favorite music all over again.The A200 cabinet is built from 25mm rigid MDF with cherry wood veneer finished in satin lacquer. Strong internal bracing supports and stabilizes the drivers and eliminates cabinet resonance to minimum. To further reduce coloration, cabinet interior is fully lined with 36mm thick waved sound absorption material.Each of our cabinets are lined with a 36mm of professional-grade acoustic foam. This sound absorption material reduces unwanted resonance that occurs within the speaker cabinet leaving you with only the sound you desire to hear. HIGH QUALITY ALUMINUM BACK PANEL AND KNOBS Like many high quality audio equipment, the amplifier front panel on the A200 is made with 3mm thick blushed aluminum. The CNC machined solid aluminum knob Is not only elegant looking but also our own unique design with ergonomic and functionality in mind. Such fine details again reflect our pursuit of refinement and excellence. PHRASE CORRECTION HORN LOADED RIBBON TWEETER The A200 horn loaded tweeter inherits the mechanism of the tweeter in our flagship 7001 near field monitor, but with an added phase correction device which greatly improves frequency response and increases sound dispersion. The A200 ribbon tweeter has a very low resistance of about 0.2 Ohm and it works with a transformer. The low resistance brings more current through the ribbon thus rise the SPL of high frequency, which leads to wide frequency response. We construct the A200 tweeter with the highest quality aluminum ribbon, strong Neodymium-Rare Earth magnets material coupled with an appropriate transformer to give it high sensitivity, superb transient response, extended frequency range and ultra high definition. The unique shape and size of the horn on the A200 tweeter was designed from precision calculation and simulation. Connecting the ribbon tweeter to a horn helps the sound generated by ribbon better coupled to the air. It further increased efficiency, power handling, frequency response and dispersion 5.5” ALUMINUM CONE LOW DISTORTION MID-WOOFER The 5.5" woofer in the A200 is an aluminum cone/large voice coil signature Phil Jones design. It uses a neodymium motor to provide a high magnetic flux to cover the entire voice coil of the loudspeaker. This is rarely done in speaker construction because of the sheer cost. Majority of loudspeakers use a voice-coil mostly overhung outside the magnetic field . By using a much larger magnetic field in the A200 woofer, we considerably reduce harmonic and inter-modulation distortion, giving the speaker a far more musical and natural sound. The Proprietary Aluminum Alloy Cone ( PAAC) was designed from painstaking analysis of all types of cone geometry and materials using a Klippel Laser Doppler Interferometer: A precision scientific measuring instrument that analyses cone behavior in 3D environment. The voice coil in A200 woofer is unconventionally larger than most 5.5" loudspeakers. Larger voice coils have less power compression because they run at a cooler operating temperature. Sonically this means a more realistic dynamic representation of the music. It is dynamics in music that gives it emotion and exhilaration. The cooler running temperature of the voice coil also brings a benefit of reliability and extremely rare driver failure.Most loudspeakers use round copper wire in the voice coil. The A200 uses a far better single layer edge-wound copper clad aluminum ribbon. Ribbon voice-coil wire gives more electrical conductor in the magnet gap and increases efficiency, power handling and lowers distortion. For optimum performance without compromise, the A200 woofer uses a hyper-rigid cast-magnesium alloy frame. Its increased rigidity greatly reduces speaker coloration, and its material helps to dissipate heat efficiently from the voice coil much faster than a typical steel speaker frame, all of which lead to increased dynamics and power handling and ultimately, a much more satisfying musical experience. FULL DIGITAL AMPLIFIER The amplifier section of the A200 Is composed of three pieces of TAS5754 Class D ampliflers. Two are connected in parallel bridge mode to drive the left and right woofers, and one is connected in bridge mode for the two tweeters. Not like normal Class D amplifier, these amplifiers feature closed-loop structure with even lower distortion. Its digital input accepts signal with up to 192KHz sample rate. Its Hybrid-Flow digital processing enrich the system processing capability even more.DSP Based Electronic Crossover and Dynamic Management The processing core of A200 Amplifier Is two pieces of TLV320A1C3254 from Texas In-strument. The miniDSP inside the chip offer two parallel signal path for high frequency and low frequency independently. The miniDSP accepts input signal with up to 192KHz sample rate. Signal processing like electronic crossover, speaker compensation, dynamic range management are all done by the miniDSP.HIGH EFFICIENCY SWITCH MODE POWER SUPPLY The Amplifier of A200 Is powered with a high efficiency switch mode power supply. The power supply reserves sufficient power source for dynamic playback with mini-mized ripples, and can meet the Energy Star power consumption requirement In STBY mode.Two Analog Inputs with High Quality ADC The A200 amplifier includes two analog input modes, one balanced and one single ended, are converted into the system by two high quality ADC chips, PCM1802 and PCM1804, both from Texas Instrument. PCM1802 takes the single end analog signal, and it features a typical -96 dB THD0N, 105dB SNR and 105dB Dynamic Range; while PCM1804 takes the balanced analog signal with an even higher spec, typical -102 dB THD+N, 111dB SNR and 112dB Dynamic Range.Two Digital inputs Supports Up to 192kHZ Sampling Rate Tn the digital side, both the optical and coaxial signal goes through an audio front end receiver chip, PCM9211 from Texas Instrument. This audio front end supports up to 216K input sample rote.BLUETOOTH 4.0 APTX DECODER For the convenience of music playback, the A200 offers a built-in Bluetooth receiver for A2DP application. The receiver features CSR8645 chipset from Cambridge Silicon Radio. Though designed for more casual music playback, the receiver supports apt-X. The A200 amplifier was designed to work precisely with the components of this remarkable speaker. It uses Digital Signal Processing ( DSP) to match blend both woofer, tweeter and enclosure to work as “ONE”.Internal Wiring Made By TRANSPARENT The A200 uses TRANSPARENT audiophile grade speaker cable made in the US for internal wiring. Signals are transferred with utmost accuracy and minimum loss. With it, you are brought steps closer to music! Take Control of Your Sound The A200 comes with a wireess remote control used for taking ontrol of your sound. You can switch between inputs easily from the comfort of your seat.SPECIFICATIONS Tweeter: Phase Correction Horn Loaded Ribbon Tweeter Mid-Woofer: 5.5" Aluminum Cone Neo Power Mid-Woofer Power: L/R(Treble)10W + 10W, L/R(Min-Range and Woofer) : 55W + 55W Signal-Noise Ratio: L/R:≥90dB(A) Input Sensitivity: Balance Input 1000±50mV,AUX Input 550±50mV,Bluetooth Input 1000±50mFFs,Optical Input 350±50mFFs,Coaxial Input 350±50mFFs Frequency Response: 46Hz-20KHz Input Interface: AUX, Balance Input, Optical, Coaxial, Bluetooth Cabinet Size (WxHxD): 203 x 355 x 295 (mm) Net Weight: 19 Kg(42lbs) Gross Weight: 22.7Kg(50lbs)

AIRPULSE    A300                                                                                                            Prezzo     €.  1.280,00

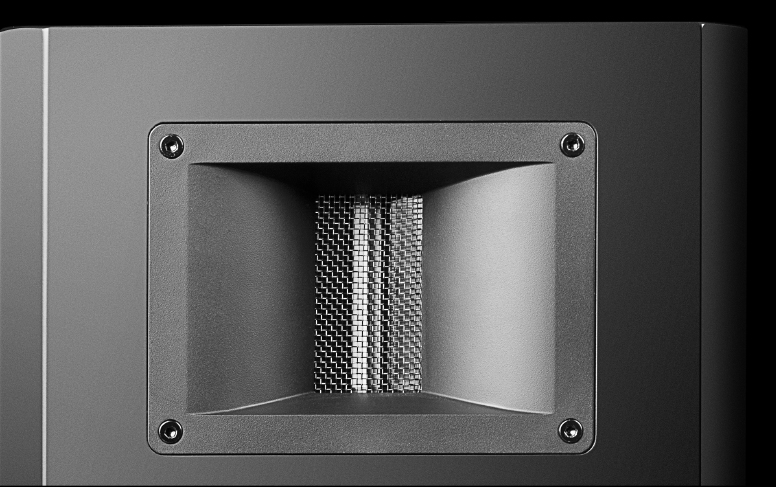

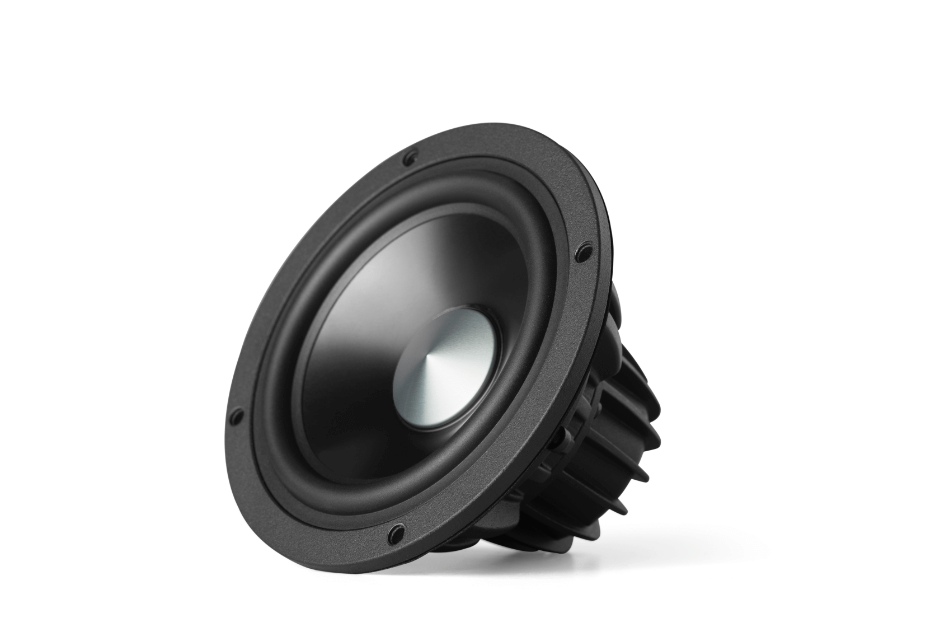

The overwhelmingly positive response for the A800 inspired us to expand this unique idea to a more cost-effective model to suit the budget of the majority audio lovers. We wanted to incorporate the acoustic design of the A300 bookshelf and the electronic design in the A800 wood horn speaker to create a powerful bookshelf system with 6.5 woofers. And that’s how the Airpulse A300 Pro was born!The cabinet design is finished with a conservatively elegant walnut wood veneer. Sonically, it has the same horn-loaded aluminum ribbon tweeter but an improved 6.5-inch aluminum cone, low distortion woofer compared to its predecessor. The depth of the cabinet was increased to provide more extended low frequencies too.Horn Loaded Ribbon Tweeter Our uniquely designed horn-loaded aluminum ribbon tweeter in the A300 Pro delivers to the audience every corner of wide space with airy and harmonically pleasing high-frequency musical notes. Listeners experience-rich, articulate, and evenly distributed high-frequency sound that does not fade out with distance. The aluminium ribbon tweeter is characterized by its extremely lightweight diaphragm. The ribbon functions as both the diaphragm and the voice coil all in one which has no output delay. Instead, it has an instant transient response, a large vibration area, small phase distortion, and high sensitivity. Forward distribution of sound field yields better axis shifting. The impedance of the aluminum ribbon is almost as constant as the DC impedance, leading to a very high-frequency response in the corresponding range. The carefully calculated horn shape modifies and optimizes the directivity of this aluminum ribbon tweeter. It ensures that the high-frequency distribution is consistent with all listeners regardless of their position. This even distribution mode is not affected by the reflection characters of the room so that the high-frequency notes are more articulate and three-dimensional. The perfect combination of aluminum ribbon tweeter and horn design gives the audience a new and unprecedented listening experience.6.5” Aluminium Cone Low Distortion Mid-Woofer The A300 Pro’s 6.5-inch woofer uses a high-strength magnesium-aluminum diaphragm and an underhung magnetic circuit design. It is supported by a 50mm diameter voice coil and an oversized, high-energy magnet. Combined with a cleverly designed heat dissipation mechanism, this woofer has the lowest distortion and highest level of dynamics, delivering clean low frequencies that are richly detailed, and deeply extended. The cast aluminum chassis provides strong structural support for the woofer. The strengthened aluminum-magnesium alloy diaphragm effectively reduces the segmentation vibration and ensures that virtually all sound details are fully revealed. The underhung designed 50mm diameters flat-wire voice coil paired with oversized neodymium Iron-boron magnet sandwiched between two thick steel plates, provide dynamic force, and a large magnetic gap, which produces a symmetrical and linear magnetic field. Movement of the voice coil is completely immersed in this magnetic field, which greatly reduces harmonic distortion, resulting in a superior low-frequency performance. The coupling of the voice coil and the aluminum diaphragm helps the voice coil to dissipate heat quickly. It forms a perfect heat dissipation system with a specially designed heat sink to reduce thermal dynamic compression and enables the speaker to maintain high-level playback for a long period of time. The meticulous design, precision manufacturing, and fine-tuning by using the KLIPPEL electro-acoustic analysis system, all contribute to the extraordinary dynamic and low distortion performance of the A300 Pro woofer that is largely responsible for the excellent performance of the entire system.Fully digital amplifier The power supply and amplifiers in the left and right speaker of the A300 Pro is completely symmetrical. Each speaker has an internal 150W high-efficiency, low-ripple switching power supply. Using a Texas Instrument digital power amplifier TPA3251, each cabinet has woofer output power no less than 120W and tweeter output at 10W. The speakers also use the XMOS xCore200 multi-core processor and Texas Instruments’ TLV320AIC3268 digital processor. The interconnection of the left and right speaker uses KleerNet wireless transmission technology. It uses Qualcomm QCC3031 series 5.0 Bluetooth chipset and supports AptX HD high-fidelity codec so that Bluetooth technology can be used with minimal signal loss.SPECIFICATIONS Cabinet Size (WxHxD)225 x 385 x 350mm Signal-Noise Ratio L/R:≥90dB(A) Gross Weight 29.4Kg (65lbs) Frequency Range 40Hz-40KHz Power L/R(Treble):10W+10W, L/R(Woofer): 120W+120W Tweeter Horn Loaded Ribbon Tweeter Main Voltage 100-240 V AC/50-60 Hz Mid-Woofer 6.5 inch Aluminum Cone Underhung Design Mid-Woofer Input Mode AUX, USB, Optical, Coaxial, Bluetooth. Balance Input, Unbalance Input Input Sensitivity Balanced:1100±50mV, Unbalanced: AUX:700±50mV, USB:550±50mFFs, Optical:500±50mFFs Coaxial:500±50mFFs, Bluetooth:500±50mFFs Amplifier System nDigital Amplifier With Xmos Processor Net Weight 25.6Kg (56.6 lbs)

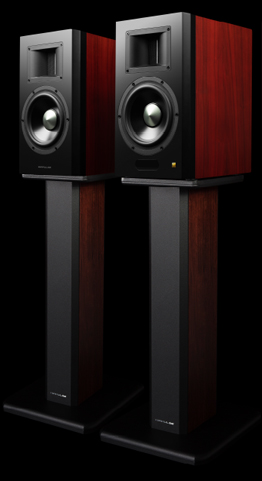

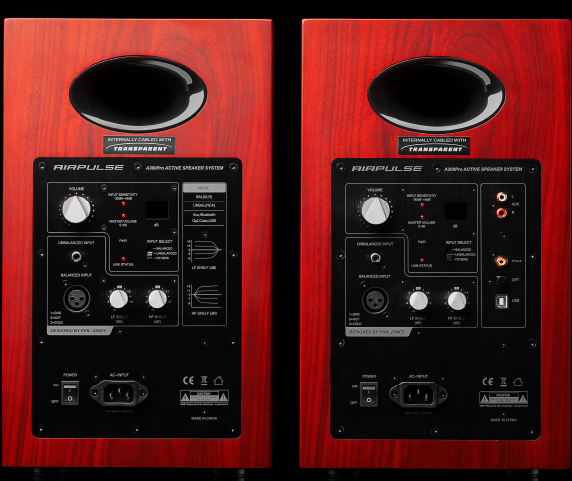

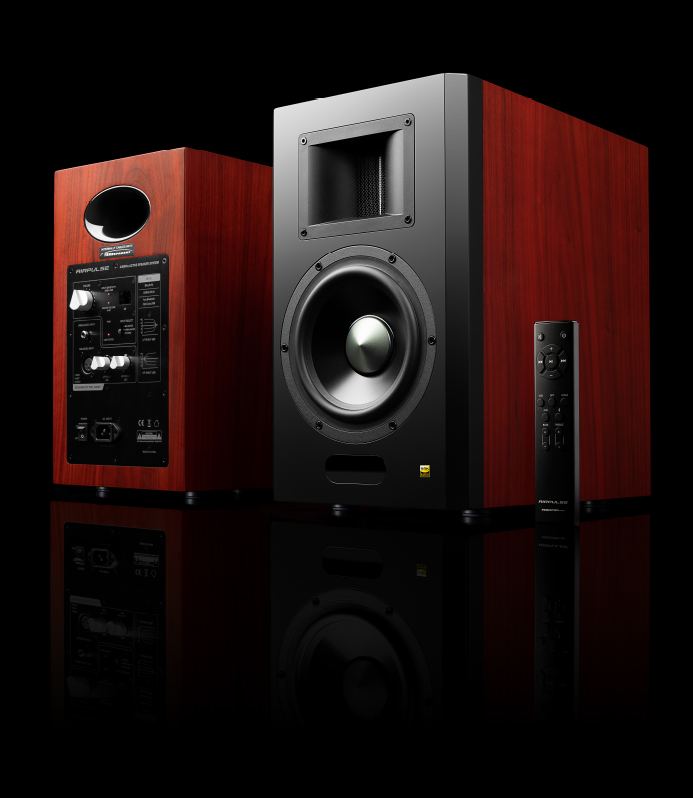

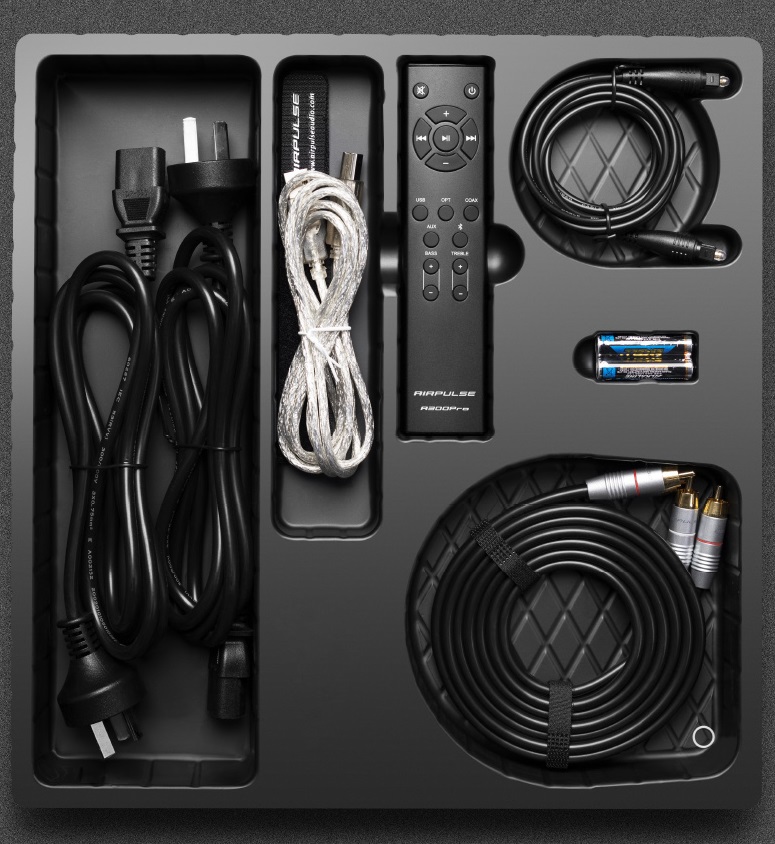

AIRPULSE    A300 PRO                                                                                                         Prezzo   €.  1.680,00

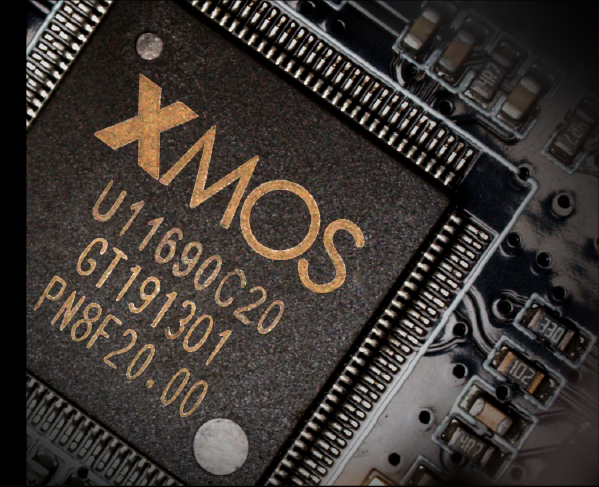

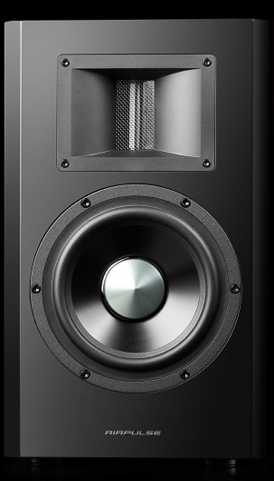

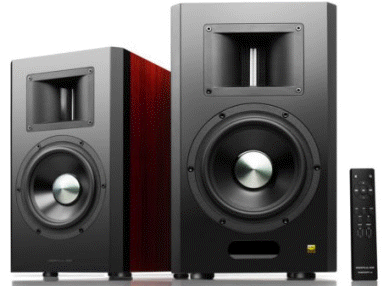

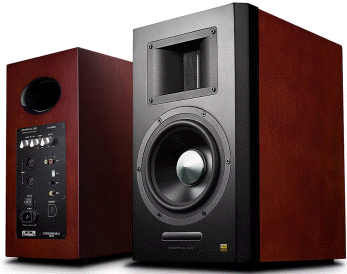

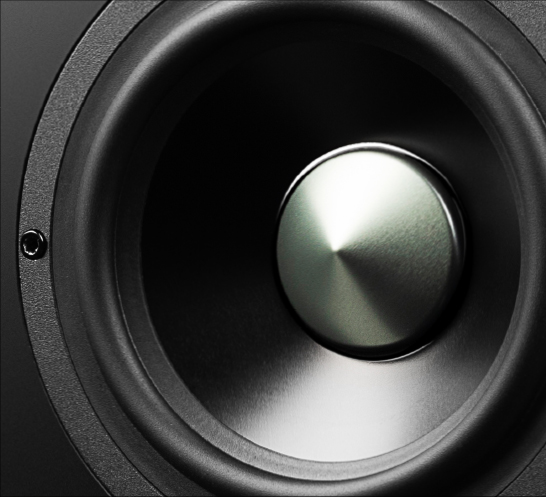

The cabinet of A300Pro is finished with a conservatively elegant walnut wood veneer. Sonically, it has the same horn-loaded aluminum ribbon tweeter but improved 6.5-inch aluminum cone, low distortion woofer in the A300. The power supply and amplifiers in the left and right speaker of the A300Pro is completely symmetrical. Each speaker has an internal 150W high-efficiency, low-ripple switching power supply. Using a Texas Instrument digital power amplifier TPA3251, each cabinet has woofer output power no less than 120W and tweeter output at 10W. The speakers also use XMOS xCore200 multi-core processor, and Texas Instruments’ TLV320AIC3268 digital processor. The interconnection of the left and right speaker uses KleerNet wireless transmission technology. It uses Qualcomm QCC3031 series 5.0 Bluetooth chipset and supports AptX HD high-fidelity codec, so that Bluetooth technology can be used with minimal signal loss. The A300Pro cabinet is constructed with 25MM high-strength MDF. To ensure best signal transmission, we also chose the renowned US based, TRANSPARENT internal speaker cables. DESIGN The A300Pro cabinet uses an inverted vent design. The elliptical shape inverted vent tube from precise calculation reduces aireflow noise and further improves sound quality. Cabinet Construction The construction of its 25mm thick high strength fiberboard cabinets with strategically placed internal bracing lay down the foundation for sound quality. The interior is also lined with a 36mm thick professional wave-absorbing material to enhance the absorption of excess standing waves. SOUND 6.5-INCH ALUMINUM DIAPHRAGM LOW DISTORTION MID-WOOFER A300Pro’s 6.5-inch woofer uses a high-strength magnesium-aluminum diaphragm and a costly UNDERHUNG magnetic circuit design. It is supported by a 50MM diameter voice coil and an oversized, high-energy magnet. Combined with a cleverly designed heat dissipation mechanism, this woofer has the lowest distortion and highest level of dynamics, delivering clean low frequencies that are richly detailed, and deeply extended. HORN LOADED RIBBON TWEETER Our unique design of horn-loaded aluminum ribbon tweeter in the A300Pro delivers to audience every corner of a wide space with airy and harmonically pleasing high frequency musical notes. This even distribution mode is not affected by the reflection characters of the room, so that the high frequency notes are more articulate and three-dimensional. Texas Instruments Besides the top-of-line audio front end components, the core signal processing is built on XMOS xCore200 multi-core processor and a DSP chip TLV320AIC3268 from Texas Instruments. Class D amplifiers used inside the speakers are Texas Instruments' top-of-line model TPA3251. Proprietary Synchronization Technology Wireless signal distribution between left and right speakers is built on the microchip’s proprietary technology known as KleerNet. The radio is transmitted over 5.2GHz and 5.8GHz spectrum, and with a 22MHz radio bandwidth the technology guarantees lossless transmission of audio signal. Besides the pair-used left-and-right wireless stereo using scenarios, the system offers an independent left and right configuration, just as traditional monitor speakers, which are often seen to be used with mixing consoles in recording studios. A300Pro features both a symmetrical acoustic and electrical design. Both left and right speakers are active. Bluetooth 5.0 with AptX The Bluetooth audio receiver is built with QCC3031 from Qualcomm, which is a Bluetooth V5.0 chipset with AptX HD high-fidelity codec. It can offer a much better audio playback experience than traditional Bluetooth SBC audio. A300Pro also offers a USB digital audio interface which supports UAC2 digital audio application. An ASIO audio drive is provided to enable Windows users to have a high-quality low latency signal path out. TRANSPARENT Speaker Cable No detail was left unattended in the A300Pro. We selected TRANSPARENT brand, a US made cable for internal connections to ensure maximum accuracy of signal transmission.  Take Control of Your Sound The A300Pro comes with a wireless remote control used for taking control of your sound. You can switch between inputs easily from the comfort of your seat. ACCESSORIES The dedicated ST300 stands are designed to be congruent with A300Pro speaker. They are recommended to be used with A300Pro to improve sound quality. SPECIFICATIONS Tweeter: Horn Loaded Ribbon Tweeter Mid-Woofer: 6.5 inch Aluminum Cone Underhung Design Mid-Woofer Amplifier System: Digital Amplifer With Xmos Processor Power Output: L/R(Treble):10W+10W, L/R(Woofer): 120W+120W Frequency Range: 40Hz-40KHz Signal-Noise Ratio: L/R: ≥90dB(A) Input Mode: AUX, USB, Optical, Coaxial, Bluetooth. Balance Input, Unbalance Input Input Sensitivity: Balanced:1100±50mV, Unbalanced: AUX:700±50mV, USB:550±50mFFs, Optical:500±50mFFs Coaxial:500±50mFFs, Bluetooth:500±50mFFs Main Voltage: 100-240 V AC/50-60 Hz Cabinet Size: (WxHxD) 225 x 385 x 350mm Net Weight: 25.6Kg (56.6 lbs) Gross Weight: 29.4Kg (65 lbs)


Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

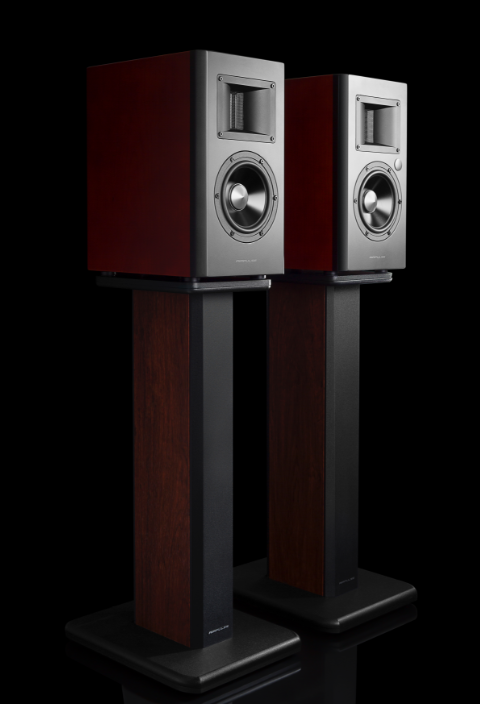

AIRPULSE   ST200                                                                                                         Prezzo   €.  160,00

Supporti  da  pavimento   per  A200  dimensioni:283 mm L x650 mm A x 350 mm P x  ppeso  15.1 kg



AIRPULSE   ST300                                                                                                         Prezzo   €.  200,00

Supporti  da  pavimento   per  A300  dimensioni:320 mm L x660 mm A x 400 mm P x  ppeso  18,8 kg

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it



 Legenda istruzioni

Clicca per qui per vedere :  FOTO PRODOTTO

Clicca per qui per vedere :  ISTRUZIONI PRODOTTO

Clicca per qui per vedere :  CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO


Nota  bene *

Per ordinare o avere gli ultimi prezzi aggiornati telefona al  0174 670100 o invia un E-mail a   info@newaudio.it

*I prezzi indicati  sono  di  listino  ufficiale  delle case produttrici ,nel  caso  di  diffusori  si  riferisce al prezzo  del  singolo  diffusore  per  offerte  ed  eventuali  promozioni  telefonare o  inviare e-mail.

*Il presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i prezzi indicati  possono variare senza preavviso telefonare o inviare un e-mail per ulteriori domande e conferme sui prezzi sopra riportati.

*Tutti i marchi citati nel presente listino sono di proprietà e registrati alle rispettive Case Produttrici

*Prezzi franco nostro magazzino
