ICE (Immersive Cinema Experience) Premium quality residential cinema loudspeakers build for the realistic movie soundtrack reproduction. Robust, heavily braced cabinets, hi-fi audio grade crossover components and best drivers from the world’s famous manufacturers guarantee clear sound and powerful impact. ICE – is the installers friendly loudspeakers with many comfort and safety features: professional grade gold plated push terminals, rear cable channel for close to wall placement, light absorbing soft touch coating, steel secure ring and some others.

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

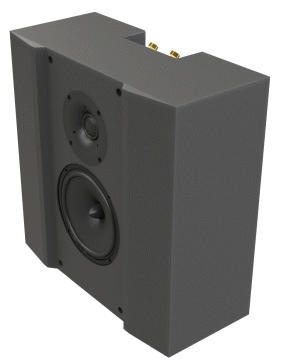

ICE S6.1                                                                Listino  ufficiale  €.     935,00 +iva

Description ICE S 6.1 is the high output compact size loudspeaker designed for behind the screen or behind the acoustic wall installation. Can be used as main and surround speaker in medium size home theatres. ICE S 6.1 is perfect as an immersive audio format upper channel Features 1/ Steel secure ring with 7 mm pin for safe installation process and operation 2/ All cabinet parts are bolt tied 3/ Professional grade gold plated push terminals 4/ Rear cable channel for close to wall placement 5/ M6 holes for VESA200 wall mount 6/ Light absorbing soft touch coating Specifications Nominal impedance 8 Ohms Power handling capacity Continuous 60 W (IEC 268 – 5) Peak 120 W (IEC 268 – 5) Sensitivity 89dB (1m/1W) Maximum SPL 110dB continuous, 116dB peak (1/8 space, 1m ) Frequency response 70Hz - 20kHz ( 3dB) Crossover 2th Order, 2.1kHz , 80Hz subwoofer crossover point. Audiophile grade components and point to point wiring Drivers Midrange High output 165 mm driver with 32 mm voice coil. High Frequency 30 mm fabric tweeter with waveguide Cabinet 18L sealed box made of high quality MDF internally braced. Light absorbing black soft touch coating Dimensions (HxWxD) 400 x 400 x 145 mm Weight 9 kg

ICE S6.2                                                                Listino  ufficiale  €. 1.192,00 +iva

Description  ICE S 6.2 is the high output loudspeaker designed for behind the screen or behind the acoustic wall installation. Can be used as main and surround speaker in medium size home theatres. Setting up with the ICE 6.1 speakers, the 6.2 can be used as screen channel in medium or small size rooms Features 1/ Steel secure ring with 7 mm pin for safe installation process and operation 2/ All cabinet parts are bolt tied 3/ Professional grade gold plated push terminals 4/ Rear cable channel for close to wall placement 5/ M6 holes for VESA200 wall mount 6/ Light absorbing soft touch coating Specifications Nominal impedance 4 Ohms Power handling capacity Continuous 120 W (IEC 268 – 5) Peak 240 W (IEC 268 – 5) Sensitivity 92dB (1m/1W) Maximum SPL 114dB continuous, 120dB peak (1/8 space, 1m ) Frequency response 70Hz -20kHz (-3dB) Crossover 2th Order, 2.1kHz, 80Hz subwoofer crossover frequency. Audiophile parts and point to point soldering are used Drivers Midrange High output 2x165 mm drivers with 32 mm voice coils High Frequency 30 mm fabric tweeter with waveguide Cabinet 28L sealed box made of quality MDF, internally braced. Light absorbing black soft touch coating Dimensions (HxWxD) 600 x 400 x 165 mm Weight 13,5 kg

ICE S8.1                                                                Listino  ufficiale  €. 1.592,00 +iva

Description ICE S 8.1 is the premium quality high output loudspeaker designed for behind the screen or behind the acoustic wall installation. Can be used as main and surround speaker in spacious home theatres. Setting up with ICE 6.1 speakers, the 8.1 can be used as screen channels in medium size rooms Features 1/ Steel secure ring with 7 mm pin for safe installation process and operation 2/ All cabinet parts are bolt tied 3/ Professional grade gold plated push terminals 4/ Rear cable channel for close to wall placement 5/ M6 holes for VESA200 wall mount 6/ Light absorbing soft touch coating Specifications Nominal impedance 8 Ohms Power handling capacity Continuous 150 W (IEC 268-5) Peak 300 W (IEC 268-5) Sensitivity 87dB (1m/1W) SPL 109dB continuous, 115dB peak (1/8 space, 1m ) Frequency response 70Hz - 20kHz (-3dB) Crossover 2th Order, 2.2kHz. 80Hz subwoofer crossover frequency. Audiophile parts and point to point soldering Drivers Midrange 200 mm driver with 39 mm voice coil High Frequency 25 mm driver with a CTA diaphragm, elliptical constant directivity wave guide 90°H x 60°V from 1.5kHz (-6dB) Cabinet 23L sealed box made of high quality MDF, internally braced. Light absorbing black soft touch coating. Dimensions (HxWxD) 440 x 460 x 190mm Weight 13 kg

ICE S8.2                                                                Listino  ufficiale  €. 2.492,00 +iva

Description ICE S 8.2 is the premium quality high output loudspeaker designed for behind the screen or behind the acoustic wall installation. Can be used as main and surround speaker in spacious home theatres. Alongside with ICE 8.1, 6.1 speakers, the ICE S 8.2 can be used as screen channels in the medium size set ups Features 1/ Steel secure ring with 7 mm pin for safe installation process and operation 2/ All cabinet parts are bolt tied 3/ Professional grade gold plated push terminals 4/ Rear cable channel for close to wall placement 5/ M6 holes for VESA200 wall mount 6/ Light absorbing soft touch coating Specifications Nominal impedance 4 Ohms Power handling capacity Continuous 300 W (IEC 268-5) Peak 600 W (IEC 268-5) Sensitivity 90dB (1m/1W) SPL 116dB continuous, 122dB peak (1/8 space, 1m) Frequency response 70Hz – 20kHz ( 3dB) Crossover 2th Order, 2.2 kHz. 80Hz subwoofer crossover frequency Audiophile parts and point to point soldering Drivers Midrange 2x200 mm drivers with 39 mm voice coils High Frequency 25 mm driver with a CTA diaphragm, elliptical constant directivity ( 6dB 90°H x 60°V from 1.5 kHz) wave guide Cabinet 38L sealed cabinet made of high quality MDF, internally braced. Light absorbing black soft touch coating Dimensions (HxWxD) 650 x 460 x 190 mm Weight 19 kg


Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it


ICE 12.1P                                                               Listino  ufficiale  €. 1.492,00 +iva

Description 12” passive subwoofer designed for behind the screen or acoustic wall installation. Recommended for small to mid-size rooms. Can be used as an additional subwoofer together with the ICE 15.2P in multiple subwoofer installation Features 1/ 2 steel secure rings with 7 mm pin for safe installation process and operation 2/ All cabinet parts are bolt tied 3/ Professional grade gold plated push terminals in parallel with Neutrik Speakon connectors 4/ Back and front terminals. “Cabinet through” cable tunnel for front terminal access 5/ Rear cable channel for close to wall placement 6/ Just 230 mm in depth cabinet Specifications Nominal impedance 8 Ohms Power handling capacity Continuous 350 W (AES) Peak 700 W (AES) Sensitivity 92dB (1m/1W) SPL 115dB continuous, 121dB peak (1/8 space, 1m), maximum output: 121dB @ 50 Hz Frequency response 36Hz (- 3dB) Drivers 300 mm long-throw driver with 76 mm voice coil Cabinet 68L sealed box made of premium quality Baltic birch plywood internally cross braced. Black structured painting Dimensions (HxWxD) 800 x 550 x 230 mm (height with damping feet 810 mm) Weight 24 kg

ICE 12.2P                                                               Listino  ufficiale  €. 1.872,00 +iva

Description 12” subwoofer with 12” front firing passive radiator. Shallow cabinet for behind the screen oracoustic wall installation. Recommended for small to mid-size room Features 1/ 2 steel secure rings with 7 mm pin for safe installation process and operation 2/ All cabinet parts are bolt tied 3/ Professional grade gold plated push terminals in parallel with Neutrik Speakon connectors 4/ Back and front terminals. “Cabinet through” cable tunnel for front terminal access 5/ Rear cable channel for close to wall placement 6/ Just 230 mm in depth cabinet Specifications Nominal impedance 8 Ohms Power handling capacity Continuous 350 W (AES) Peak 700 W (AES) Sensitivity 92dB (1m/1W) SPL 115dB continuous, 121dB peak (1/8 space, 1m) Maximum output 121 dB @ 50 Hz Frequency response 28Hz (-3dB) Drivers 300 mm long-throw driver with 75 mm voice coil and 300 mm passive radiator Cabinet 86L bass reflex enclosure with front firing radiator Cabinet is made of premium quality Baltic birch plywood internally cross braced. Black structured painting Dimensions (HxWxD) 1100 x 550 x 230 mm (height with damping feet 1110 mm) Weight 30,5 kg

ICE 15.2P                                                               Listino  ufficiale  €. 3.295,00 +iva

Description Powerful bass-reflex subwoofer designed for mid to large –size rooms. ICE 15.2 cabinet is just 300 mm in depth for behind the screen installation Features 1/ 2 steel secure rings with 7 mm pin for safe installation process and operation 2/ All cabinet parts are bolt tied 3/ Professional grade gold plated push terminals in parallel with Neutrik Speakon connectors 4/ Back and front terminals. “Cabinet through” cable tunnel for front terminal access 5/ Rear cable channel for close to wall placement 6/ Just 300 mm in depth cabinet Specifications Nominal impedance 4 Ohms Power handling capacity Continuous 1400 W (AES) Peak 2800 W (AES) Sensitivity 98dB (1m/1W) SPL 128dB continuous, 134dB peak (1/8 space, 1m ) maximum output 128 dB @ 40 Hz Frequency response 28Hz ( 3dB) Drivers 2x 380 mm long-throw drivers with 100 mm voice coils Cabinet 236L bass reflex enclosure made of premium quality Baltic birch plywood, internally braced. Black structured painting Dimensions (HxWxD) 1000 x 1000 x 300 mm (height with damping feet 1010 mm) Weight 76 kg









ICE D 4.2                                                             Listino  ufficiale  €.,00 +iva

Specifications Nominal impedance: 4 Ohms Power handling: Continuous 60 W (IEC 268-5) Peak 120 W (IEC 268-5) Frequency response: 70 Hz - 20 kHz (-3 dB) SPL: 108 dB continuous, 117 dB peak (1/8 space,1m ) Dimensions (HxWxD): 300 x 308 x 184 mm
